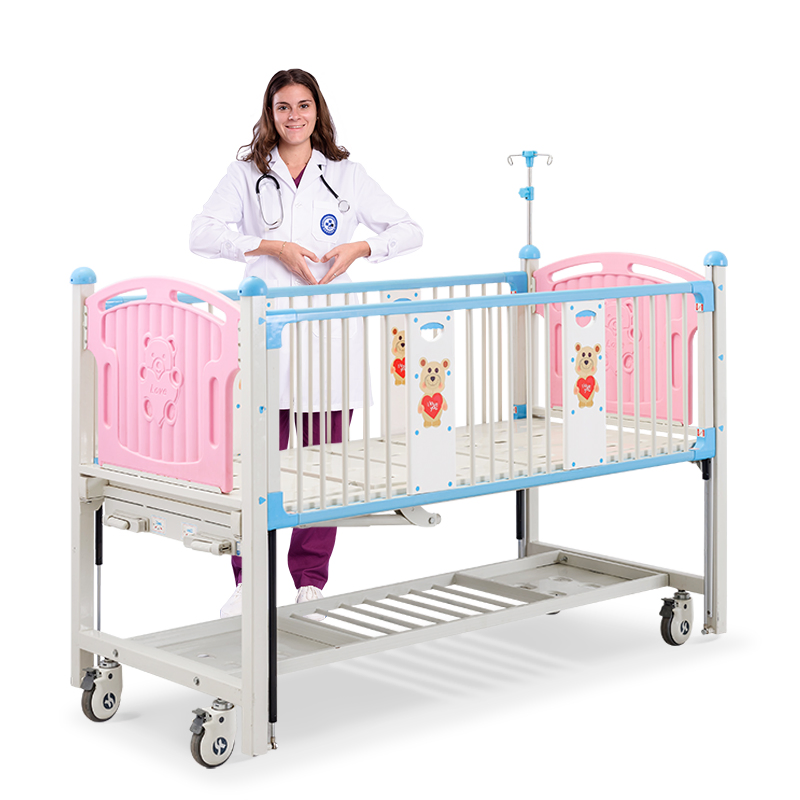

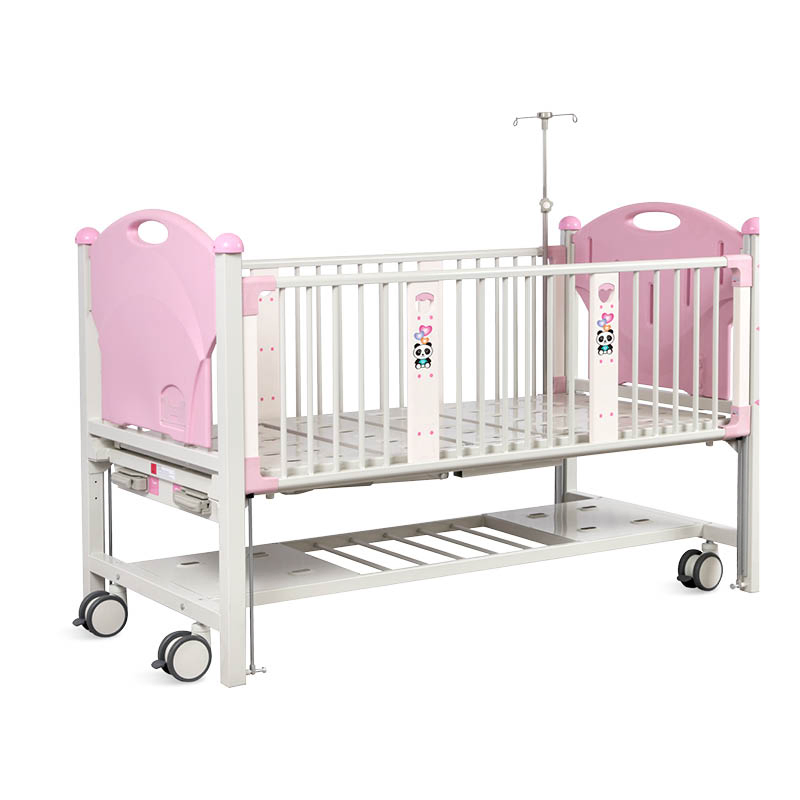

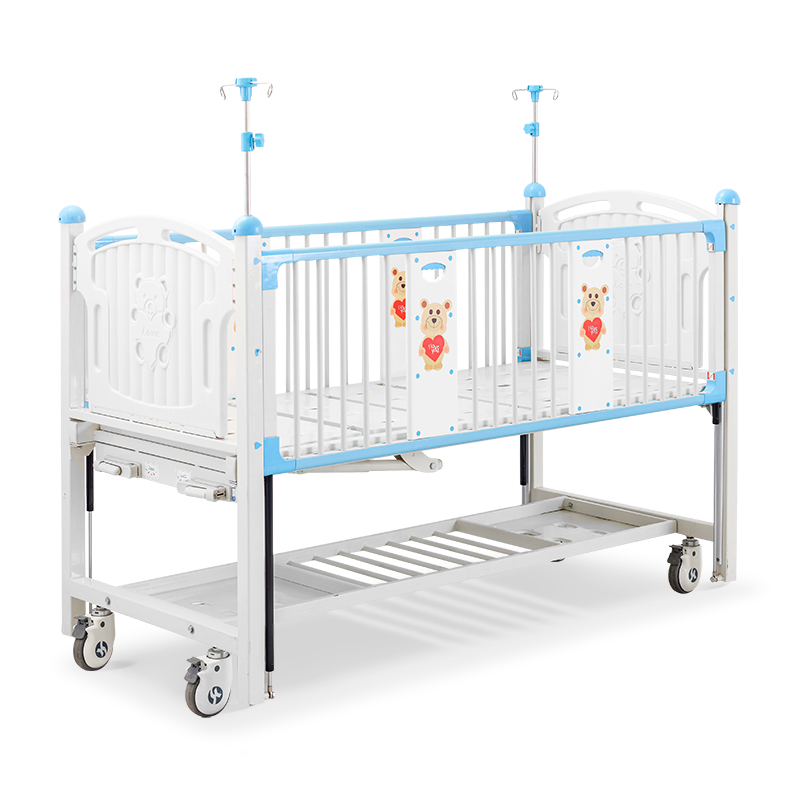

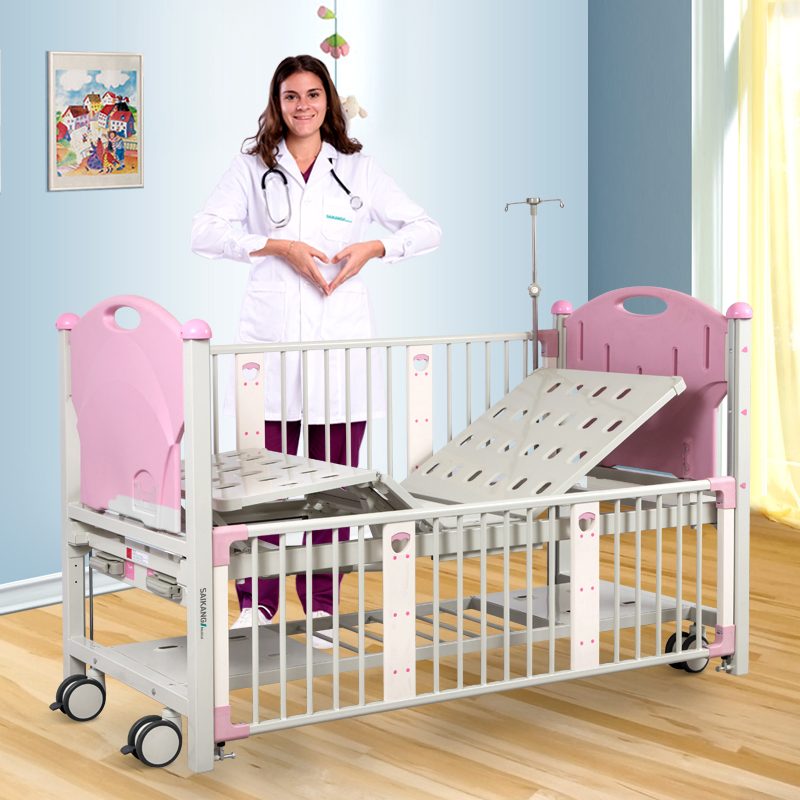

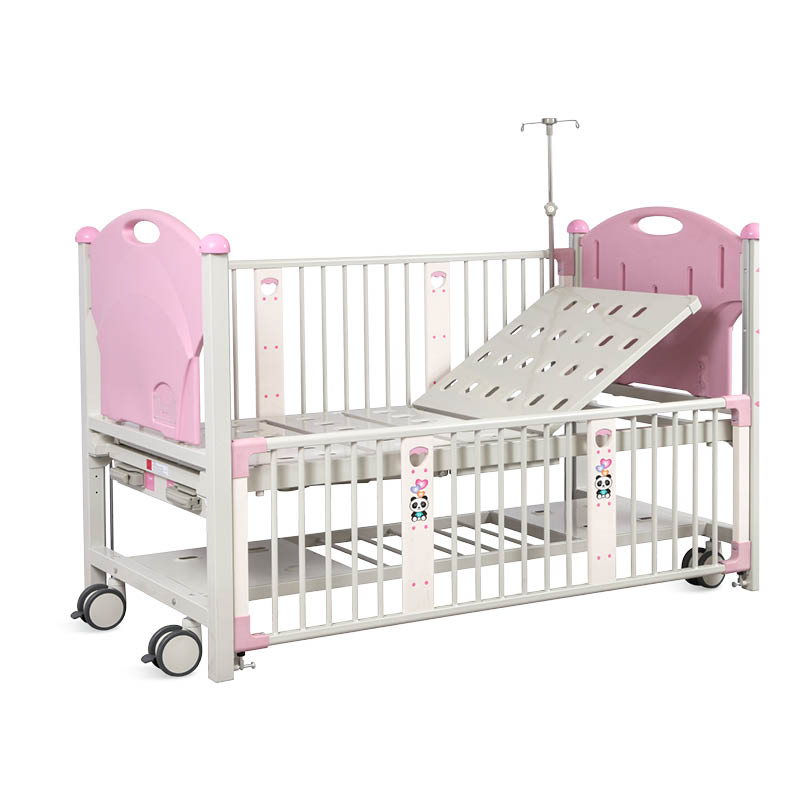

Cx2X Casters 2 Cranks 2 Function Newborn Medical Crib Adjustable Manual Nursing Babies Pediatric Bed

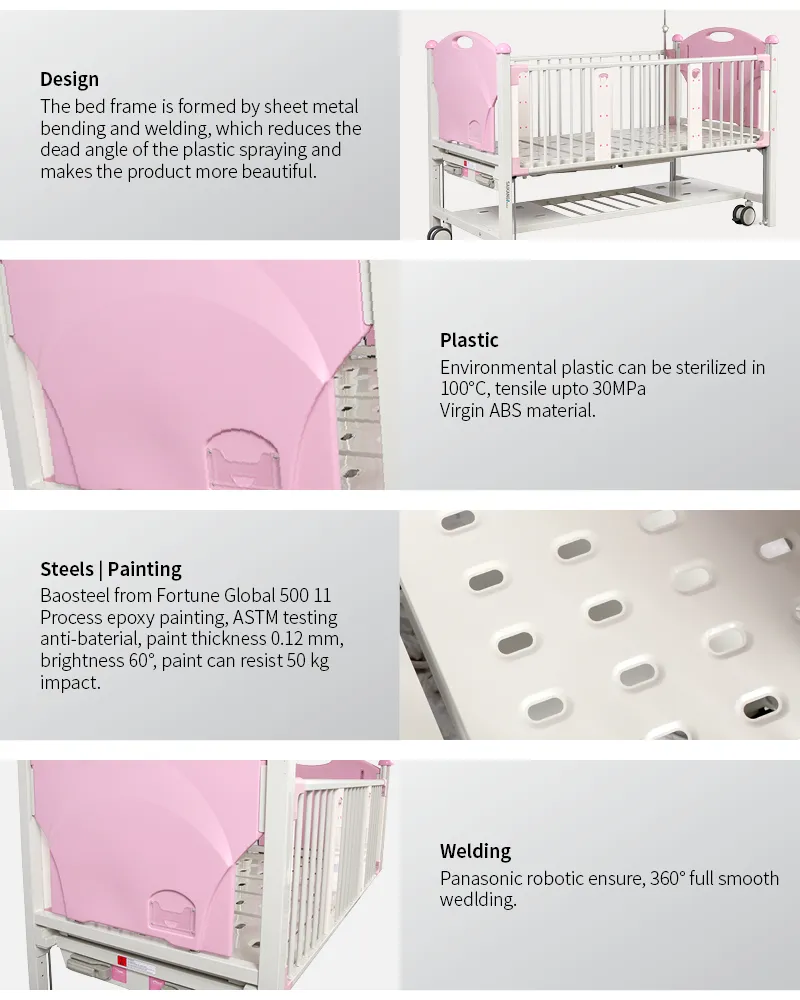

The bed frame is formed by sheet metal bending and welding, reducing dead angles for plastic spraying. Features environmental plastic sterilizable at 100°C, tensile up to 30MPa using Virgin ABS material.
Baosteel steel with 11 Process epoxy painting. ASTM tested anti-bacterial coating (0.12mm thickness, 60° brightness), resistant to 50kg impact.
Panasonic robotic ensures 360° full smooth welding for maximum structural integrity and safety.

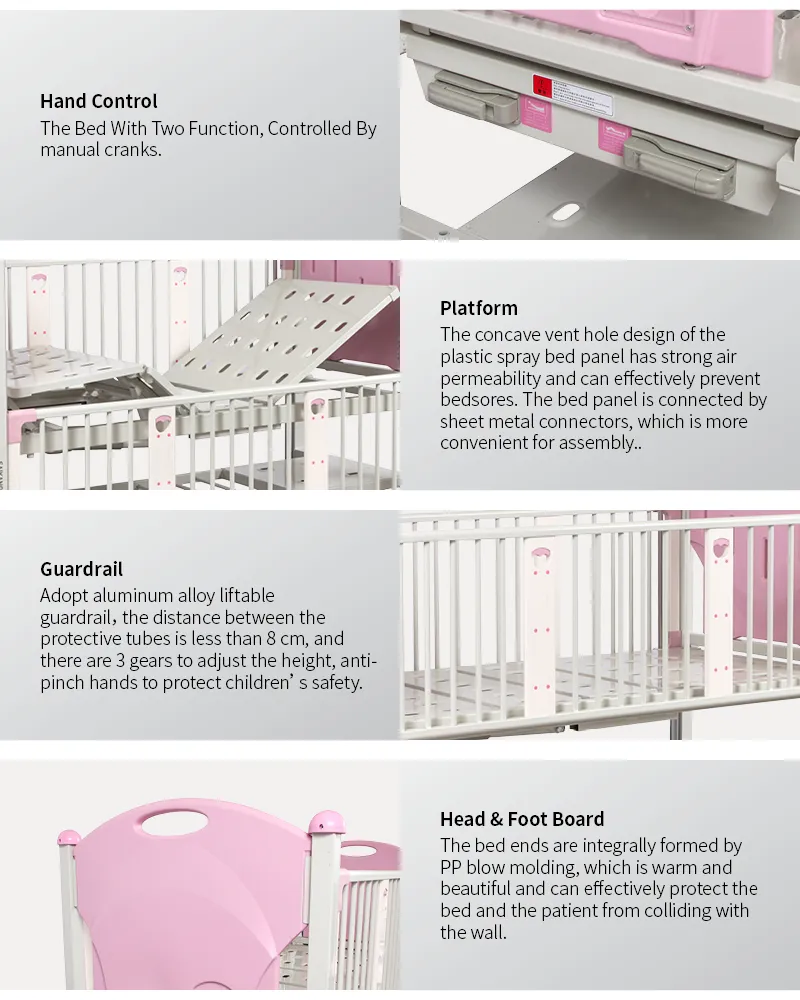

Aluminum alloy liftable guardrail with tube distance less than 8cm. Includes 3 adjustable height gears and anti-pinch design for child safety.
Concave vent holes for air permeability to prevent bedsores. Integrated PP blow molding head & foot boards protect patients from wall collisions.

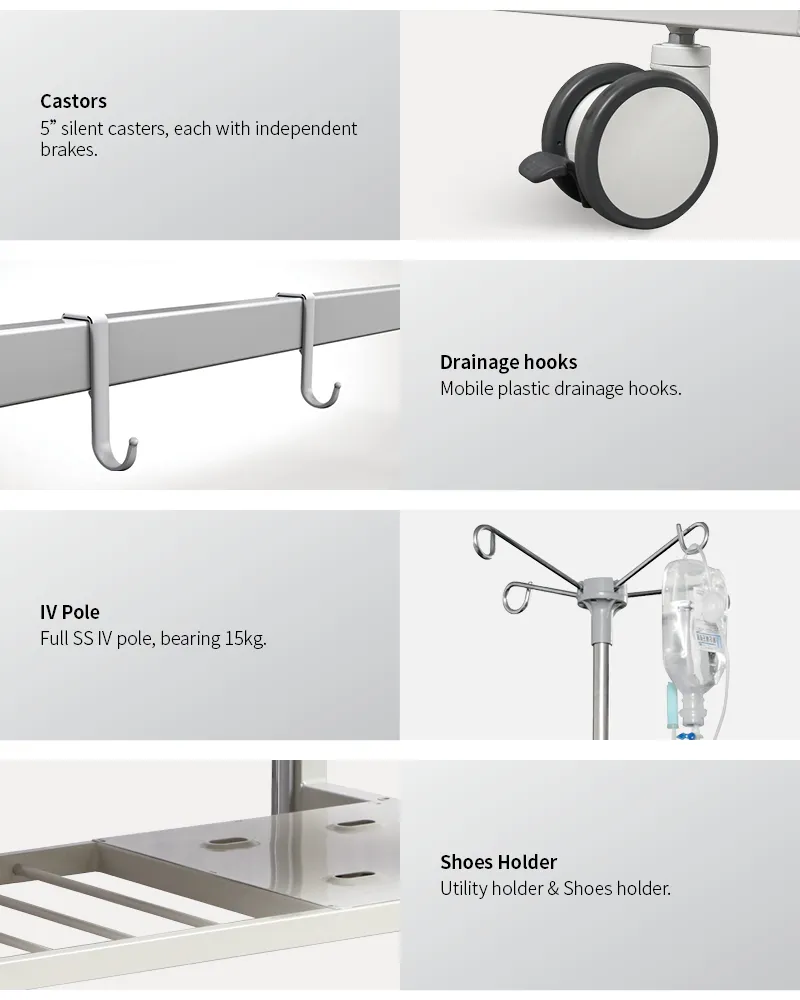

5" silent casters with independent brakes. Includes stainless steel IV pole (15kg capacity), drainage hooks, and utility/shoes holder.
| Parameter | Category / Details |
|---|---|
| Model | CX2x |
| External L*W*H | 1880*900*1260mm |
| Bed Height | 585mm |
| Mattress Platform | 1770*720mm |

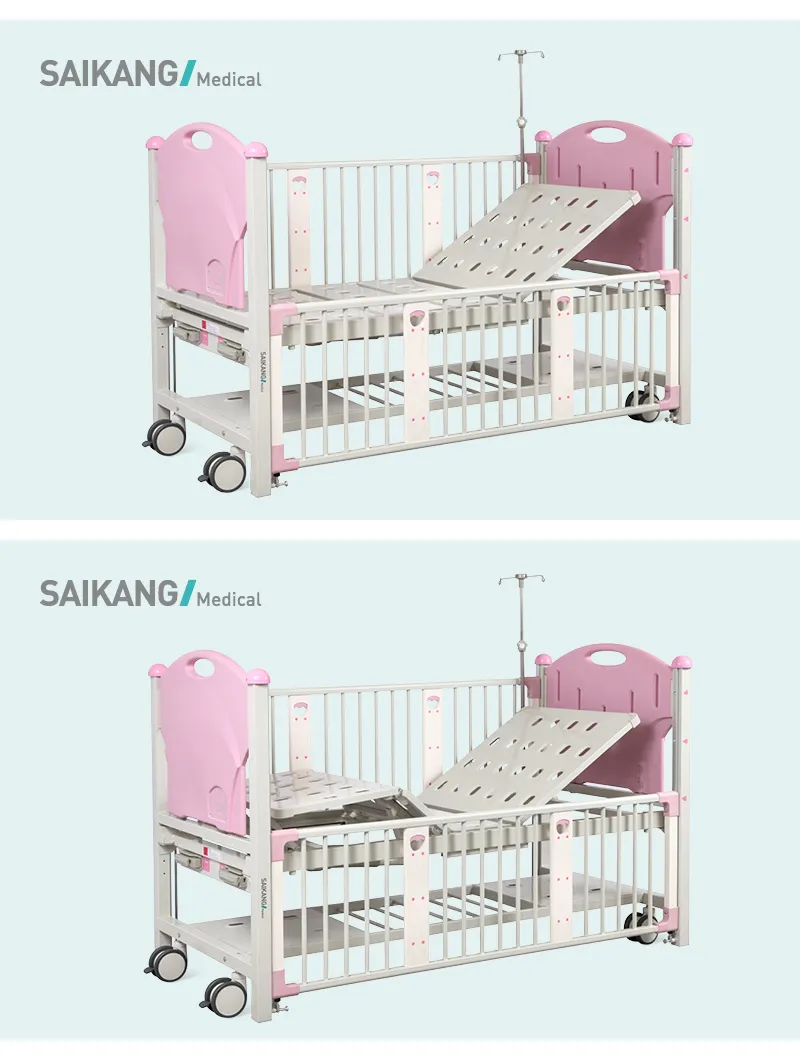

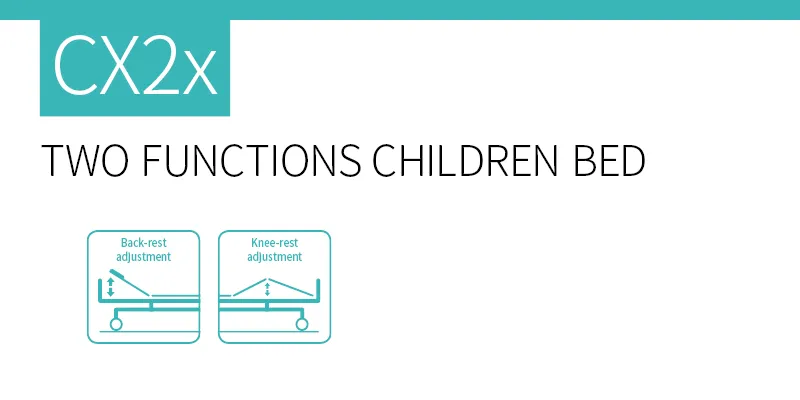

| Back-rest Adjustment | 0-75°(±10°) |
| Knee-rest Adjustment | 0-35°(±10°) |
| Manual Cranks | 2pcs |
| 5" Covered Castors | 4pcs |
| Full Length Side Rail | 1set |
| Bed Ends | Plastic with Cartoon Bear |
| IV Pole Prevision | 4pcs |
| Buffer Air Spring | 4pcs |
