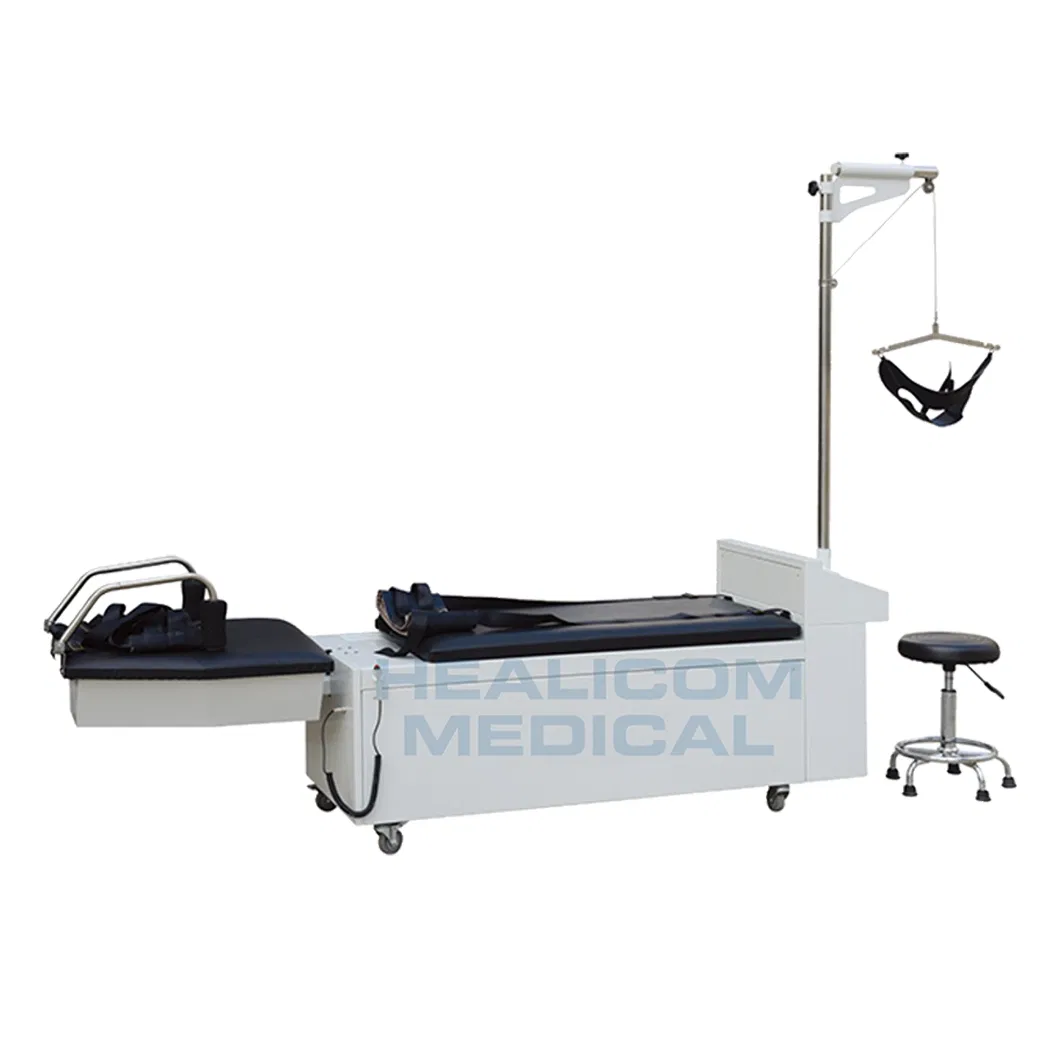

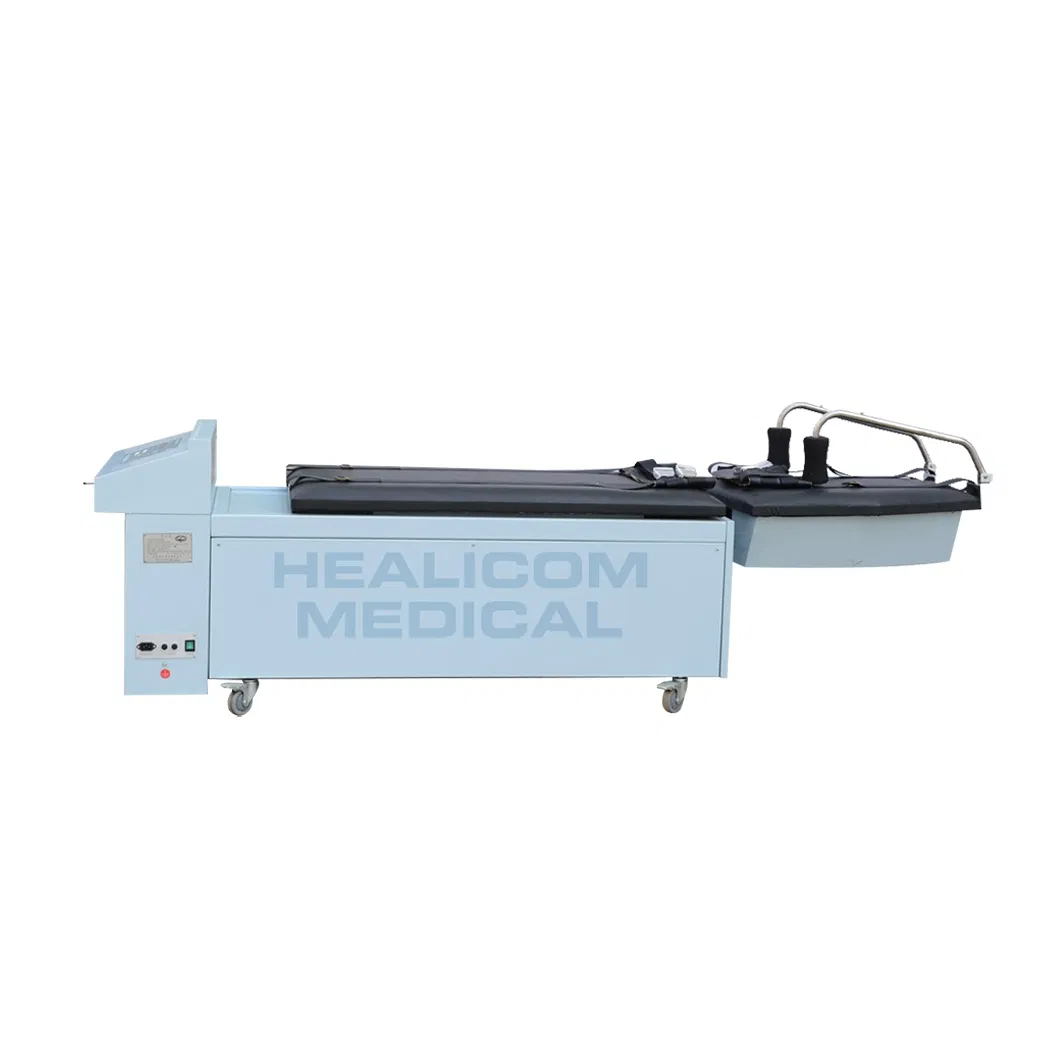

Good Physical Therapy Medical Rehabilitation Equipment Traction Bed

1 / 2

Good Physical Therapy Medical Rehabilitation Equipment Traction Bed

Customization:	Available
Type:	Orthopedics
Theory:	Electric

Send Inquiry

Product Description

📋

Basic Information

Model NO.

HDQ-02B

Certification

CE, ISO13485

LCD Display

Without LCD Display

Group

Adult

Power

360VA

Lumbar Traction Stroke

0~200 mm

Neck Traction Stroke

0~250 mm

Intermittent Time

0~90 Seconds

Transport Package

Wooden Case

Production Capacity

1000PCS/Month

🛠️

Product Description

HDQ-02B Medical Physical Therapy Rehabilitation Equipments Traction Bed

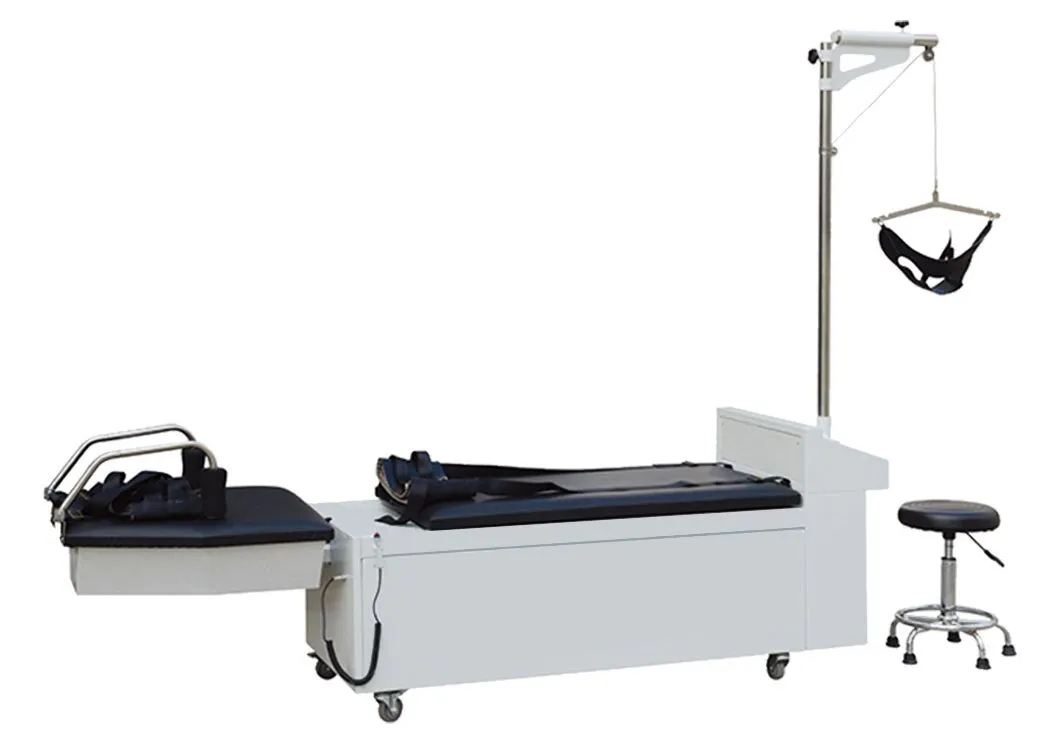

Medical Rehabilitation Equipment Traction Bed

1. Scope of Application:
This product is designed for the treatment of cervical spondylosis and lumbar spondylosis. It features multiple traction modes including continuous, gap, angulation, and swing, all controlled by precise microcomputer software. Both lumbar and cervical spine can be treated simultaneously, with safety monitoring protocols to protect the patient during the procedure.

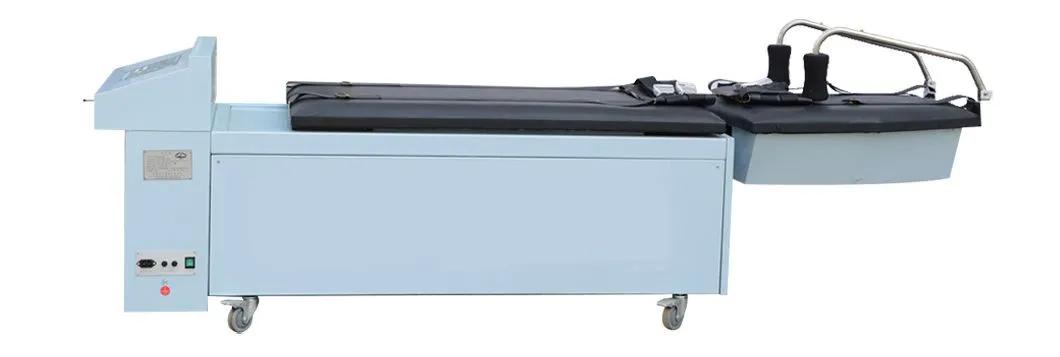

2. Main Structure:
The system consists of a digital display console, a robust traction bed, and a dedicated cervical vertebra traction frame.

3. Technical Parameters:

Power Supply	220V/50HZ
Power	360VA
Traction Force	Waist: 10~970 N \| Neck: 10~294 N
Total Traction Time	1~60 minutes
Continuous Traction Time	0~9 minutes
Intermittent Traction Time	0~90 seconds
Lumbar Traction Stroke	0~200 mm
Neck Traction Stroke	0~250 mm
Angular Angle	-5°±2° to 28°±2°
Swing Angle	-25° to 25°±2°

4. Operating Performance:

Lumbar traction function: straight traction up to 200mm stroke and 970N force.
Cervical traction function: up to 250mm stroke and 294N automatic force.
Comprehensive system featuring eight distinct traction modes.
Dual emergency stop system: both doctor and patient can trigger an immediate reset for maximum safety.

5. Basic Configuration:

1 Main Bed

1 Set Neck Brace

1 Support Seat

1 Power Cord

2 Fuse Tubes

1 Emergency Button

2 Body Straps

🌟

Professional Exhibition & Quality

❓

Frequently Asked Questions

How does the price level compare to competitors?

We are confident that our prices are highly competitive at the same quality level, backed by over 20 years of experience in the medical field. We prioritize providing top-quality products with cost-effective solutions.

Why do some models look identical but have different prices?

While outward appearances may seem similar, differences often lie in internal components, material durability, and quality control standards. We use high-grade materials to ensure long-term clinical safety and performance.

What is the typical delivery time?

Orders are generally processed within 15 days of confirmation. For smaller or sample orders, we may have ready-to-ship stock available for immediate delivery.

What kind of quality assurance do you provide?

We offer a one-year warranty starting from the shipment date. We provide free spare parts for minor replacements and full unit replacements for serious technical issues.

What payment terms are accepted?

We accept a variety of payment methods including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram for your convenience.

Can the cervical and lumbar traction be used simultaneously?

Yes, the HDQ-02B model is designed to perform lumbar spine and cervical spine traction at the same time, controlled independently through the microcomputer interface.
