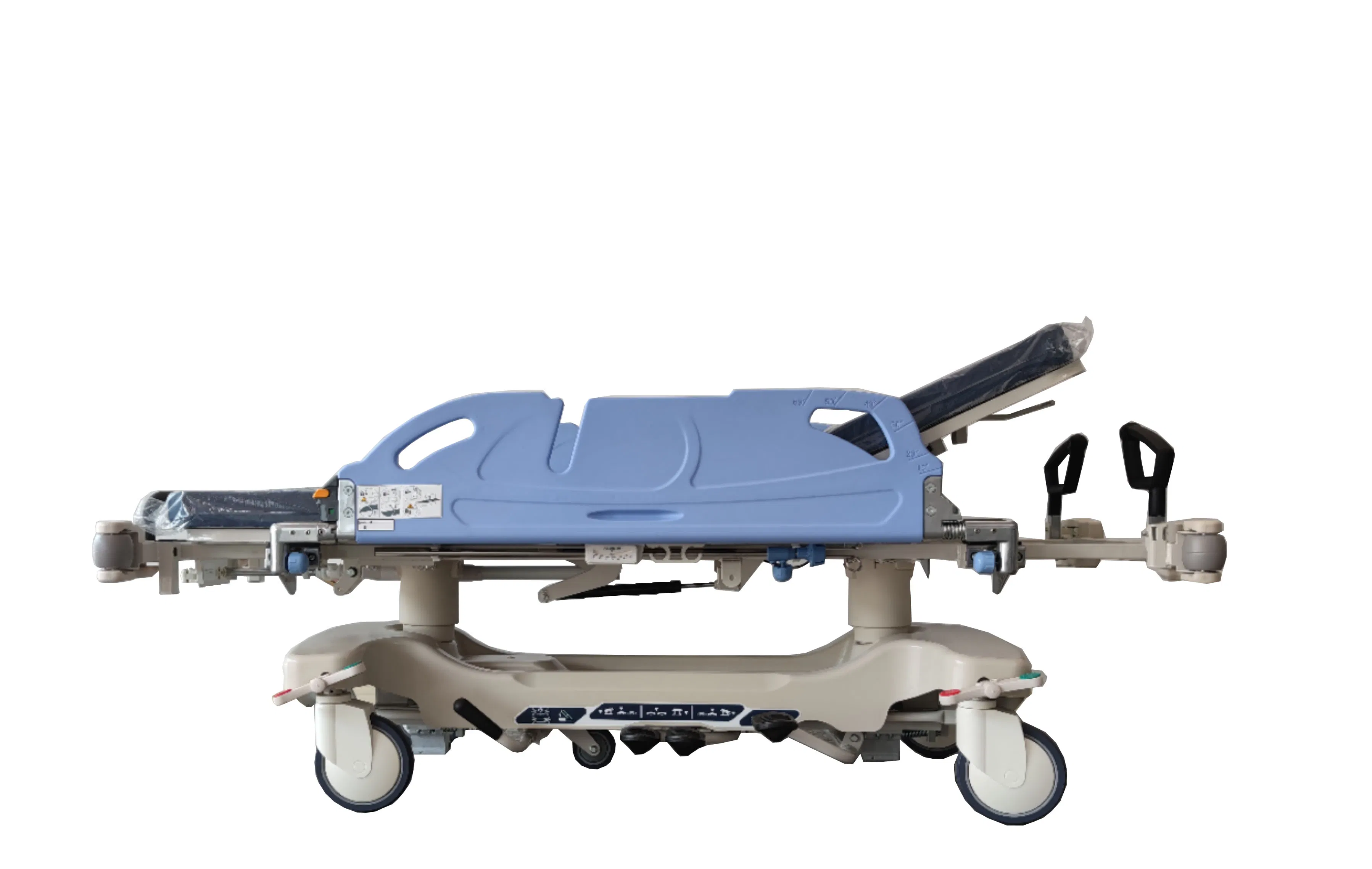

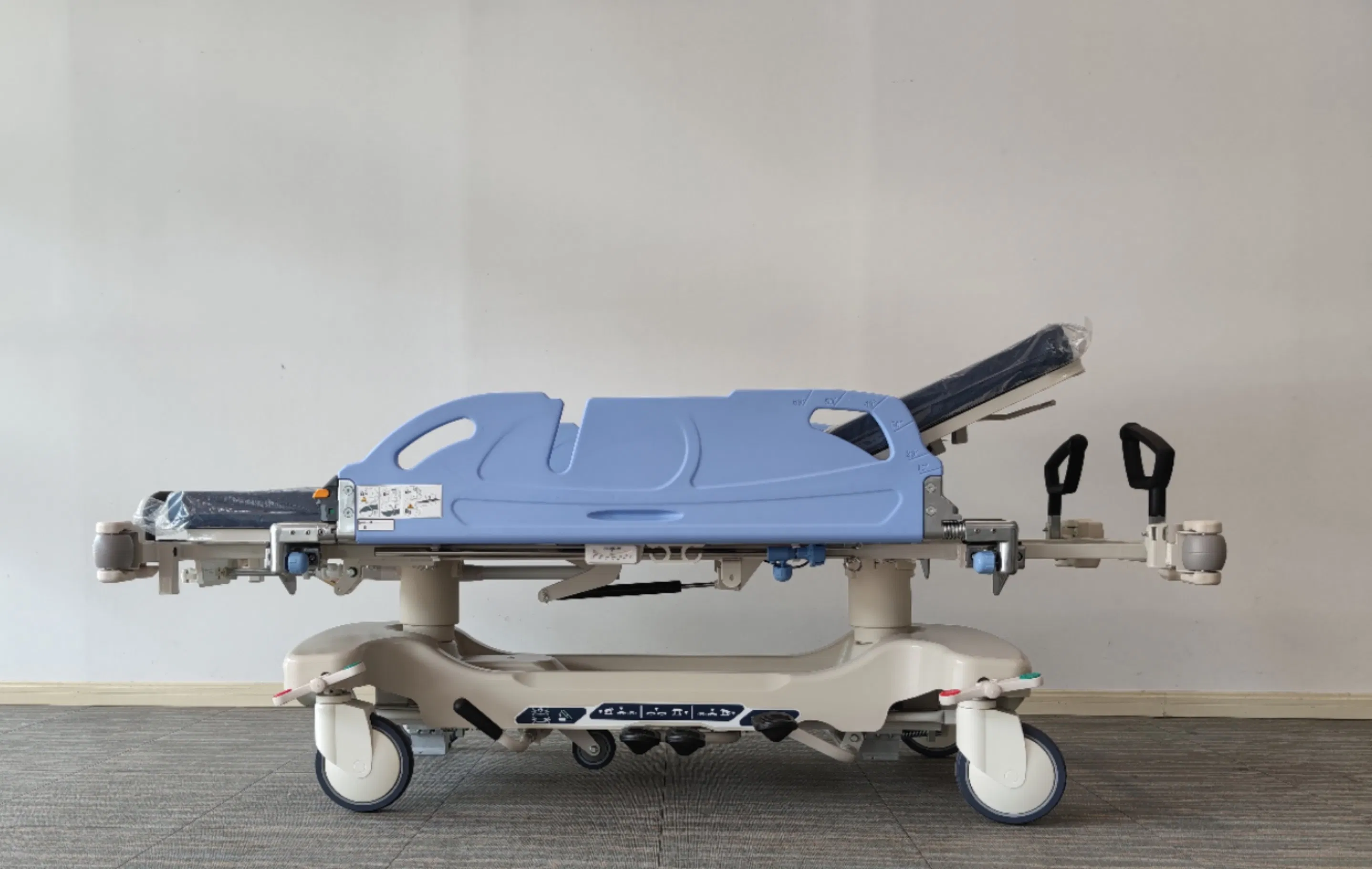

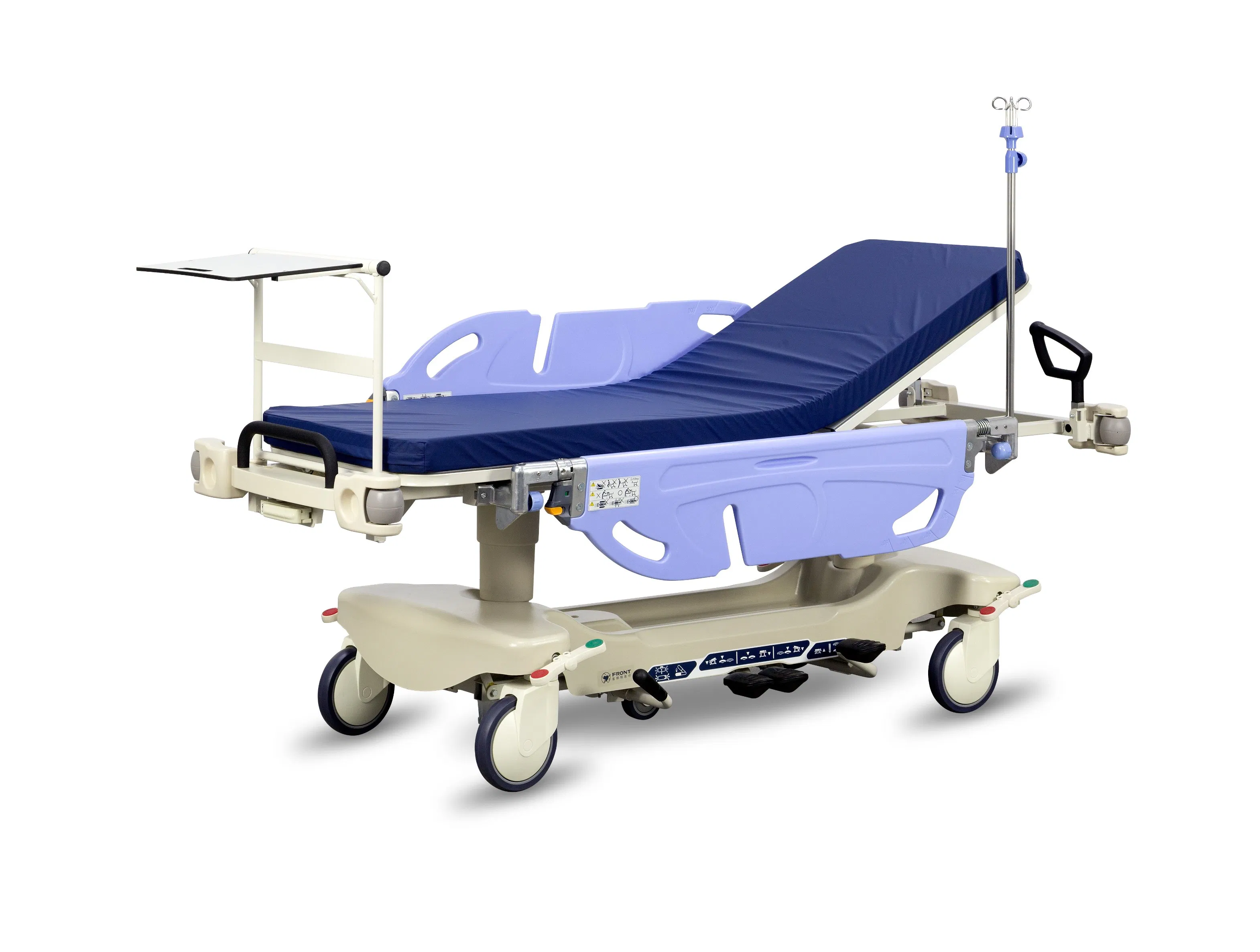

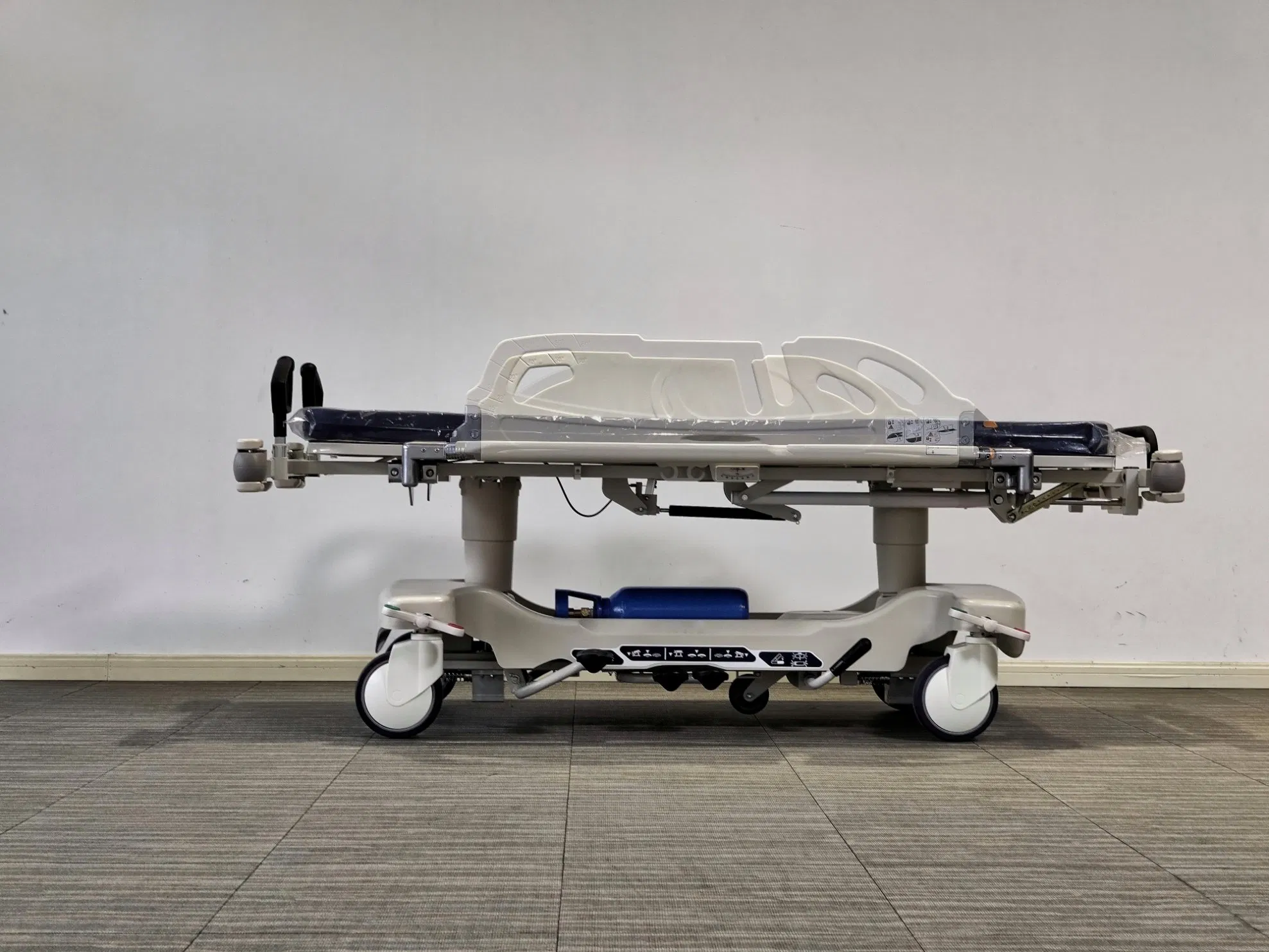

Model: RB-8A

• Total length 2150mm, full width 830mm; Bed board dimensions: 1880mm x 620mm.
• Adjustable height range: 560mm to 890mm; Backrest adjustment: 0 ~ 75°.
• Knee lift: 0 ~ 40°; Tilt adjustment: -18° ~ 18°.
• Safe working load: 220kg.

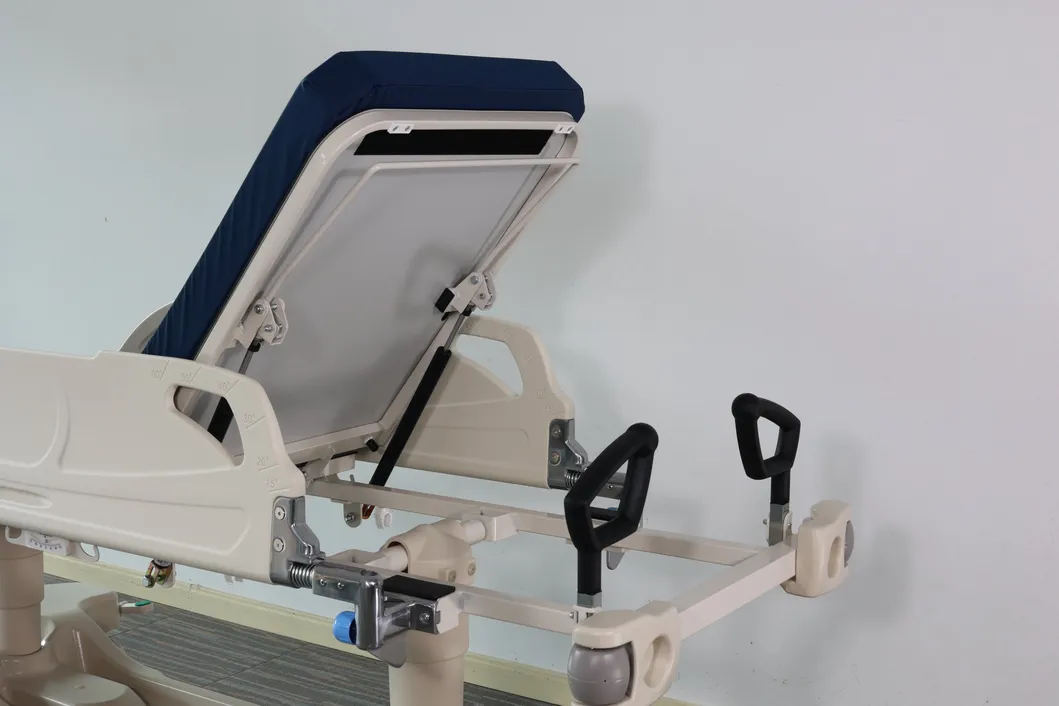

• Back lifting system: Controlled by silent double gas spring for stability.
• High and low lifting system: Imported oil cylinder control with ABS injection molding protection sleeves.
• Bed plate: Made of anti-Beite material, high strength and no deformation.
• Frame: High-quality steel elbow welding.

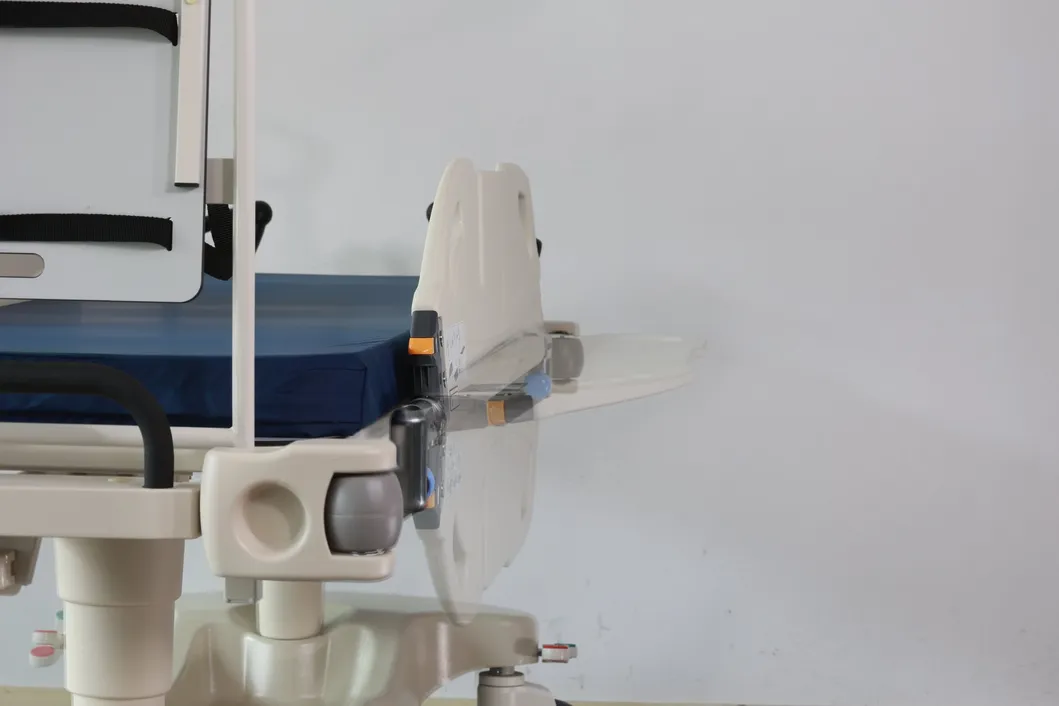

• Guardrail: PP resin molding on both sides (300mm height) with double safety locks.
• Integrated angle display on guardrails for precise nursing care.

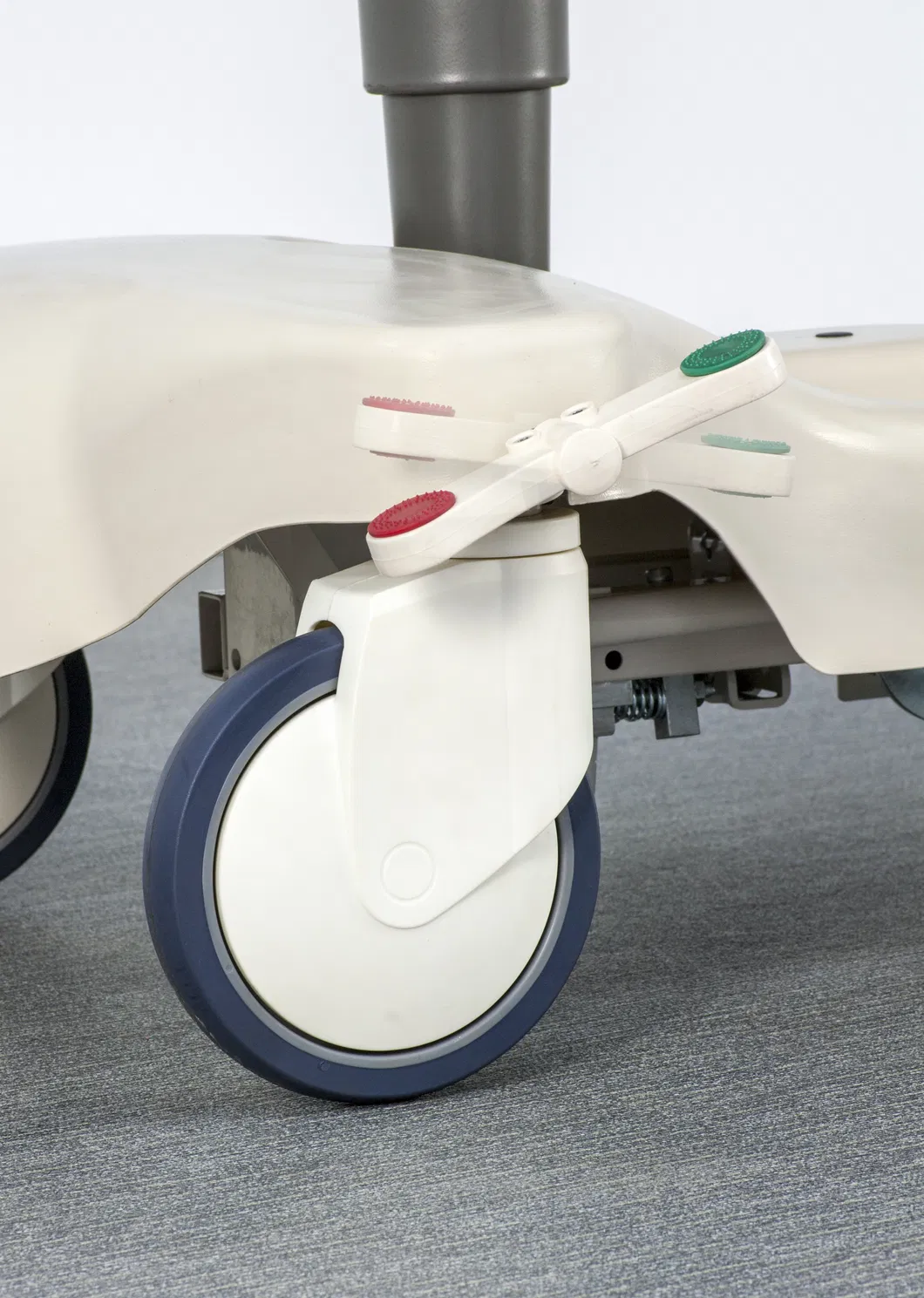

• Casters: Four 200mm diameter central locking casters with one-foot braking system.
• Central control brake linkage rod formed with integrated round tube.
• Independent central fifth wheel system for superior directional control during transport.

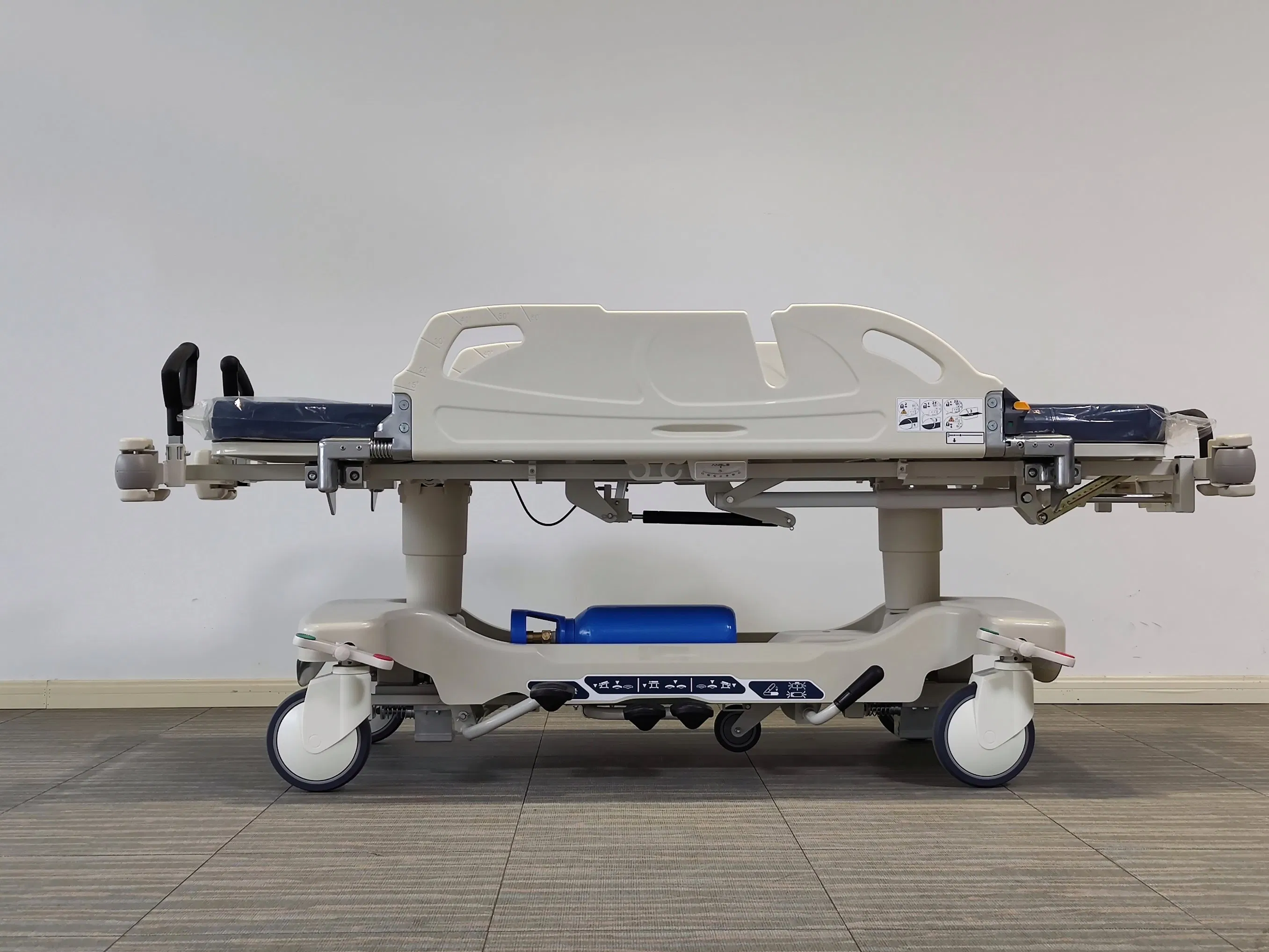

• Integrated tray under the bed for oxygen bottles (10kg capacity).
• Equipped with foldable infusion racks on both sides.
• Mattress: Waterproof, easy-to-clean fabric with 7cm comfortable sponge and zippers for washing.
• Anti-collision wheels and blocks around the bed for protective implementation.

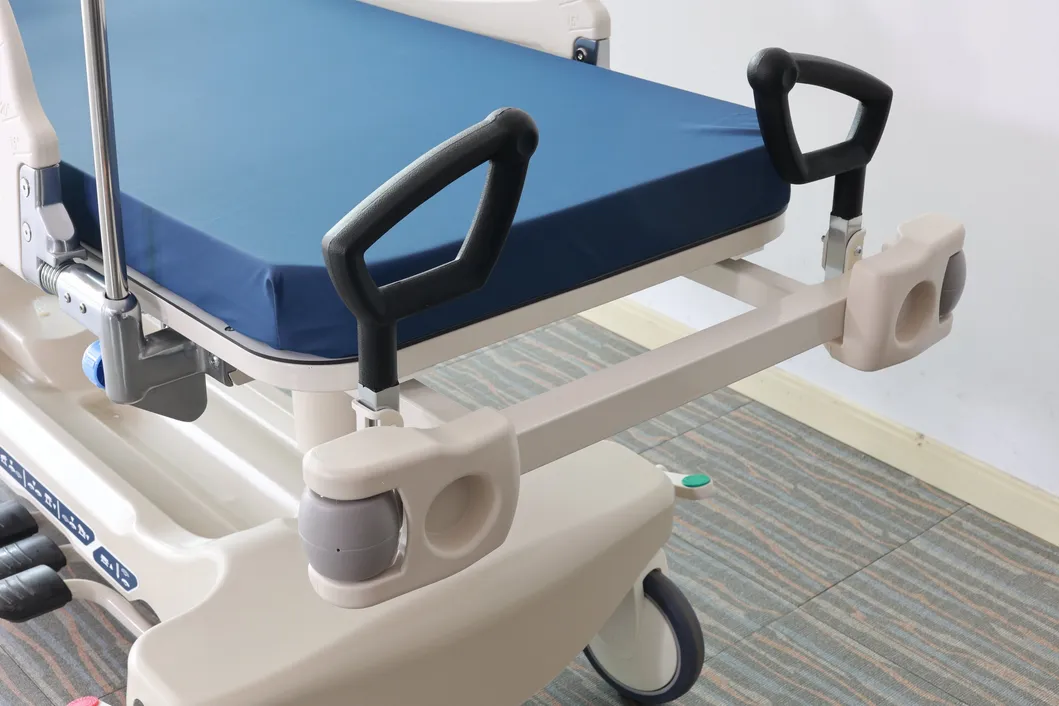

• Push handles: P-shaped head handle with foam grip and U-shaped end handle.
• Finish: Acid pickling, phosphating, electrophoresis, and double-layer powder spraying.
