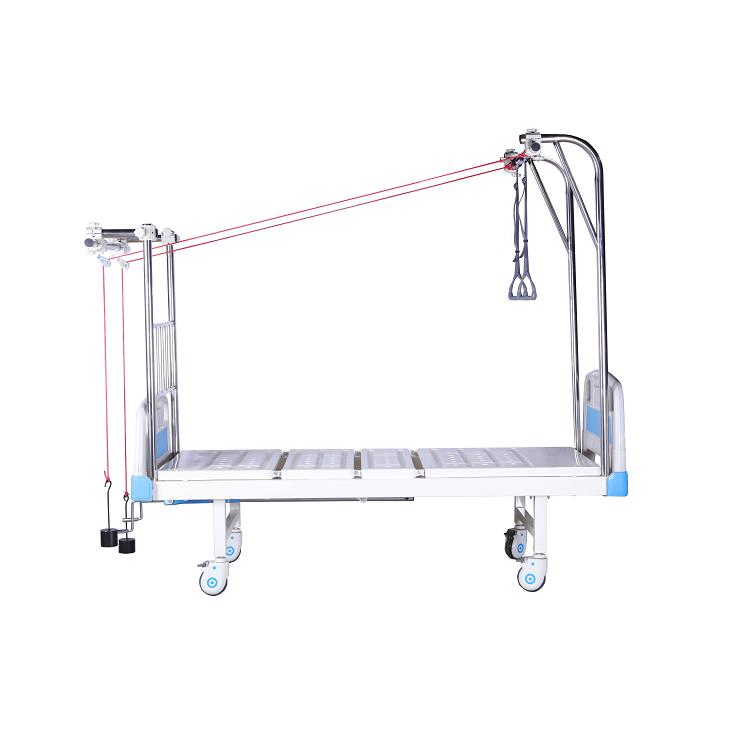

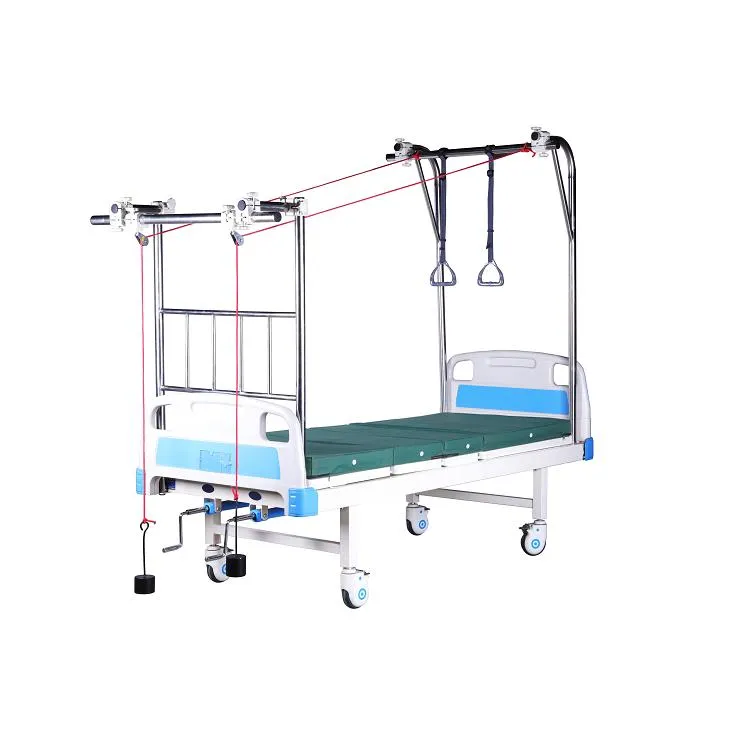

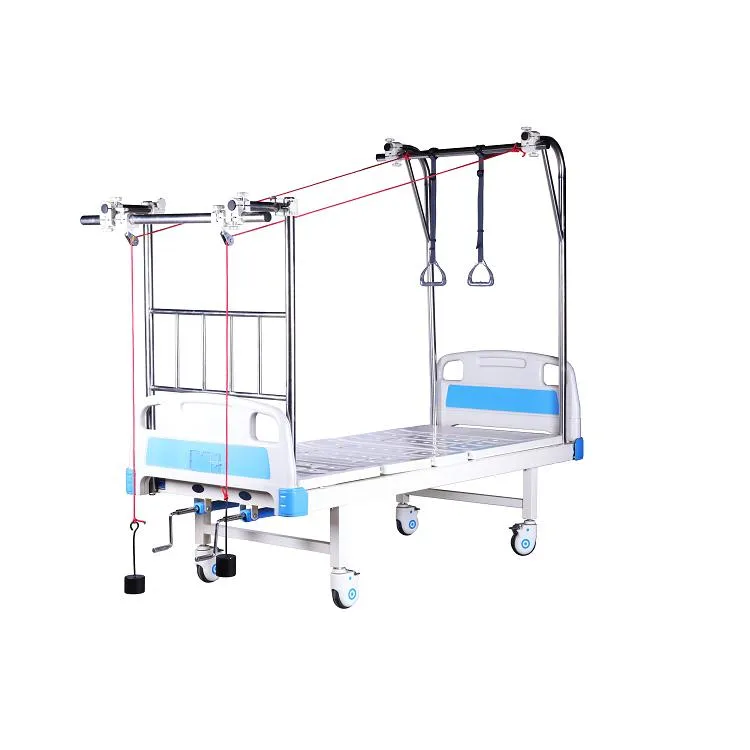

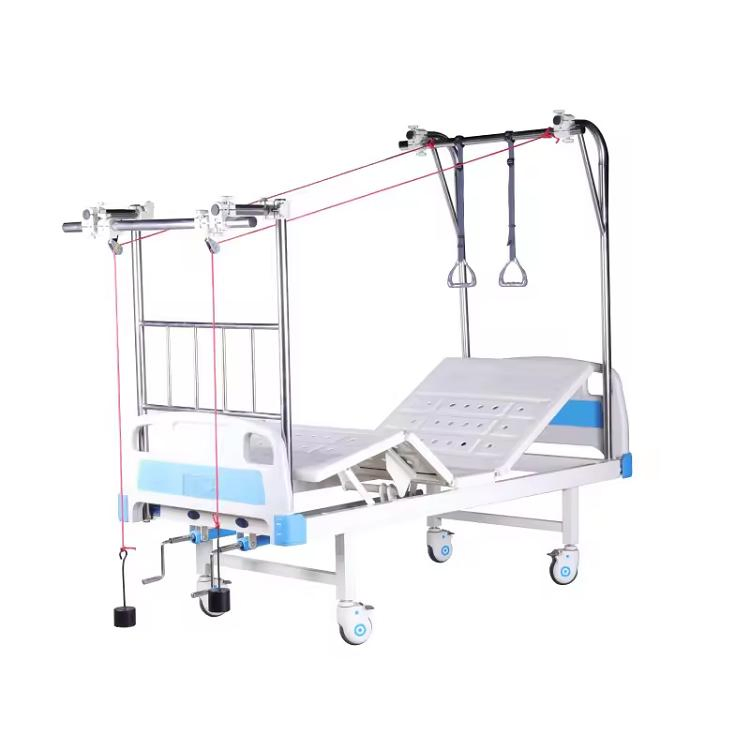

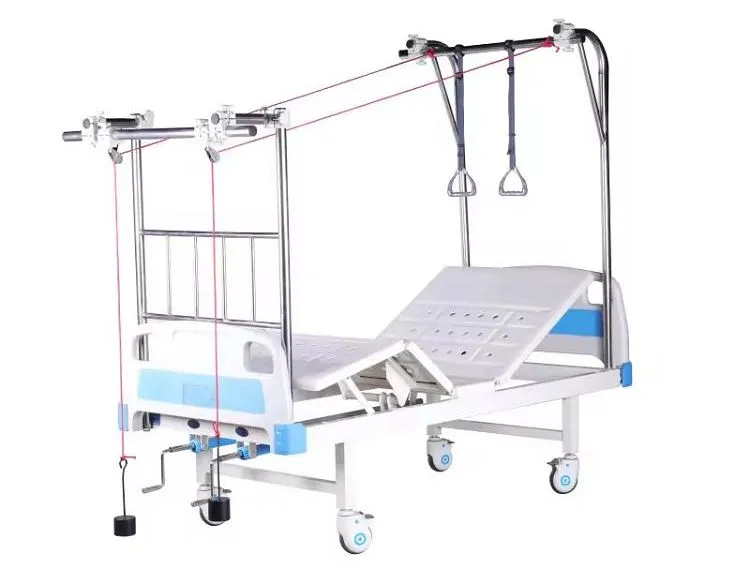

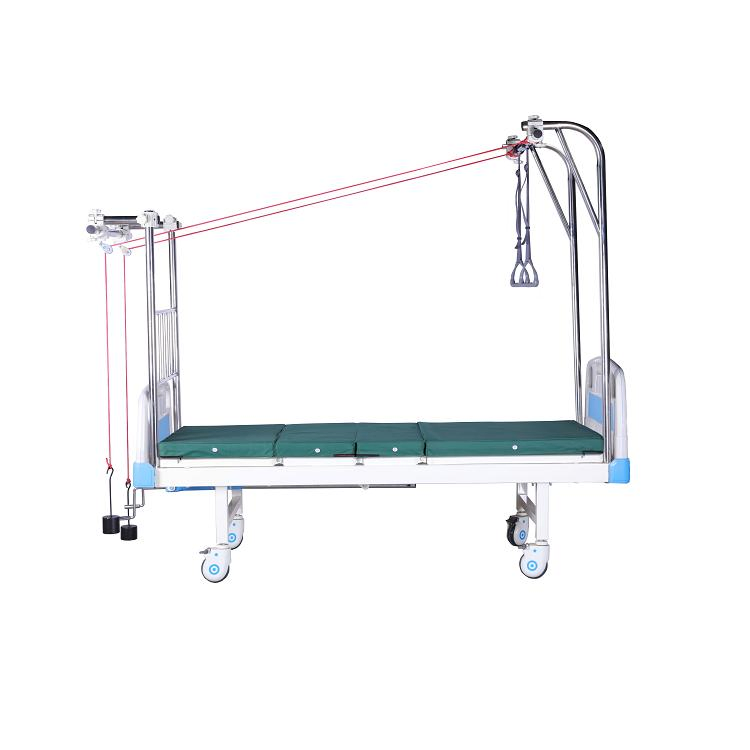

DOUBLE-CRANK ORTHOPEDIC TRACTION BED

Specifications: L2300×W900×H500mm

• The bed head and end are blow-molded using ABS high-class engineering plastics, featuring impact resistance and easy installation.
• The bed top is formed by one-time impact molding of 1.2mm cold-rolled steel sheet with a multi-hole design for air permeability.
• Heavy-duty frame welded with 40*80*1.5mm shaped square tubes; load capacity ≥240kg.
• Surface treated via acid washing, phosphating, and Akzo powder electrostatic spraying for firm paint attachment.
• Foldable guardrails made of high-quality aluminum alloy with hand-pinching prevention design.
• Four 125mm luxury silent casters provide flexible rotation and noise-free movement.
• Stainless steel hidden crank system with dual-direction limit protection and zinc alloy die-casting components.
• Traction rack constructed from Φ32×2mm stainless steel tubes, ensuring stable support for orthopedic patients.

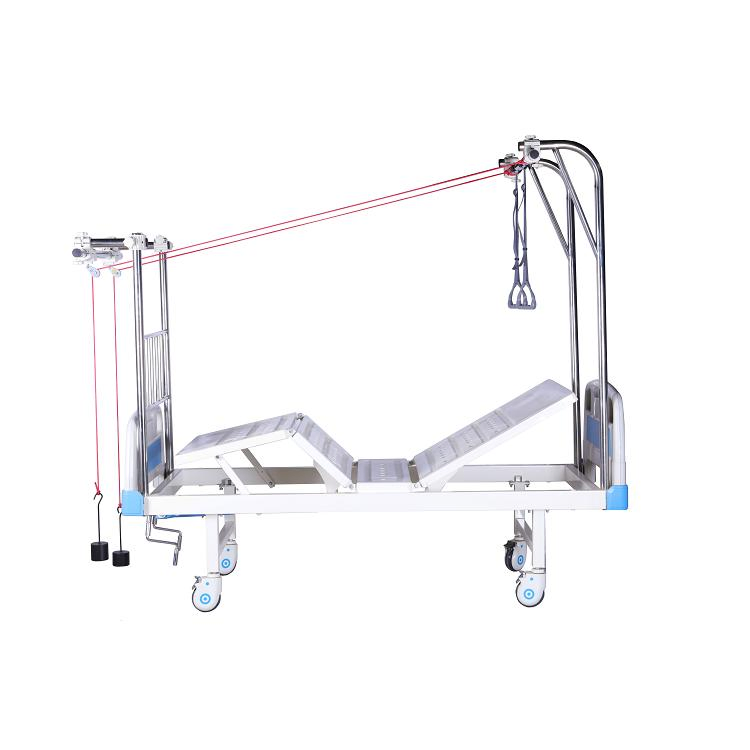

Function Introduction: (1) Backrest: 0 - 80 ± 5º | (2) Leg part: 0 - 40 ± 5º

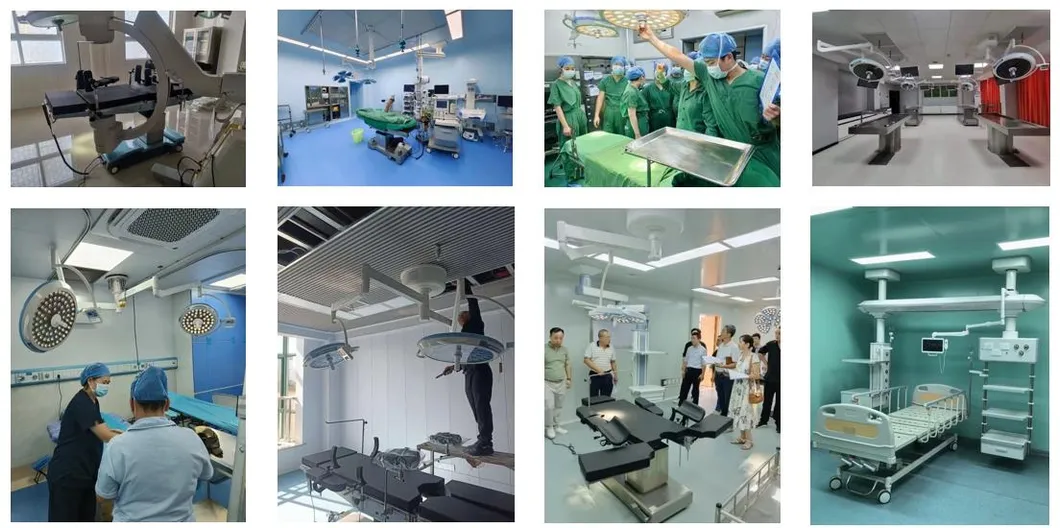

LEKANG Medical Group is a professional medical equipment manufacturer with certificates such as CE, ISO9001, ISO13485, and SGS. We specialize in operating lamps, operating tables, obstetric tables, medical pendants, and medical trolley series with over 20 years of experience.

With a dedicated R&D center, we launch new products annually to meet modern hospital requirements. Our equipment is exported to the United States, Europe, Southeast Asia, the Middle East, and South America, serving global healthcare needs.
