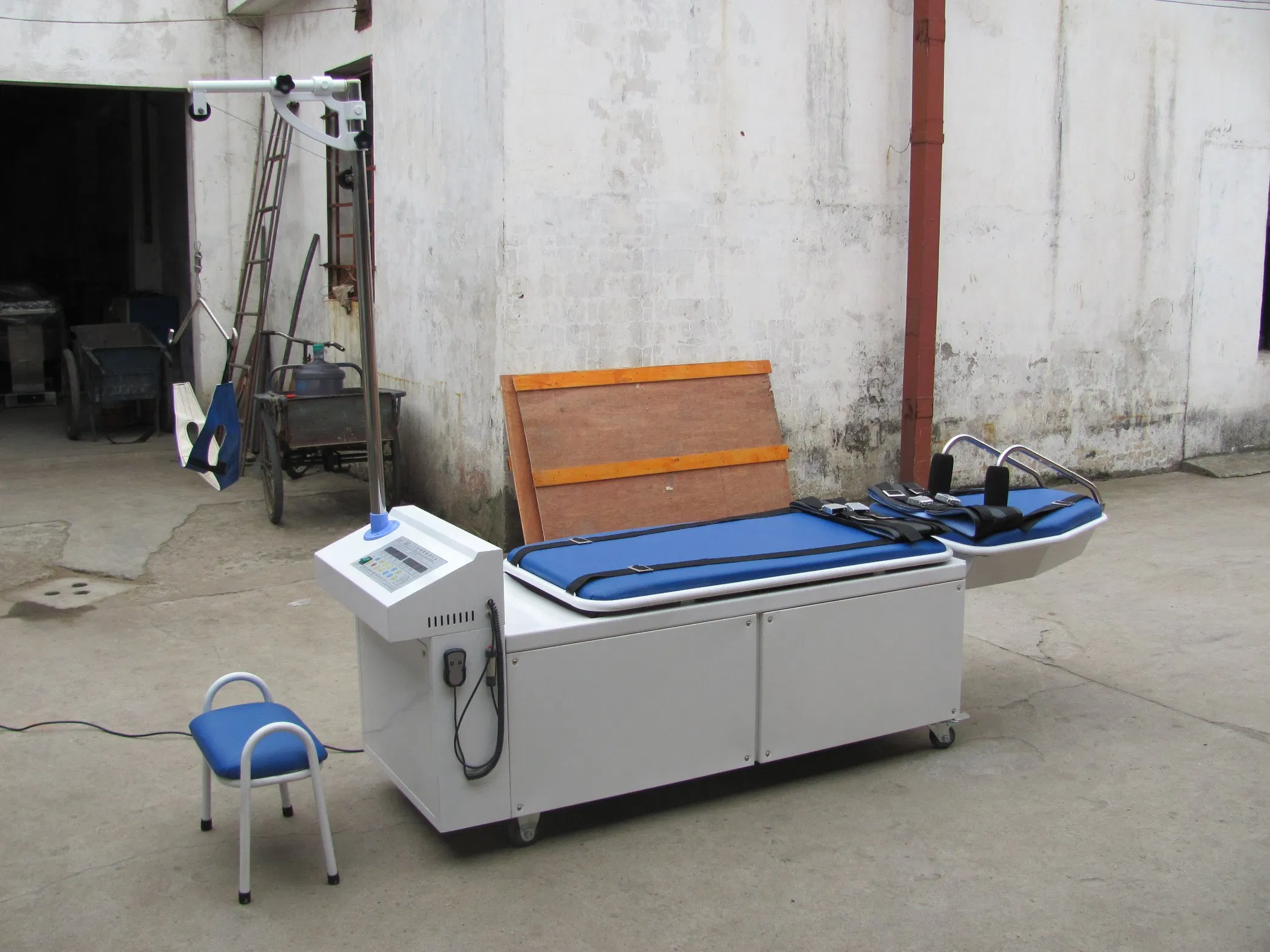

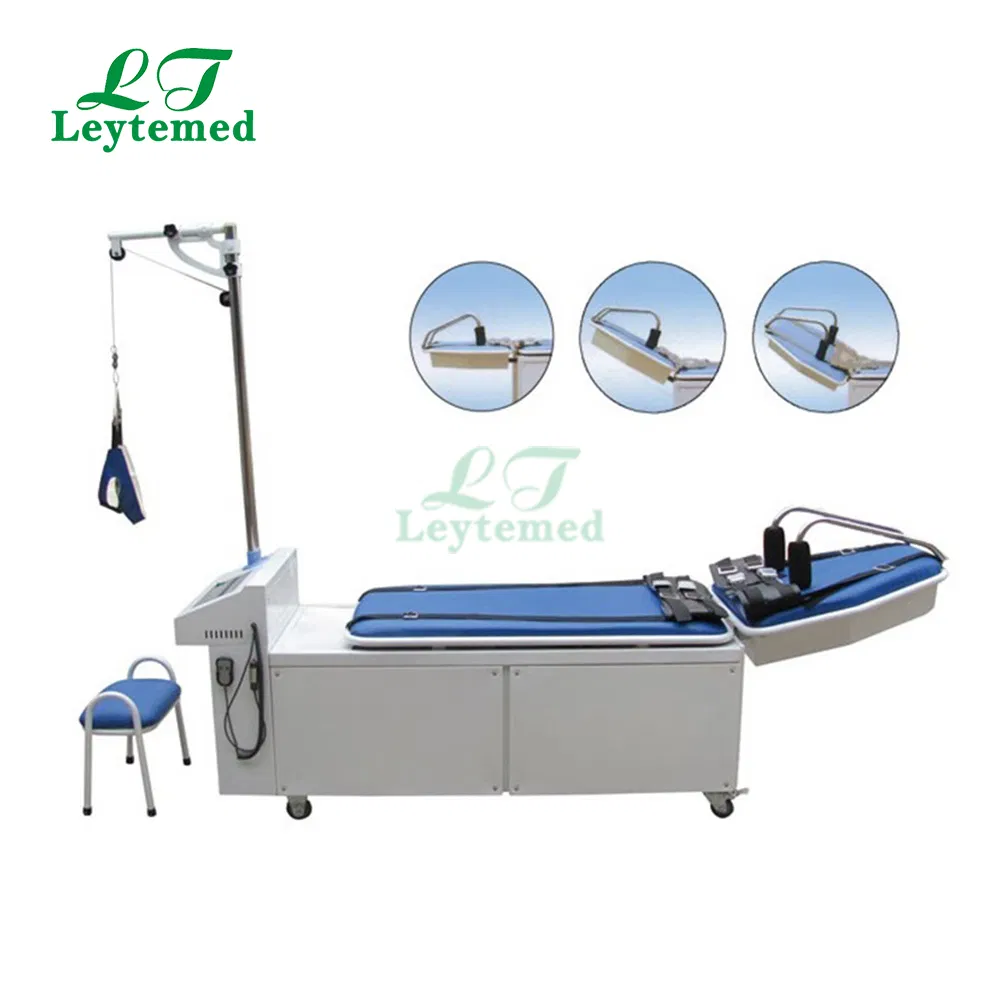

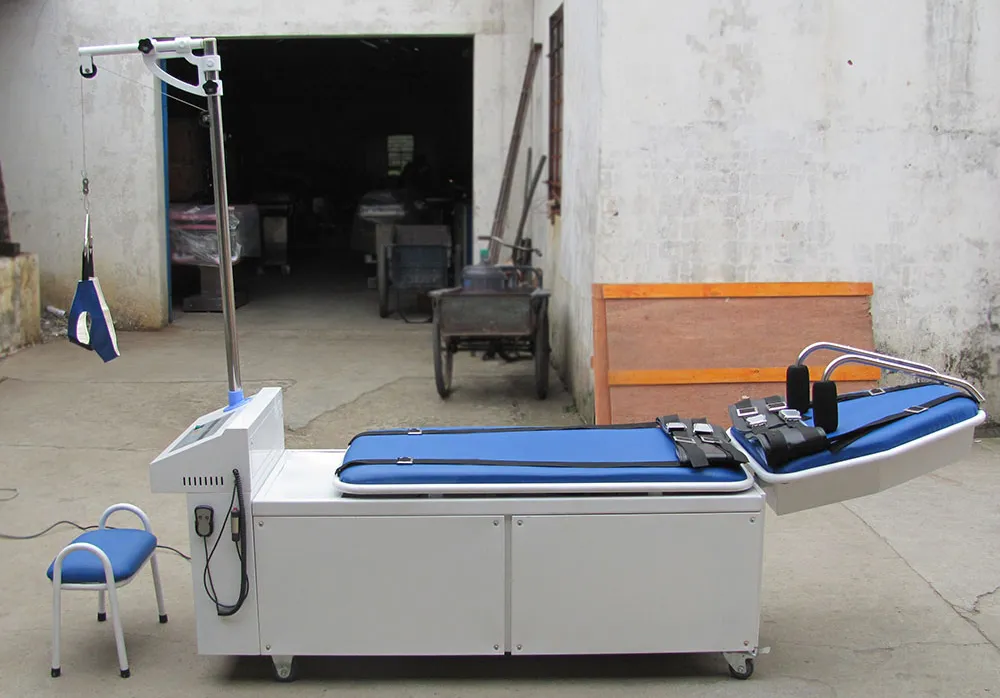

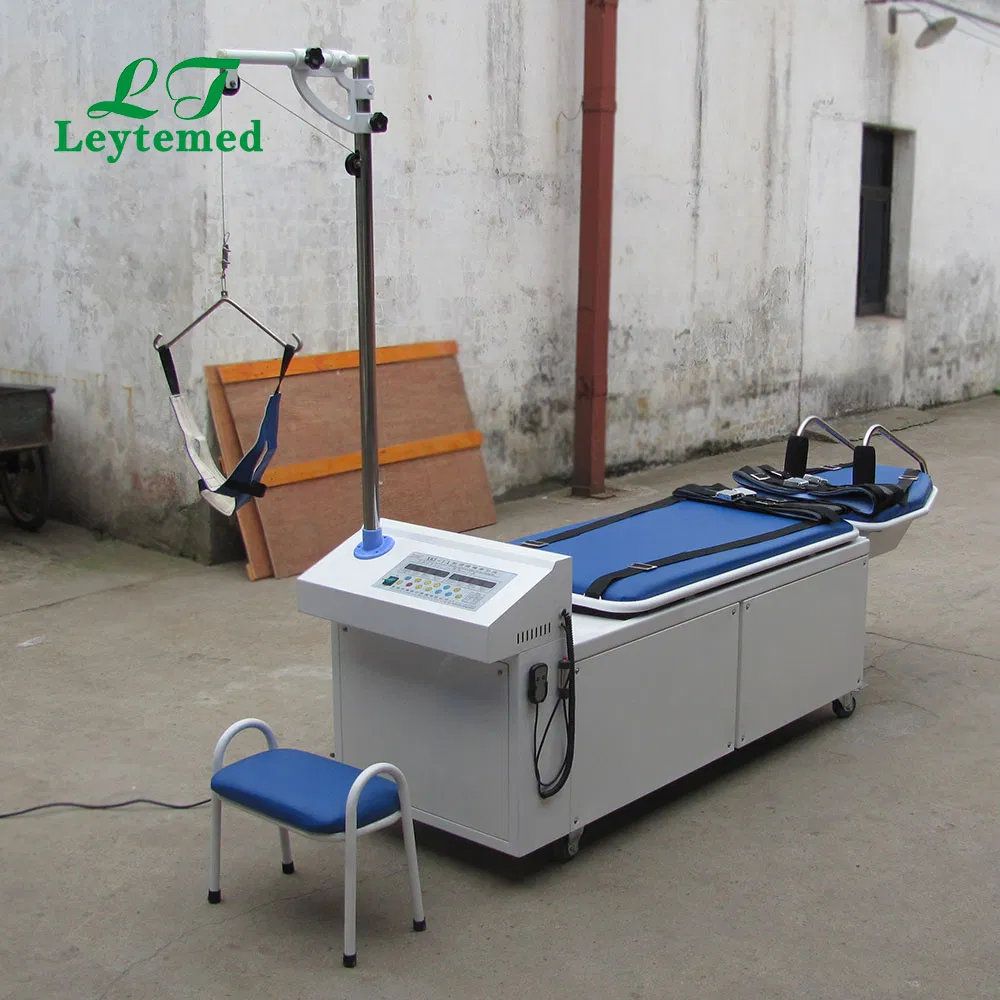

Medical Digital Display Lumbar Traction Bed - Professional Electric Orthopedic Therapy Bed
This advanced orthopedic bed is specifically designed for the treatment of cervical and lumbar vertebra diseases. It features multiple traction modes including continuous, interval, angular, and swing traction. One of its key advantages is the ability to perform lumbar and cervical traction simultaneously, improving clinical efficiency.

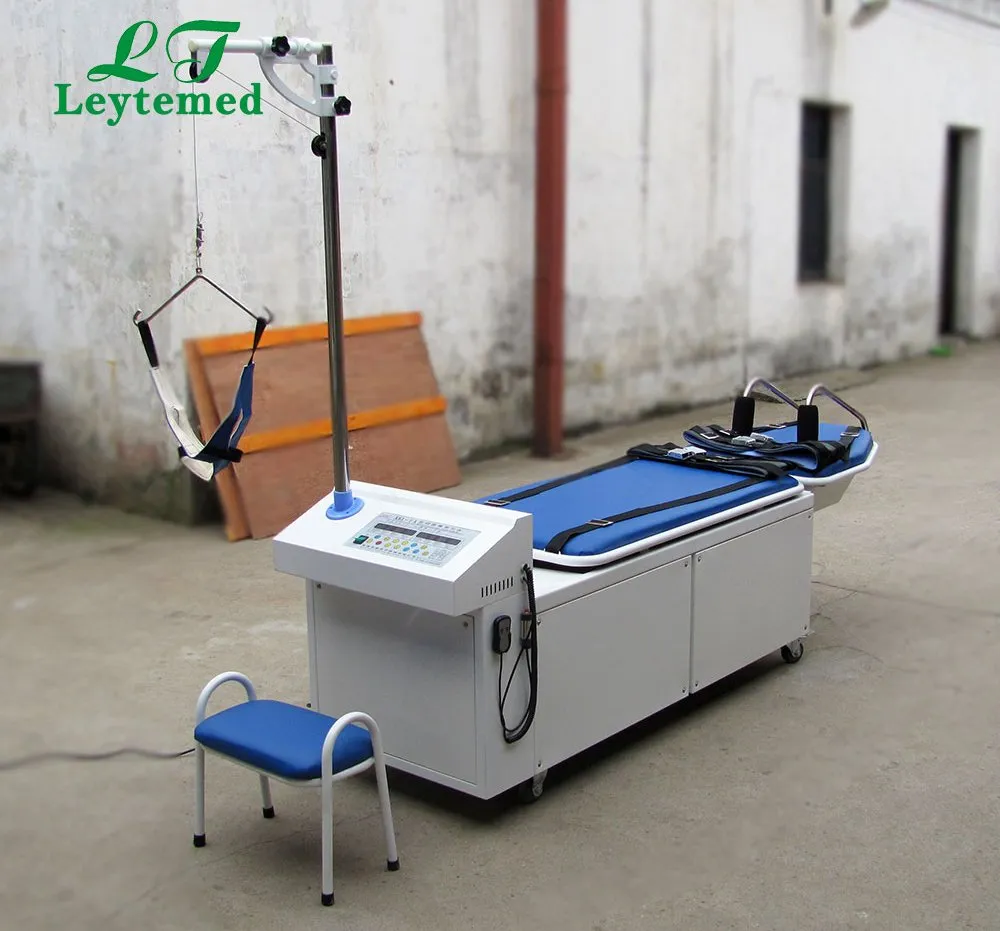

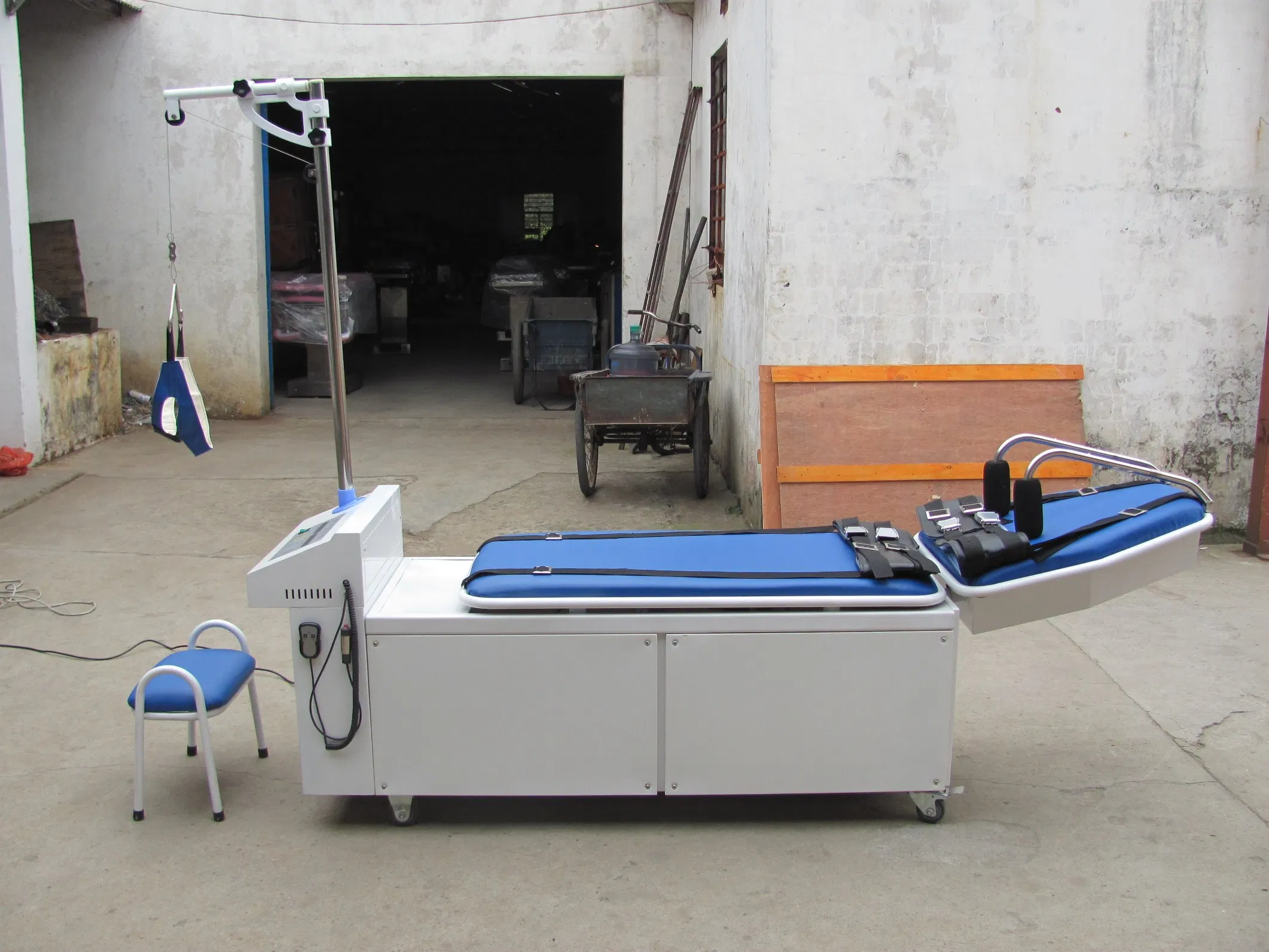

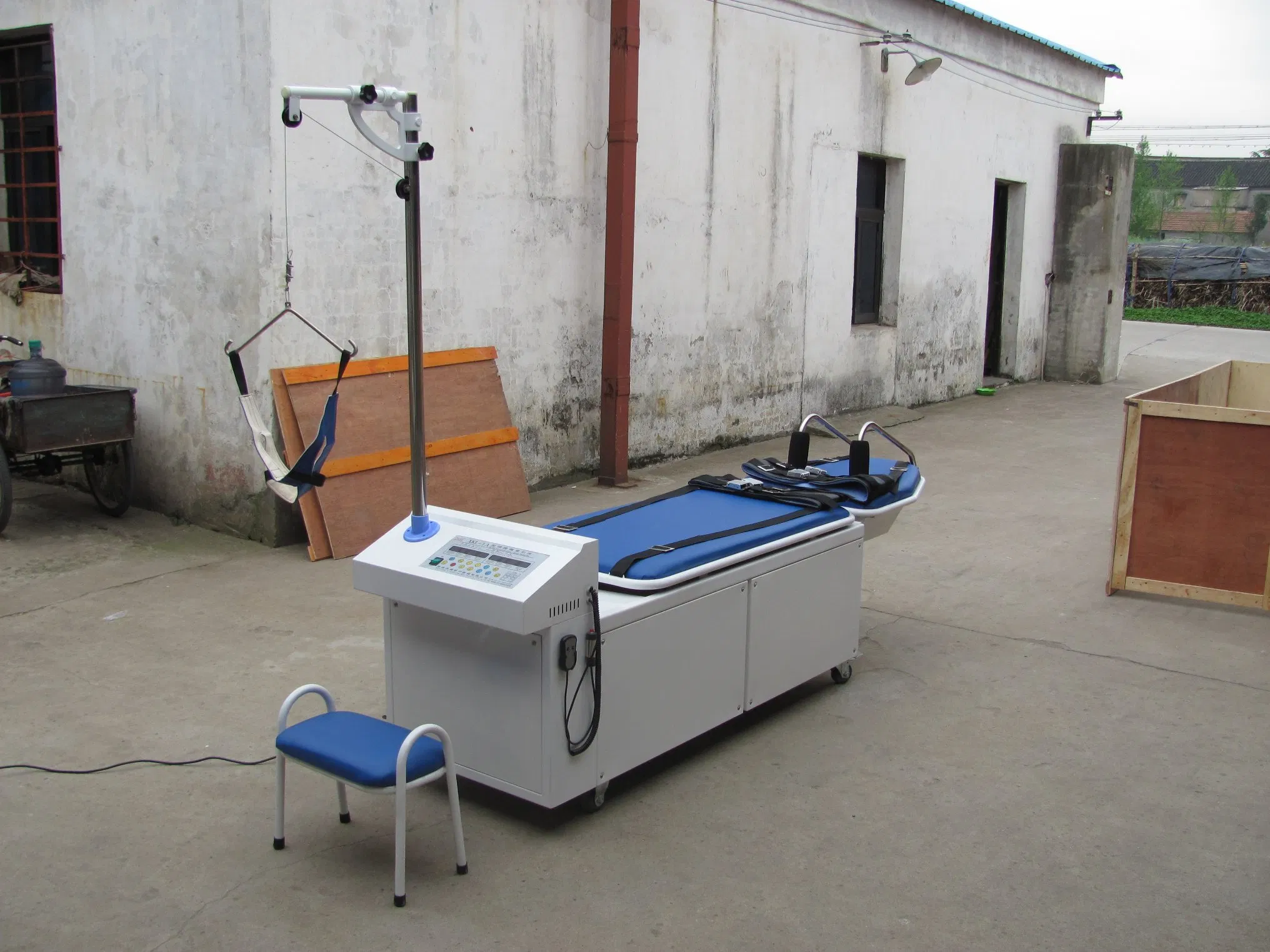

The system consists of a high-precision digital display console, a robust traction bed frame, main bed surface, swing bed surface, and a specialized cervical traction frame. It provides a comprehensive solution for physical therapy departments and orthopedic hospitals.

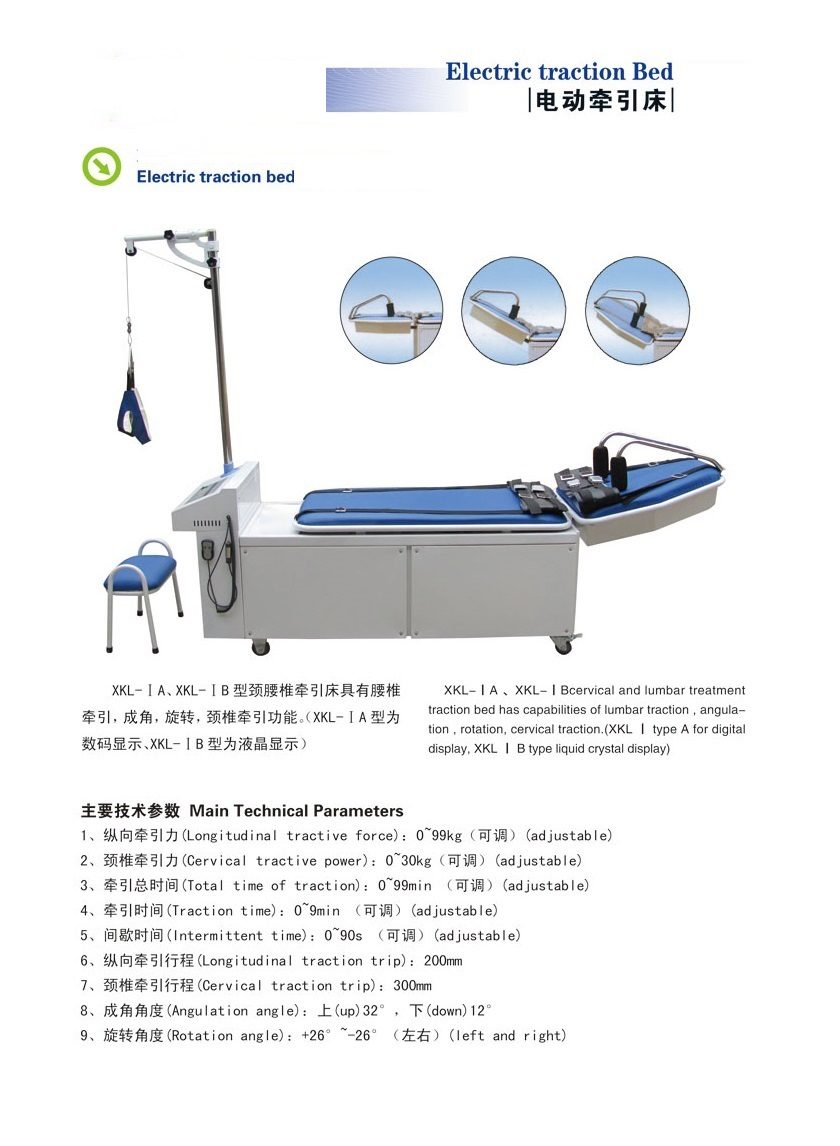

Technical Parameters
| Main Parameters | Operating Environment | ||
|---|---|---|---|
| Supply Voltage | 220V±22V | Ambient Temp Range | 5ºC ~ 40ºC |
| Supply Frequency | 50Hz±1 Hz | Relative Humidity | ≤80% |
| Power | 360VA | Atmospheric Pressure | 70.0KPa ~ 106.0KPa |
| Longitudinal Traction Force | 0~99kg (adjustable) | Longitudinal Length | 200mm |
| Cervical Traction Force | 0~30kg (adjustable) | Cervical Length | 300mm |
| Total Traction Time | 0~99min (adjustable) | Angular Angle | Up 32° / Down 12° |
| Interval Time | 0~90s (adjustable) | Rotation Angle | +26° ~ -26° (L/R) |
| Volume | 2450×600×720mm | Fuse Specification | 2A 250V |
Our Services & Quality
With over 10+ years of medical equipment export experience, we provide professional solutions to healthcare facilities in over 50 countries.
All inquiries are addressed in detail within 24 hours by our professional team.
We offer comprehensive OEM options, including custom logo printing and packaging customization.
Experienced engineers are available to help you maximize the use of the therapy equipment.
Delivery Details
We provide flexible shipping options based on your urgency and budget:
