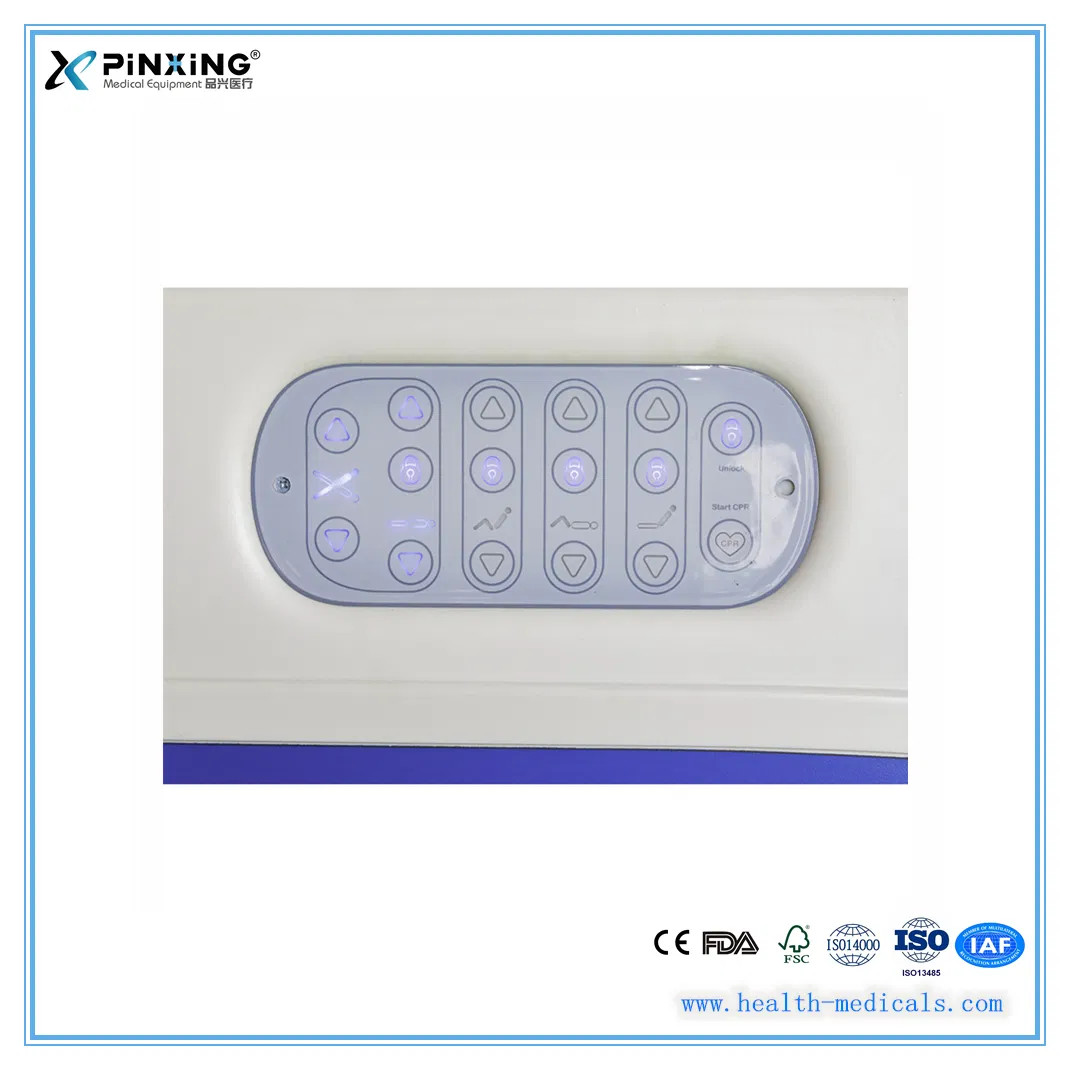

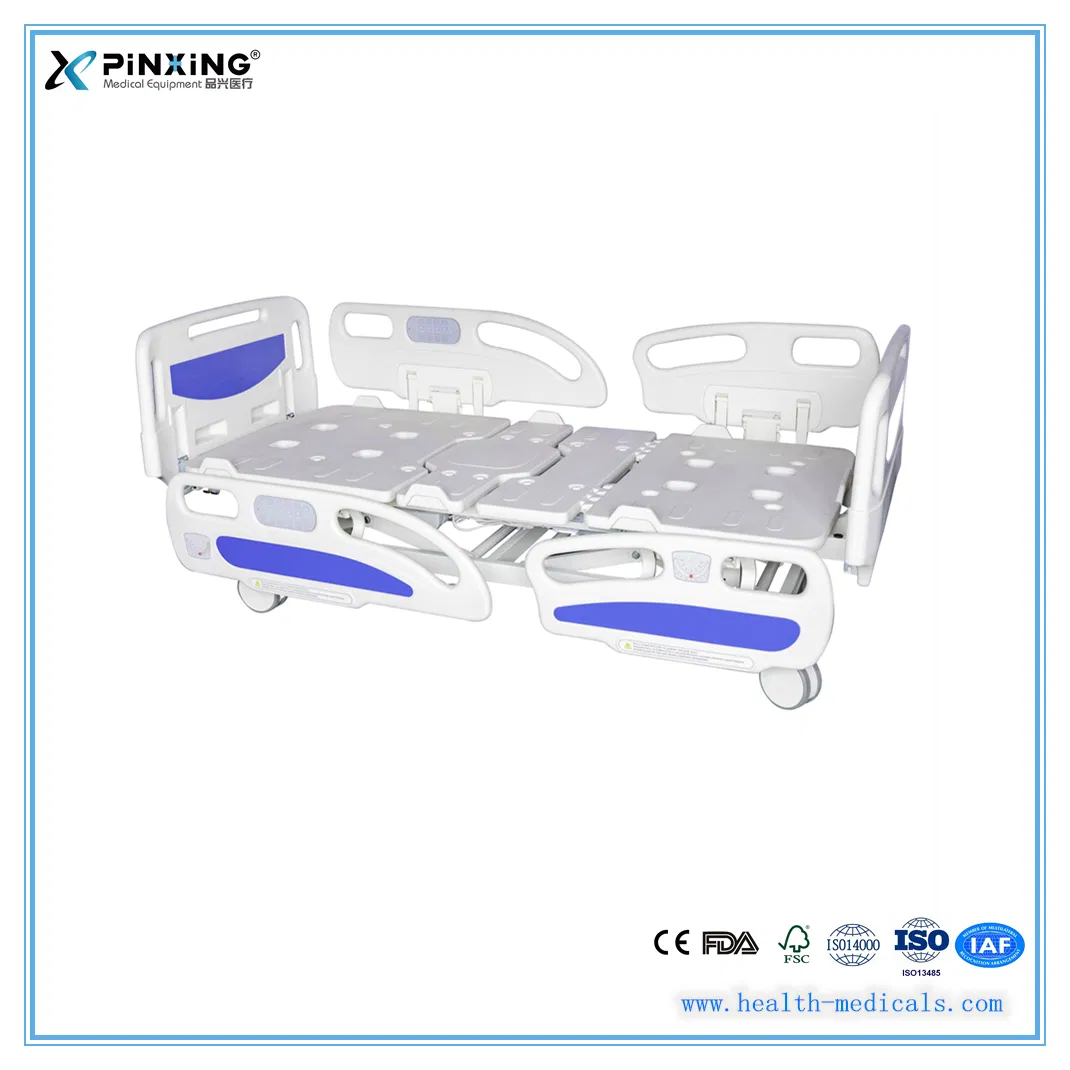

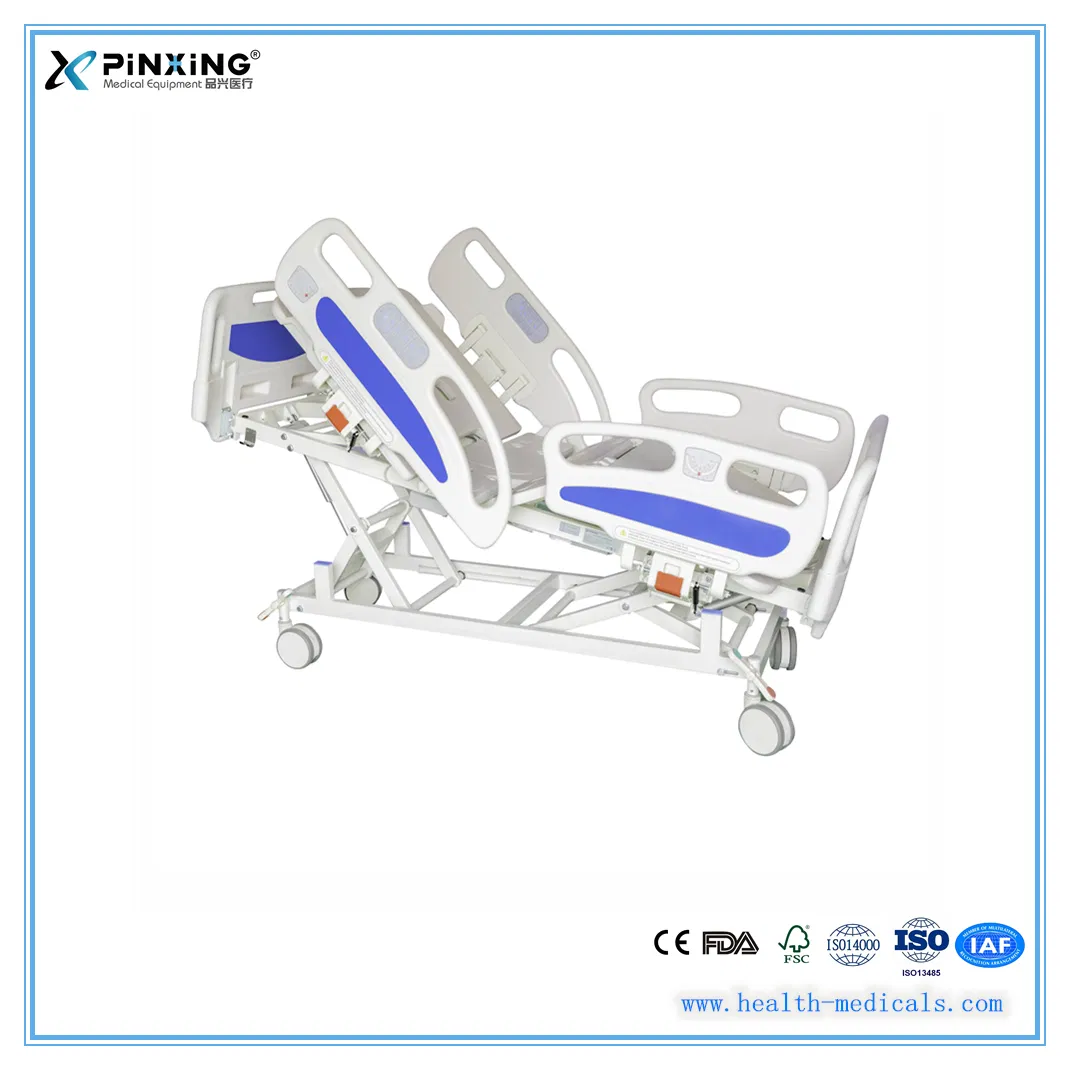

Intensive Care Bed with Built-in Siderail Control Panel and Weighing Scale System DY5895EW
Numbers of Function:
Five-function
Certification:
CE, ISO13485, SGS, ISO14001

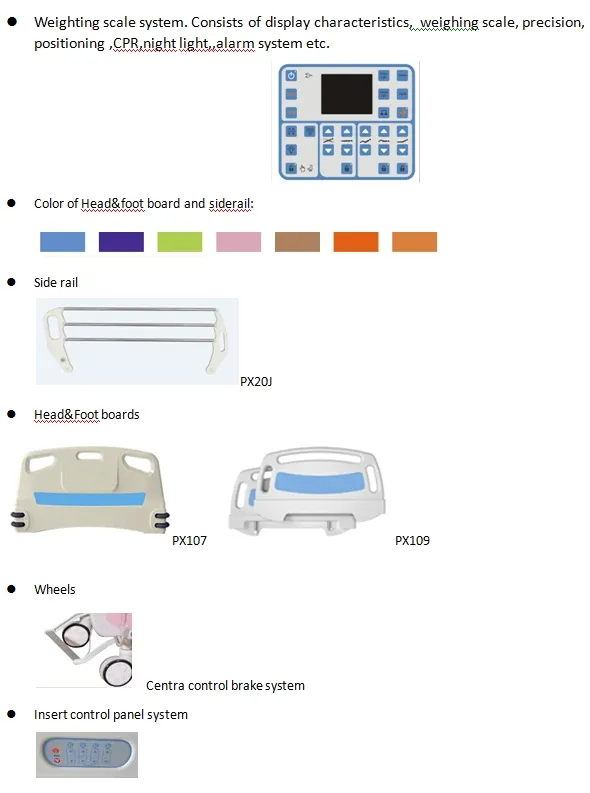

Optional Function:
Weigh Scale Systems
Backrest Angle:
0~75 Degree
Footrest Angle:
0~35 Degree
Trendelenburg Angle:
0~12 Degree
Reverse Trendelenburg:
0~12 Degree
Height Adjustment:
420~820mm
Transport Package:
Standard Export Package
Specification:
2180*1060*420~820mm

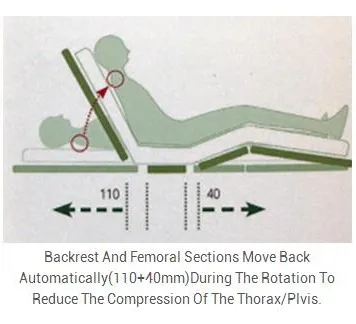

- Backrest Angle: 0° ~ 75°
- Footrest Angle: 0° ~ 35°
- Trendelenburg Angle: 0° ~ 12°
- Reverse Trendelenburg Angle: 0° ~ 12°
- Height: from 450 mm to 850 mm (+-3%)
- Height with weighing scale: from 550 mm to 950 mm (+-3%)
- Bed Dimensions: 2100×1000 mm (+-3%)
- Bed Weight: 155KG~170KG (with weighting scale system)
- Max Load: 400 KG
- Dynamic load: 200KG
- Bed frame made of 30*60mm powdered coating cold rolled tube.
- High-quality motors electronic for adjustments.
- External wired nurse control and patient control.
- Lockable and detachable PP head and foot boards with bumpers.
- Unique design with crashproof bumps for bed protection.

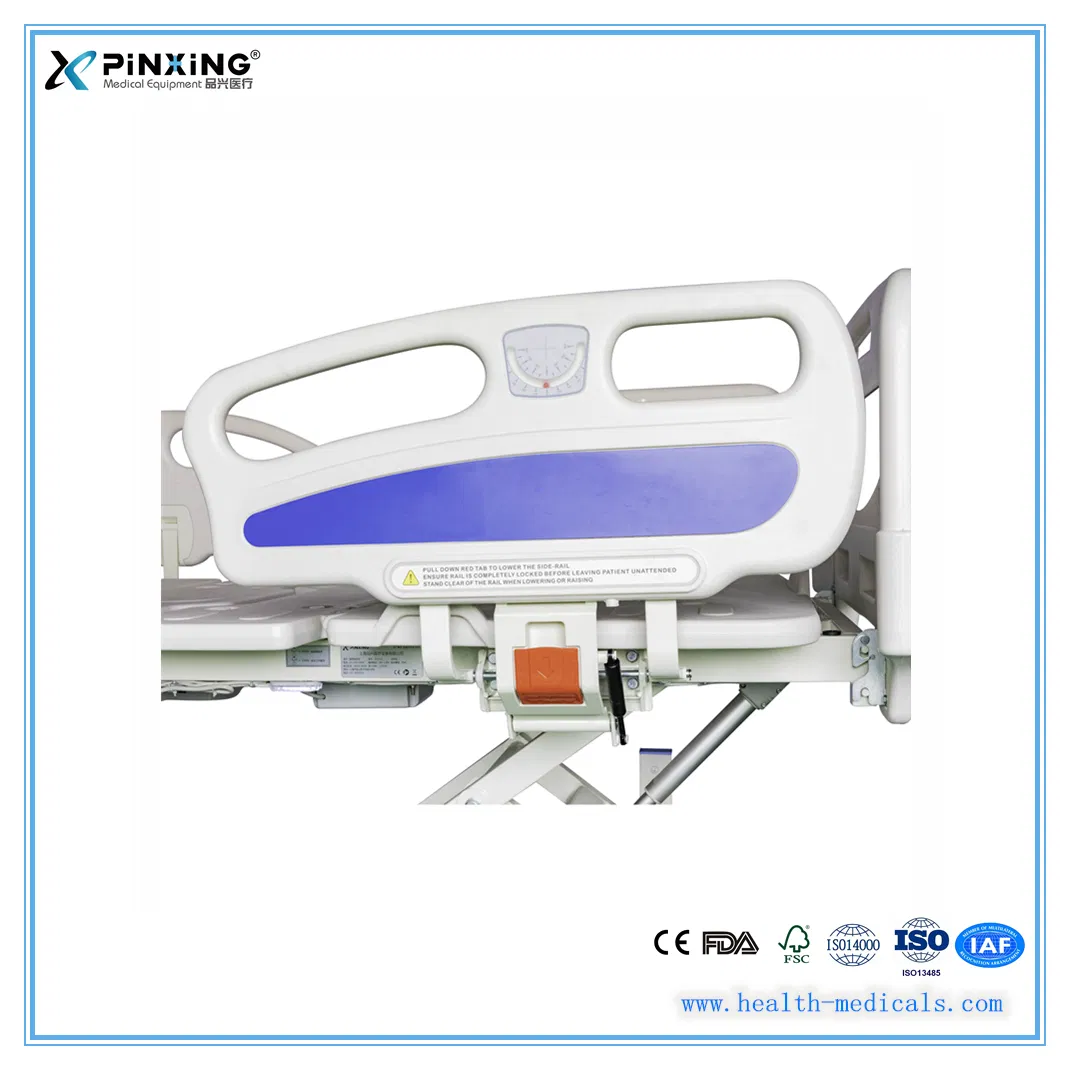

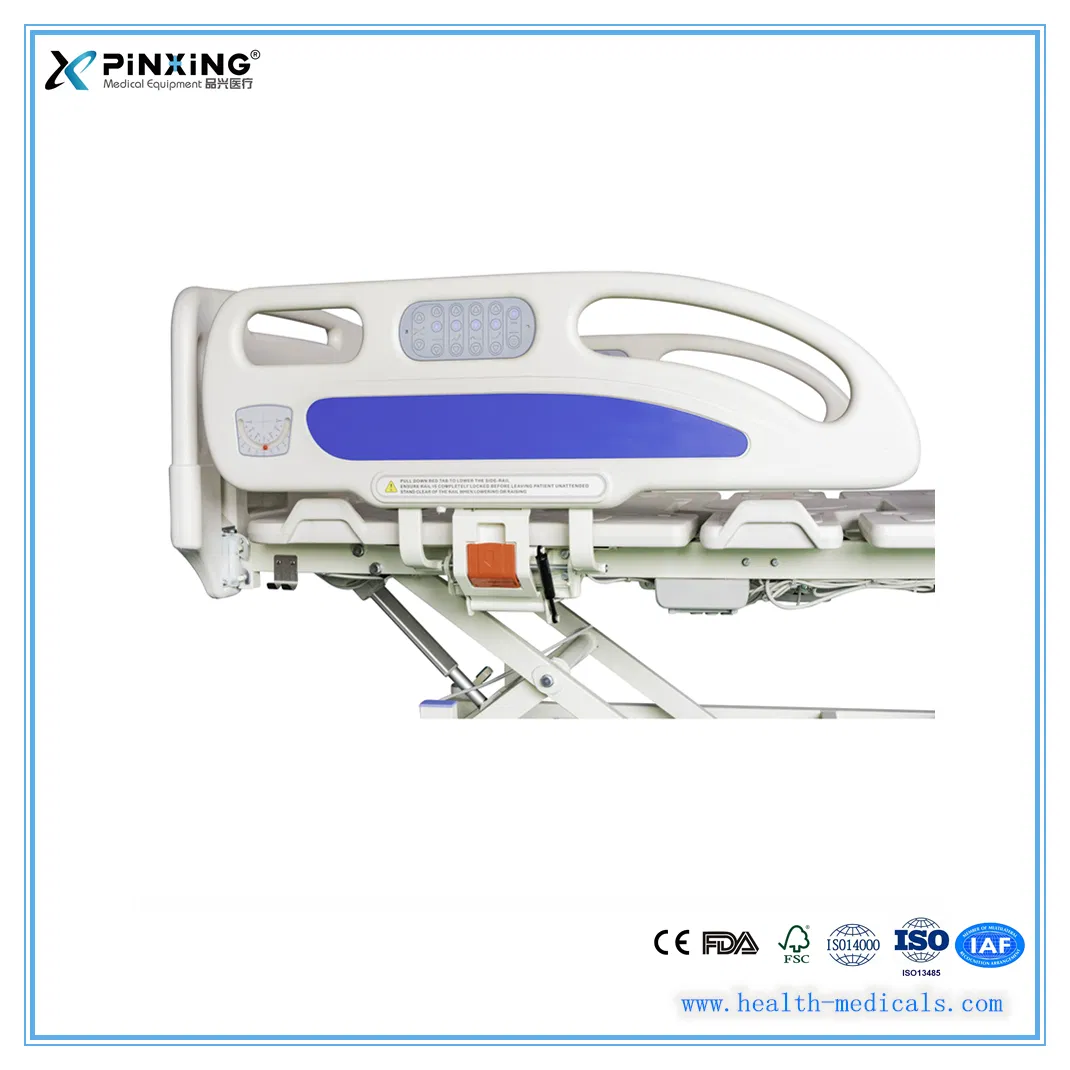

- Upgrading side rails with inserted angle indicator for backrest and Trendelenburg positions.
- 4 section PP mattress-support board: waterproof, rustproof and easy to clean.
- Drainage bag hooks at both sides.
- Manual & Electrical CPR button.
- IV pole sockets located at four corners.
- Four 360° swivel, central lockable castors (Diameter 150mm).
- Conformity: CE 42/93/EEC, ISO 13485.
Established in 1996, the facility focuses on researching and developing emergency rescue medical equipment and hospital furniture. The manufacturing process includes robot welding machines, numerical control machines, and laser cutters. With more than 100 patent certificates, it leads the trends in the hospital furniture and emergency rescue medical equipment industry.
How long is the delivery time?
Normally around 15~30 days for the accessories, 35~45 days for the beds after deposit and order confirmation.
What is the payment term?
We accept TT and L/C.
Do you provide OEM service and logo placement?
Yes, we provide full OEM services and can put your logo on the products.
Are you a manufacturer?
We are a manufacturer with more than 23 years of experience in this industry, equipped with strong independent research and development capabilities.
What is your warranty policy?
We offer 2 years' limited warranty for the motors and 1 year for the bed frame. During the warranty time, we can send replacement parts or issue refunds for broken items.
