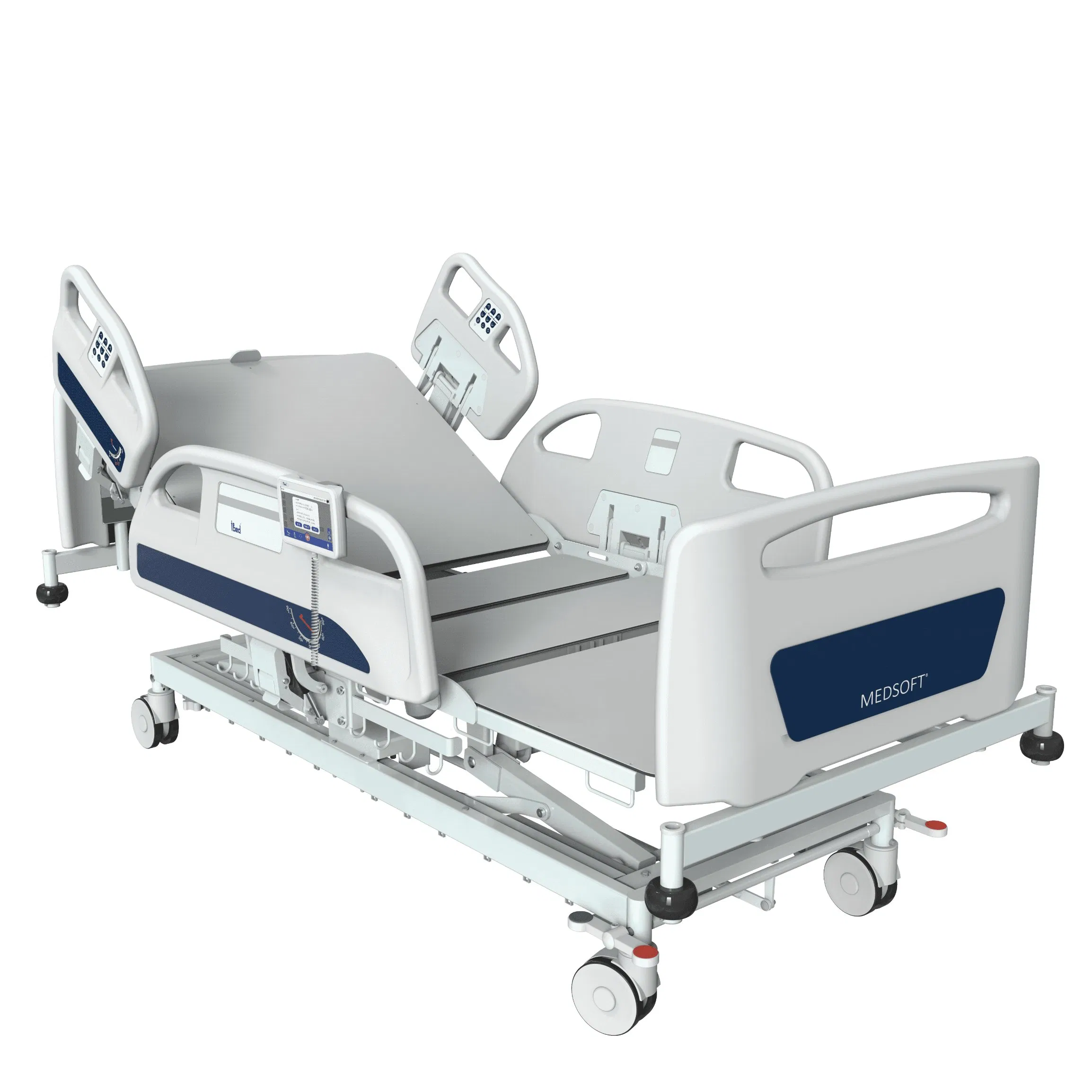

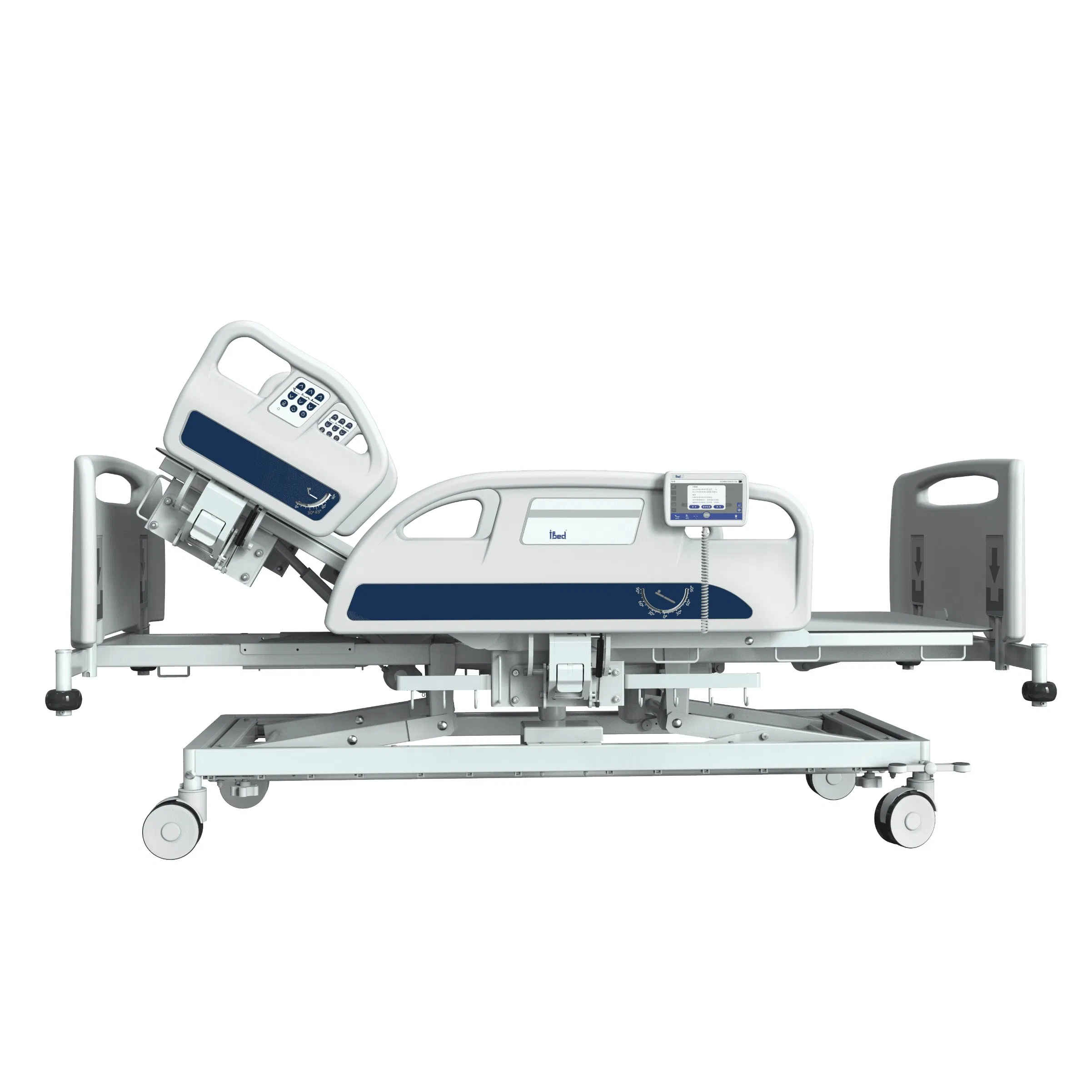

iBed 3W Pro Rehabilitation Hospital Bed for Sick Patient

1 / 5

iBed 3W Pro Rehabilitation Hospital Bed for Sick Patient

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.iBed 3W Pro

Using AmbientHospital

Numbers of FunctionFive-function

CertificationCE, ISO13485

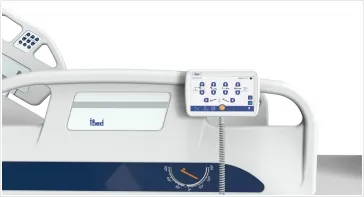

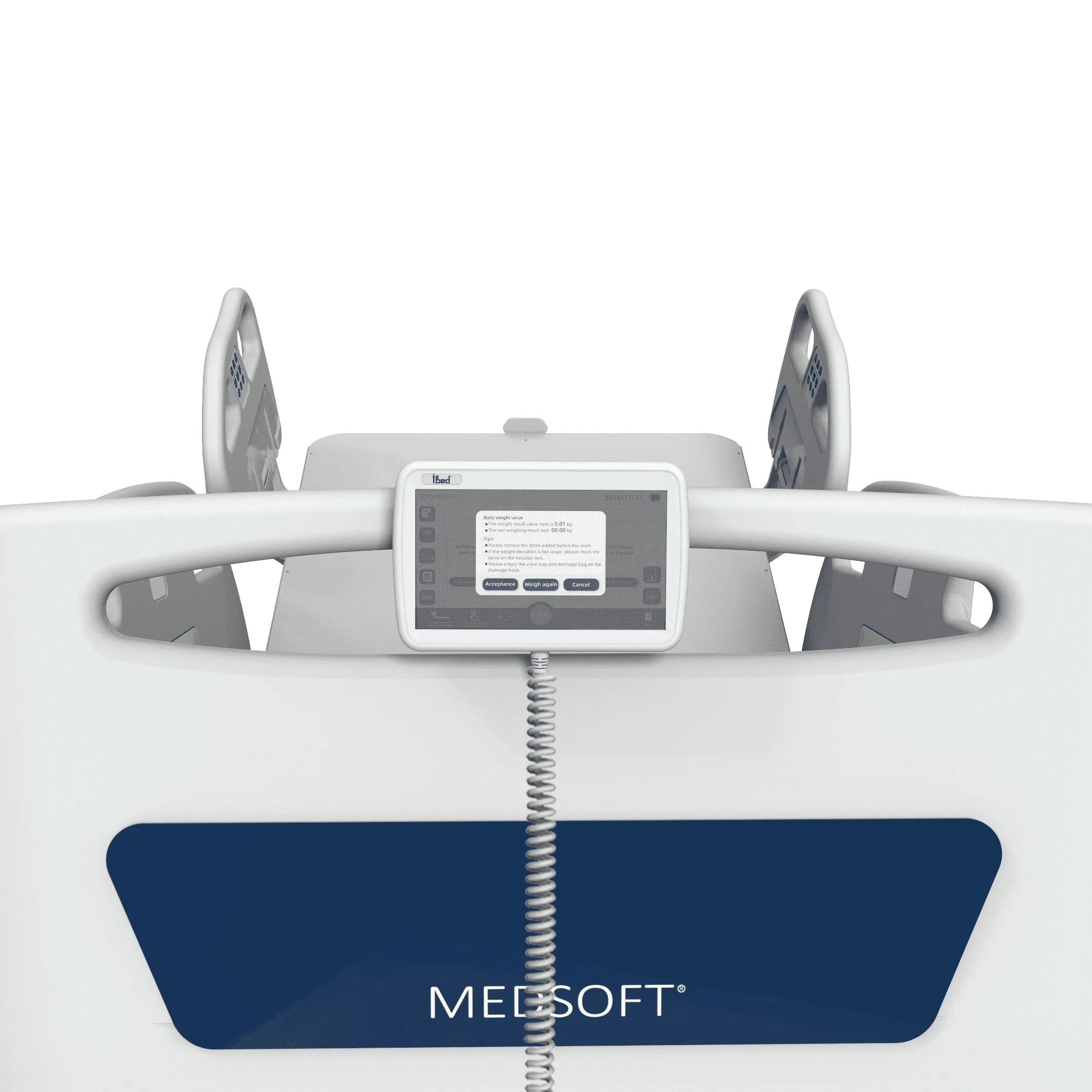

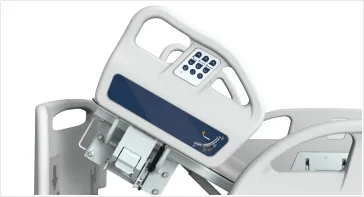

Controller7-inch LCD Touch Screen

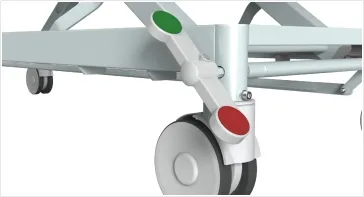

CastorSilent Central Locking Casters

Safe Working Load230kg

Production Capacity12000 PCS/Year

Intelligent Functions

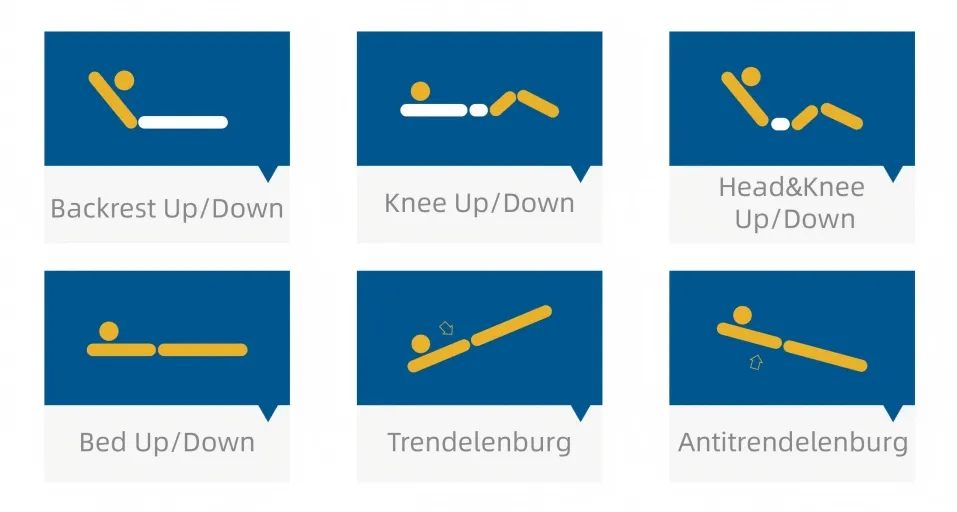

💡 Basic Electric Operations

Electric Backrest Up/Down
Electric Knee Up/Down
Electric Trendelenburg & Antitrendelenburg
Electric Bed Height Adjustment (480mm-850mm)

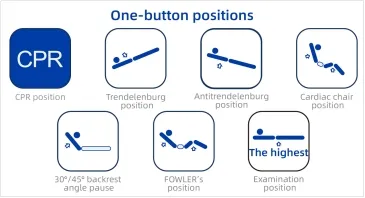

🔘 One-Button Positions

Quick access to therapeutic positions: Cardiac chair, Trendelenburg, Antitrendelenburg, Semi-recumbent, Fowler, Examination, and CPR position.

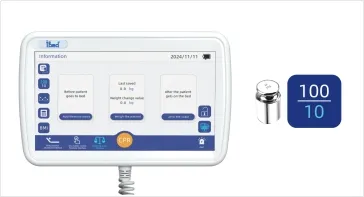

📊 Advanced Weighing System

High-precision weighing system with 0.01Kg accuracy. Stores up to 30 measurements and displays trend charts for direct patient weight change monitoring.

Safety & Patient Care

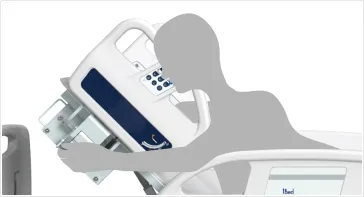

🛡️ Fall Prevention & Auto-Rollback

Auto-Rollback: Reduces displacement and shear force during body adjustments.
Guardrail Security: High-strength structure ensuring patient cannot unlock rails accidentally.
Alert System: Sounds a reminder if patient movement causes weight fluctuations.

Technical Parameters

Parameter	Specification
Overall Size (L*W)	2200*1035mm

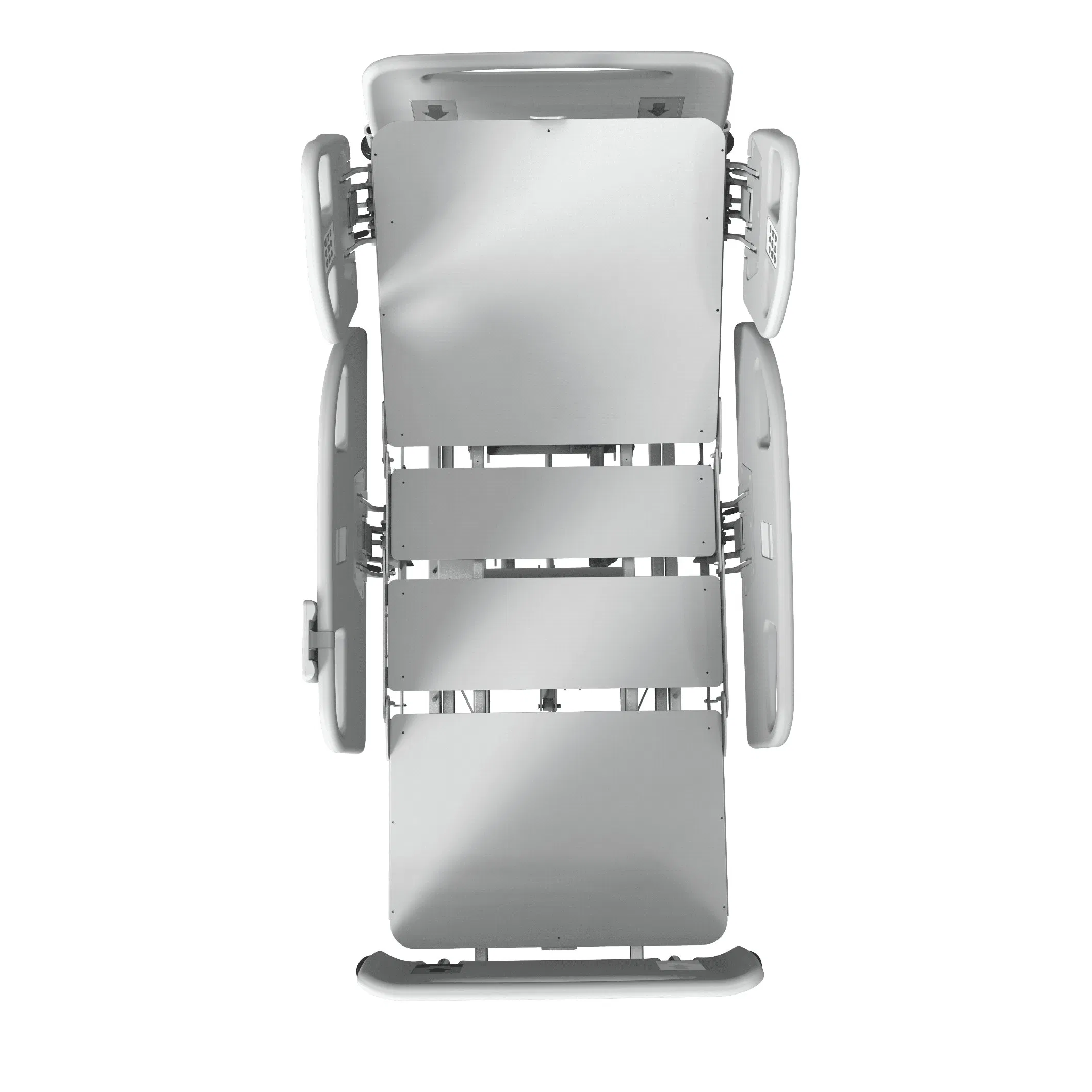

Mattress Platform	2000*811mm
Bed Extension (Optional)	200mm
Head Adjustment	0-70°
Knee Adjustment	0-45°
Trendelenburg / Antitrendelenburg	0-16°
Linear Motor	4 pcs Linak Motors (Denmark)
Castors	5" Central Locking

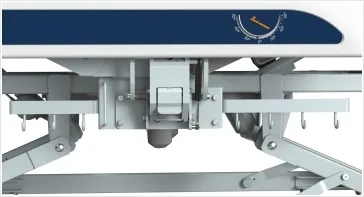

Drainage Hooks	14 pcs

Critical Care Excellence

The iBed 3W Pro is designed for ICU and high-end wards, featuring one-step removable HDPE bed ends and dual-sided CPR levers for emergency response. It integrates intelligent nursing systems to streamline workflows and elevate patient survival rates through active monitoring and Al-driven data analytics.

Frequently Asked Questions

What are the main functions of the iBed 3W Pro?

The bed features 5 main electric functions including backrest adjustment, knee adjustment, height adjustment, Trendelenburg, and Antitrendelenburg positions.

How accurate is the integrated weighing system?

The system offers high-precision measurement with 0.01Kg accuracy and can store up to 30 historical weight records to track patient trends.

What safety features are included to prevent patient falls?

It includes high-strength HDPE side rails with buffer, an intelligent alert system for patient agitation, and an Auto-Rollback function to reduce shear force.

Can the bed be used for emergency CPR?

Yes, it is equipped with dual-sided manual CPR levers and a one-key electric CPR function to quickly flatten the back section for emergency resuscitation.

What type of motors and control system are used?

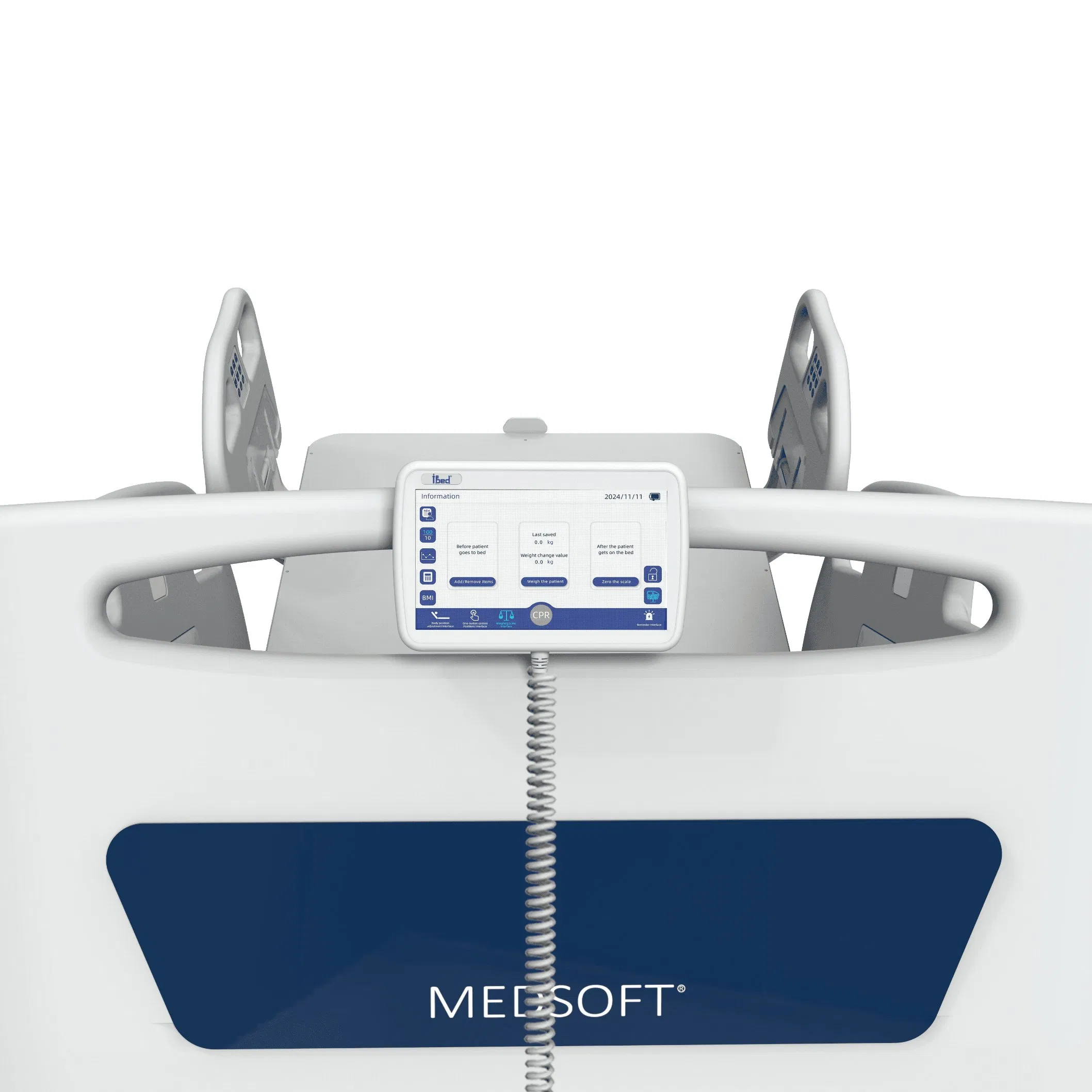

The bed utilizes high-stability Linak motors from Denmark and is controlled via a 7-inch user-friendly touch screen that supports multiple languages.

Is the bed suitable for taller patients?

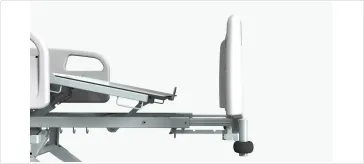

Yes, the iBed 3W Pro features an integrated bed extension that can increase the mattress platform length by 200mm to accommodate individual height requirements.
