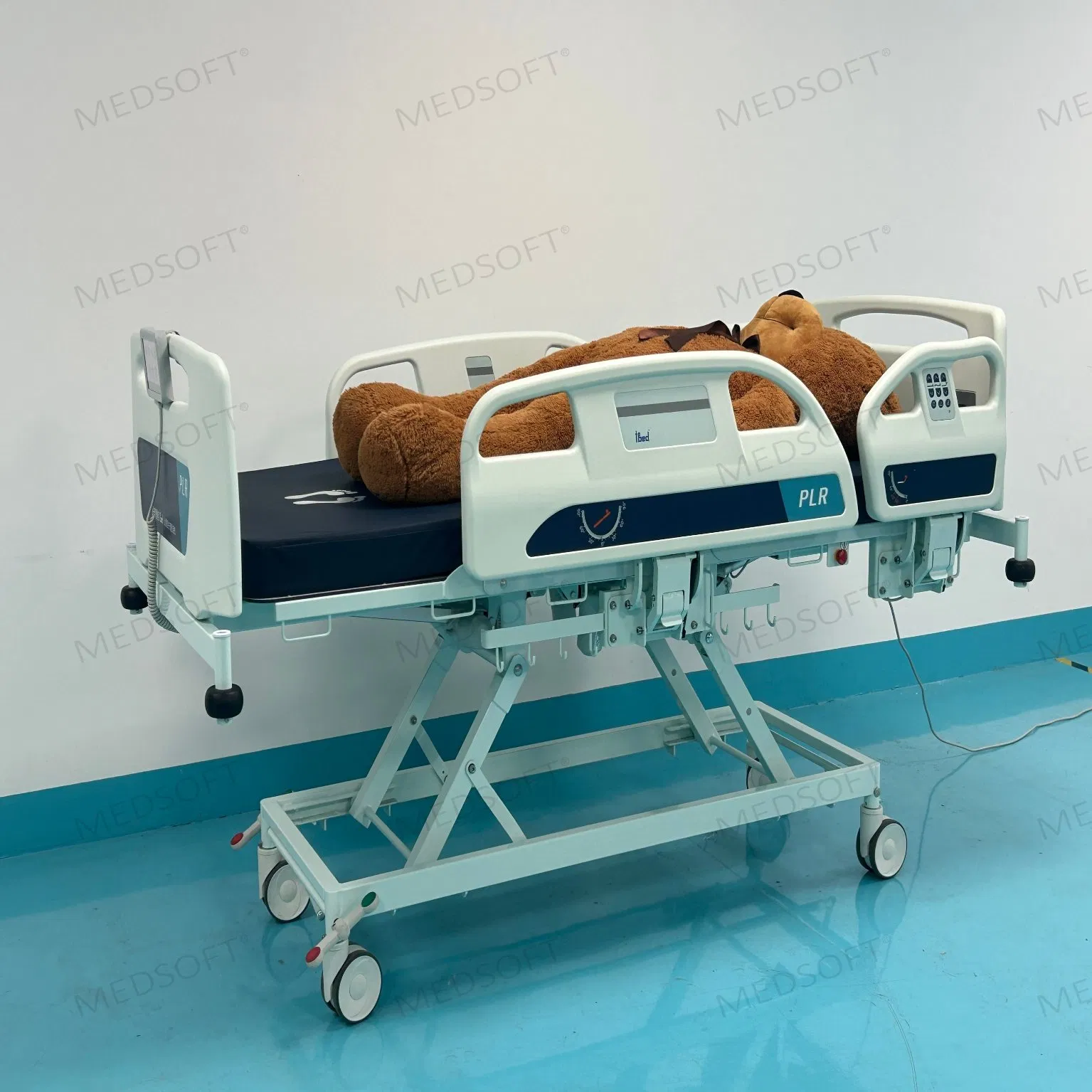

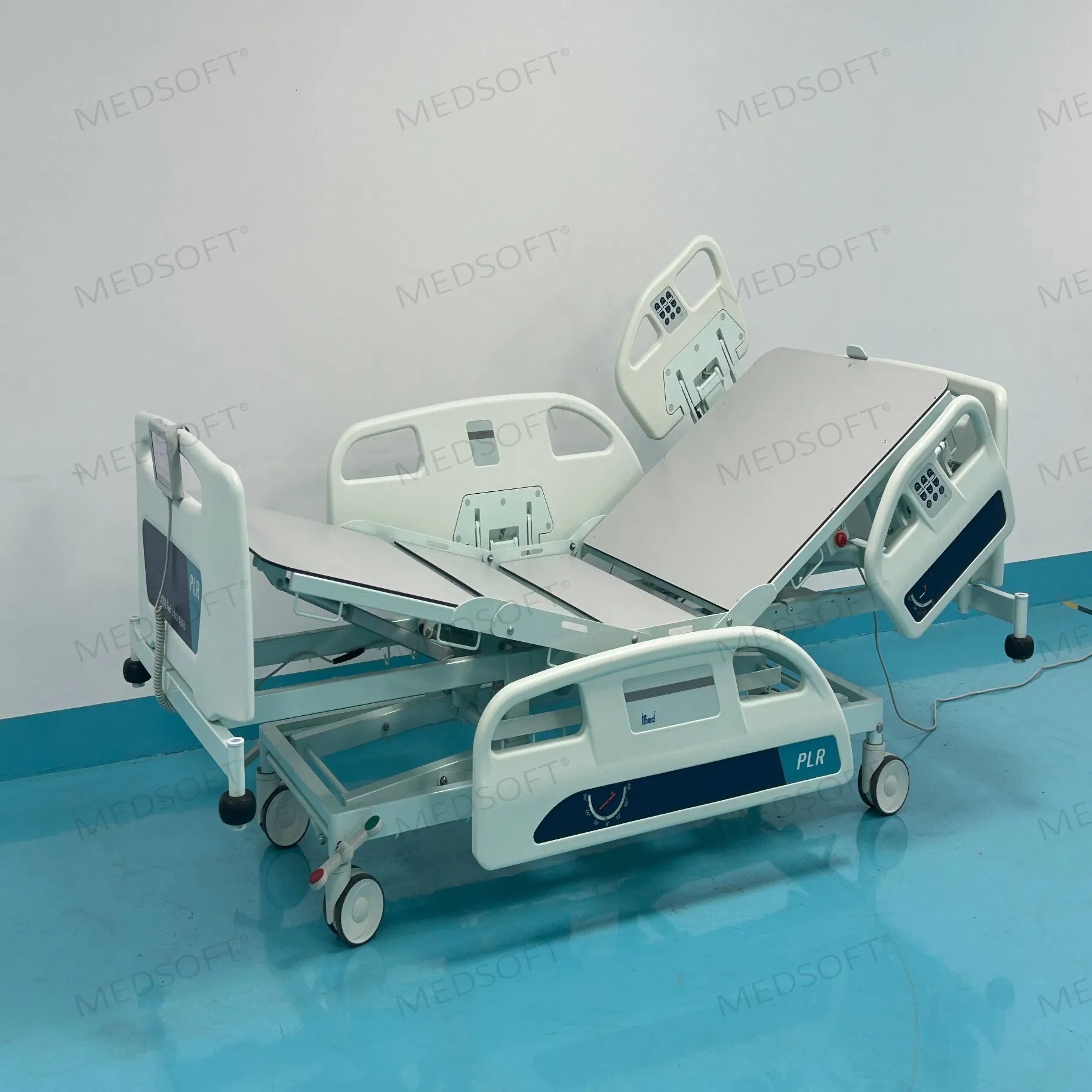

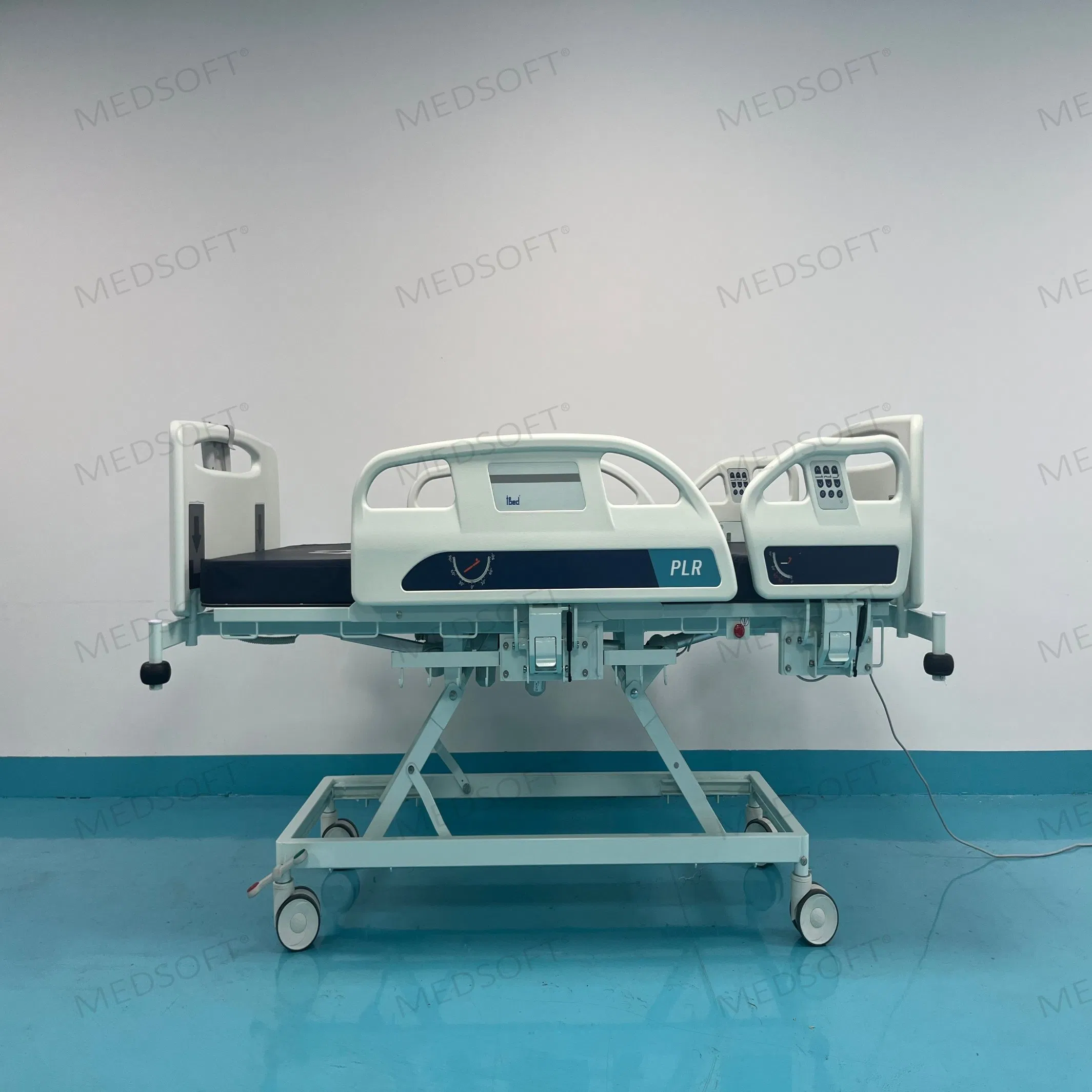

iBed PLR 3 Pro Hospital Electric Medical Bed for Enhancing Lung Capacity

1 / 5

iBed PLR 3 Pro Hospital Electric Medical Bed for Enhancing Lung Capacity

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Functions

Five-function

Certification

CE, ISO13485

Condition

New

Dimensions

2.35m * 1.15m * 0.78m

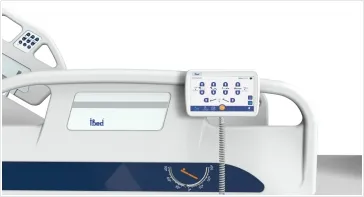

Controller

LCD / Touch Screen

Castors

Silent Central Locking Casters

HS Code

94029000

Capacity

12,000 PCS/Year

Product Description & Key Functions

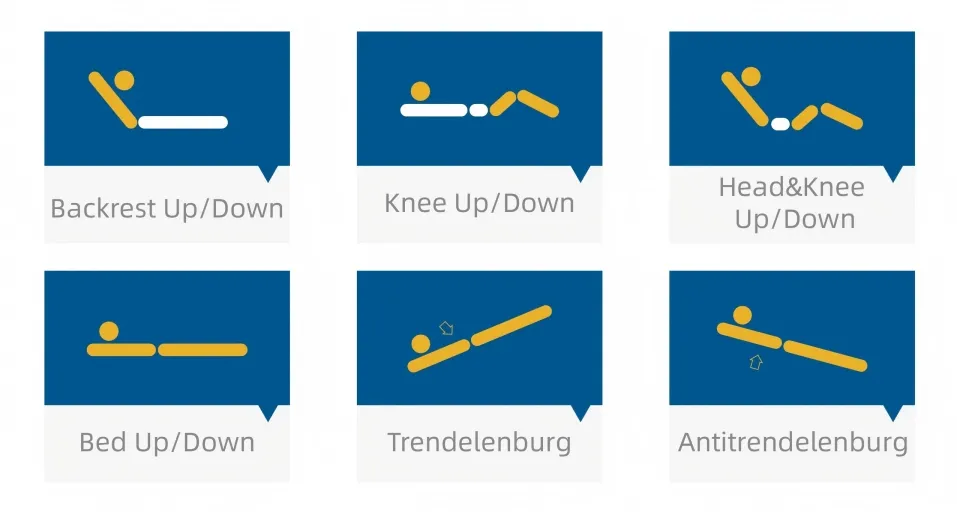

Basic Electric Functions

Electric backrest Up/Down
Electric Knee Up/Down
Electric Backrest & Knee combined Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Anti-trendelenburg

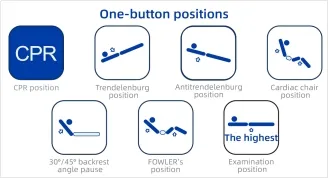

One-Button Control Positions

Cardiac chair position
Trendelenburg / Antitrendelenburg
Semi-recumbent & Fowler Position
Examination & CPR position

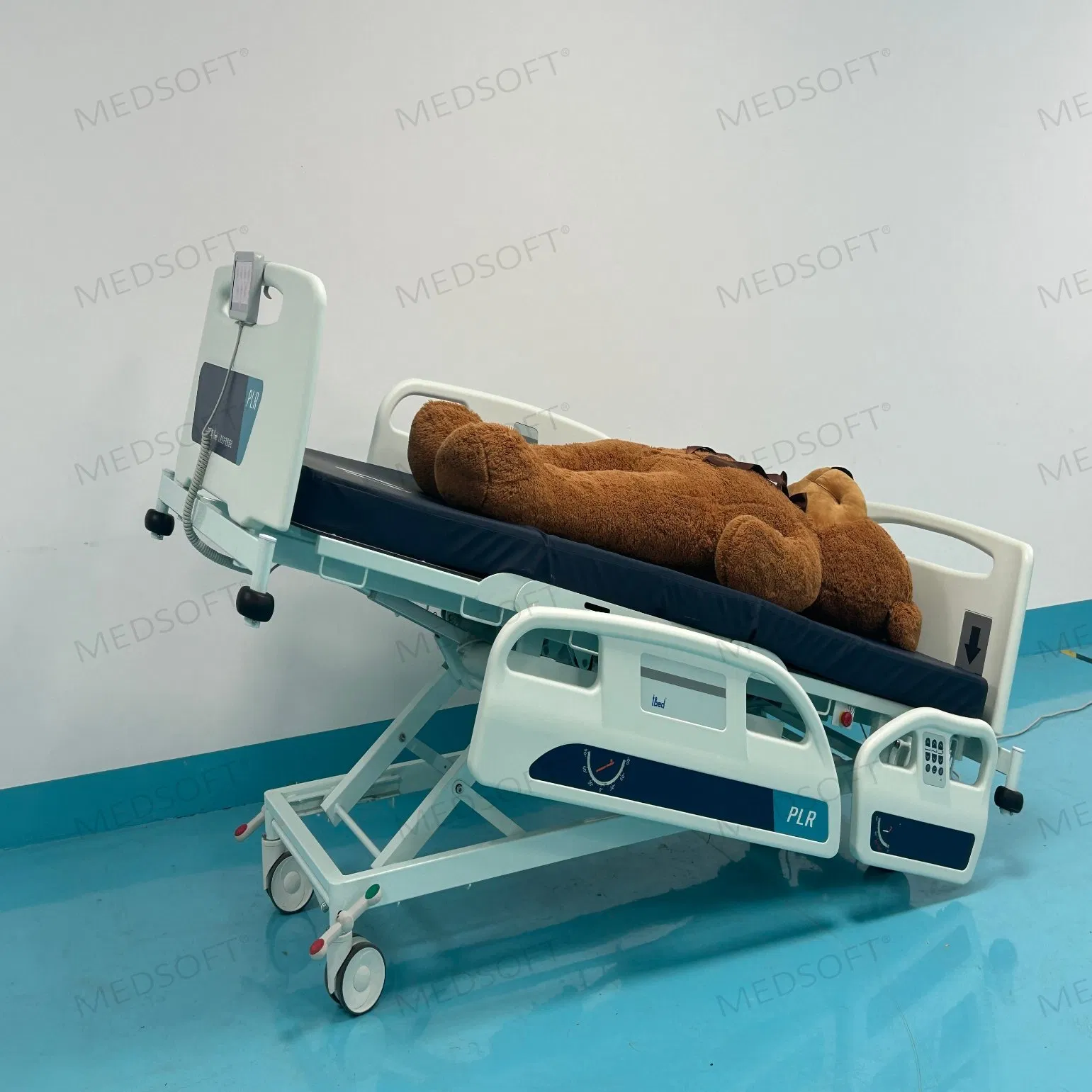

Standard PLR position achieved in 22 seconds

Advanced Nursing Systems

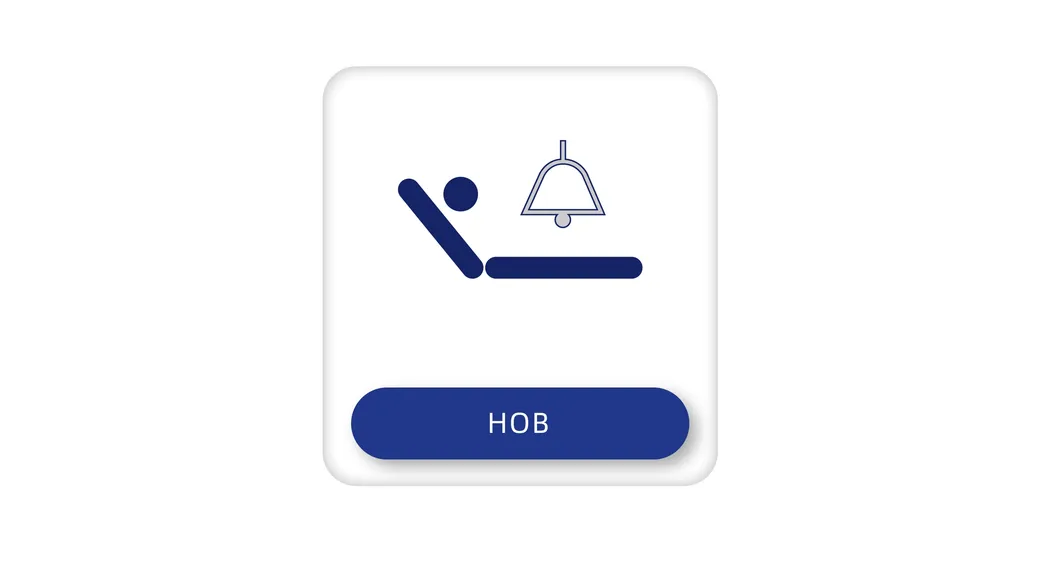

HOB Monitoring

The bed regularly checks if the back-board angle is between 30-45° and alerts medical staff via voice broadcast.

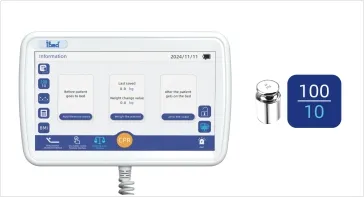

Precise Weighing System

Accuracy of 0.01Kg with data storage for 30 measurements. Includes trend charts for monitoring weight changes.

Safety & Security

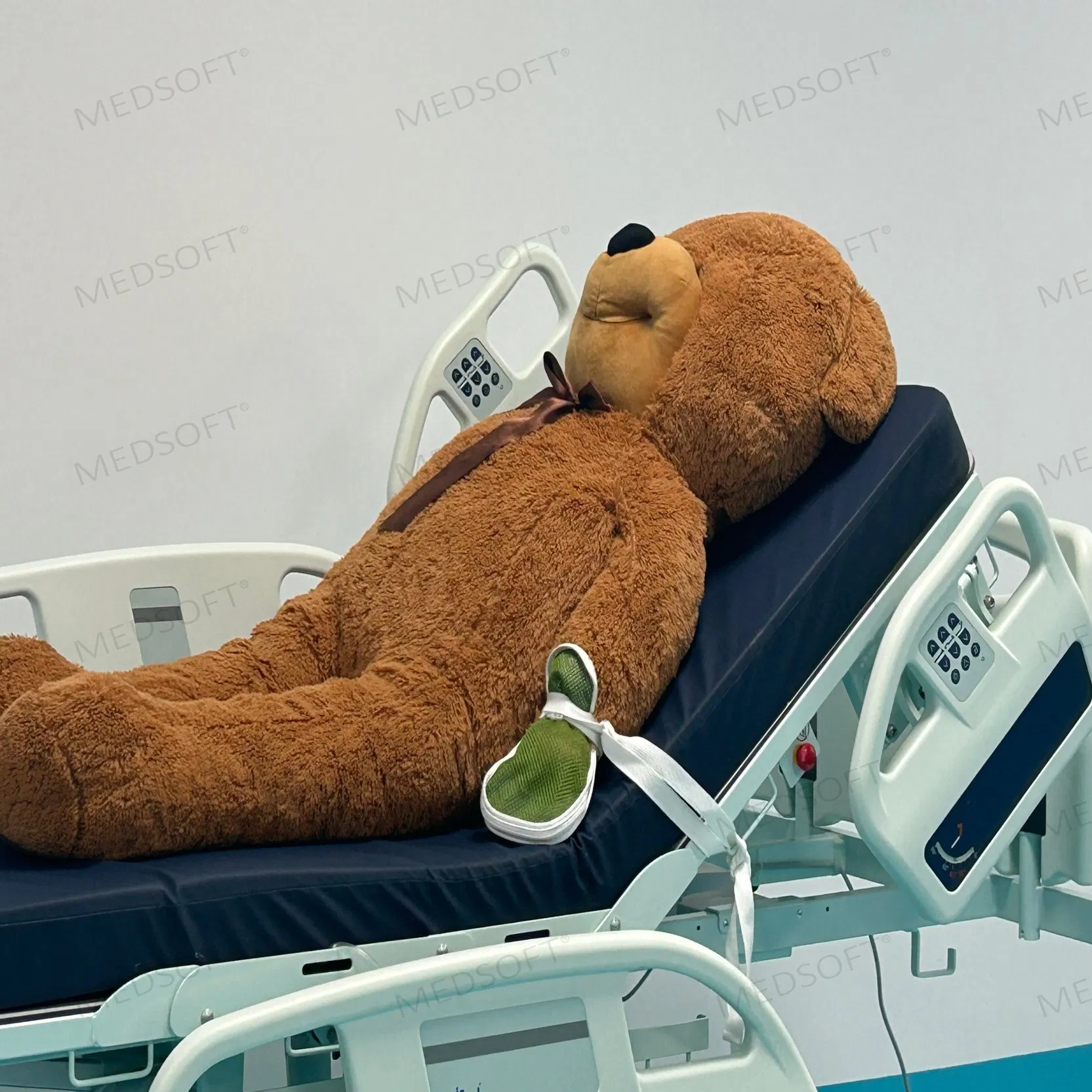

Equipped with a fall prevention structure and 12 patient restraint points for chest, wrist, and ankles.

Quality Control & Components

Linak Motor: High-stability motors from Denmark (UL/ROHS/EN Standard).
Premium Steel: Sourced from Baosteel (Fortune Global 500).
Durable Coating: Epoxy painting, ASTM anti-bacterial tested, 0.12mm thickness.
Safety Standards: IEC60601 compliant; robotic 360° smooth welding.
Mobility: 5" directional casters with 10,000-cycle tested brake system.

Technical Parameters

Parameter	Specification
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Head Up/Down	0 - 70°
Knee Up/Down	0 - 45°
Trendelenburg	0 - 16°
Bed Extension (Optional)	200 mm
Castors	5" Central Locking

Critical Care Solutions

Focusing on R&D for medical devices in critical care, our mission is to enhance patient survival rates through intelligent nursing and respiratory support technologies. Our product lines include Critical Microcirculation, Critical Care Nursing, and AI-driven analytics for precision medicine.
