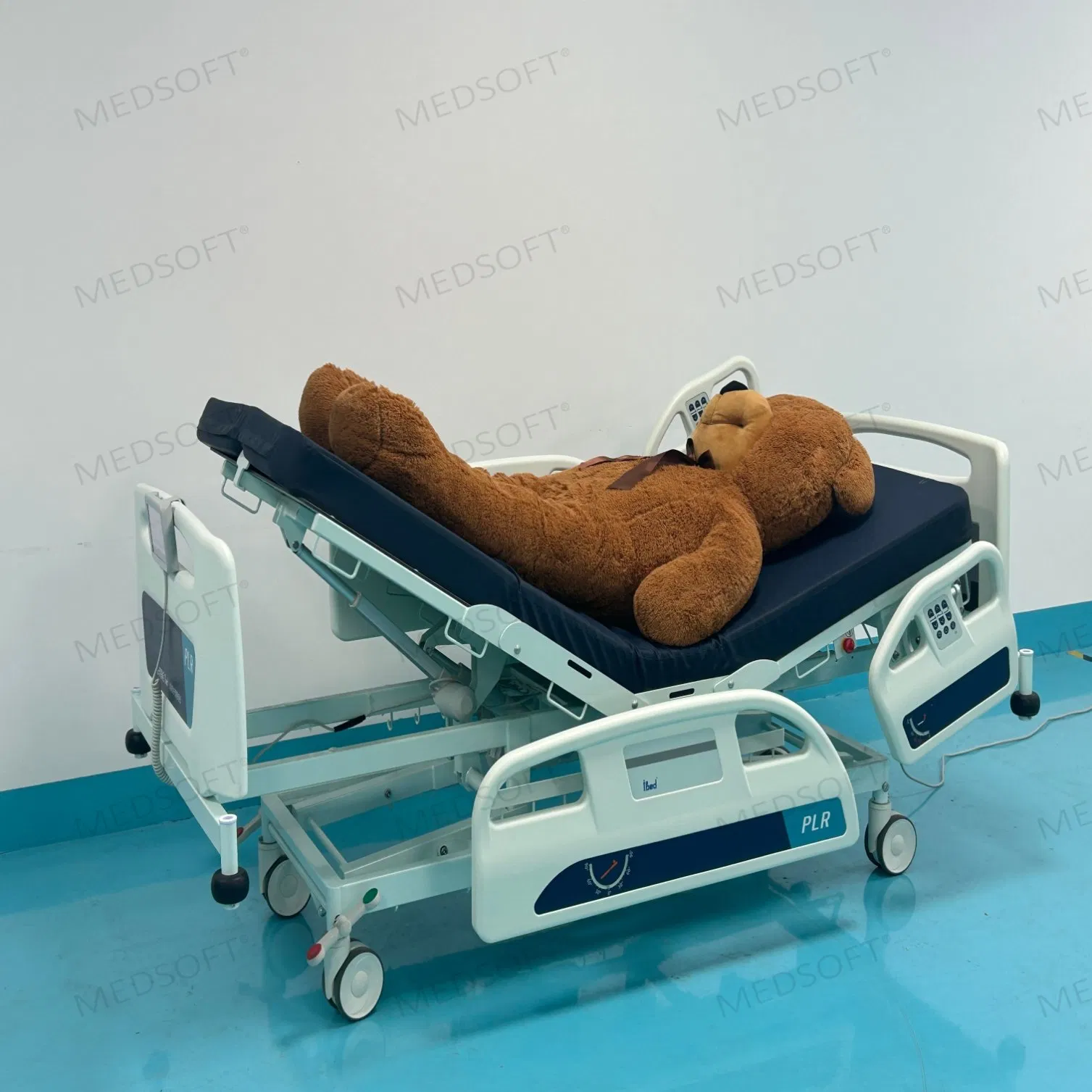

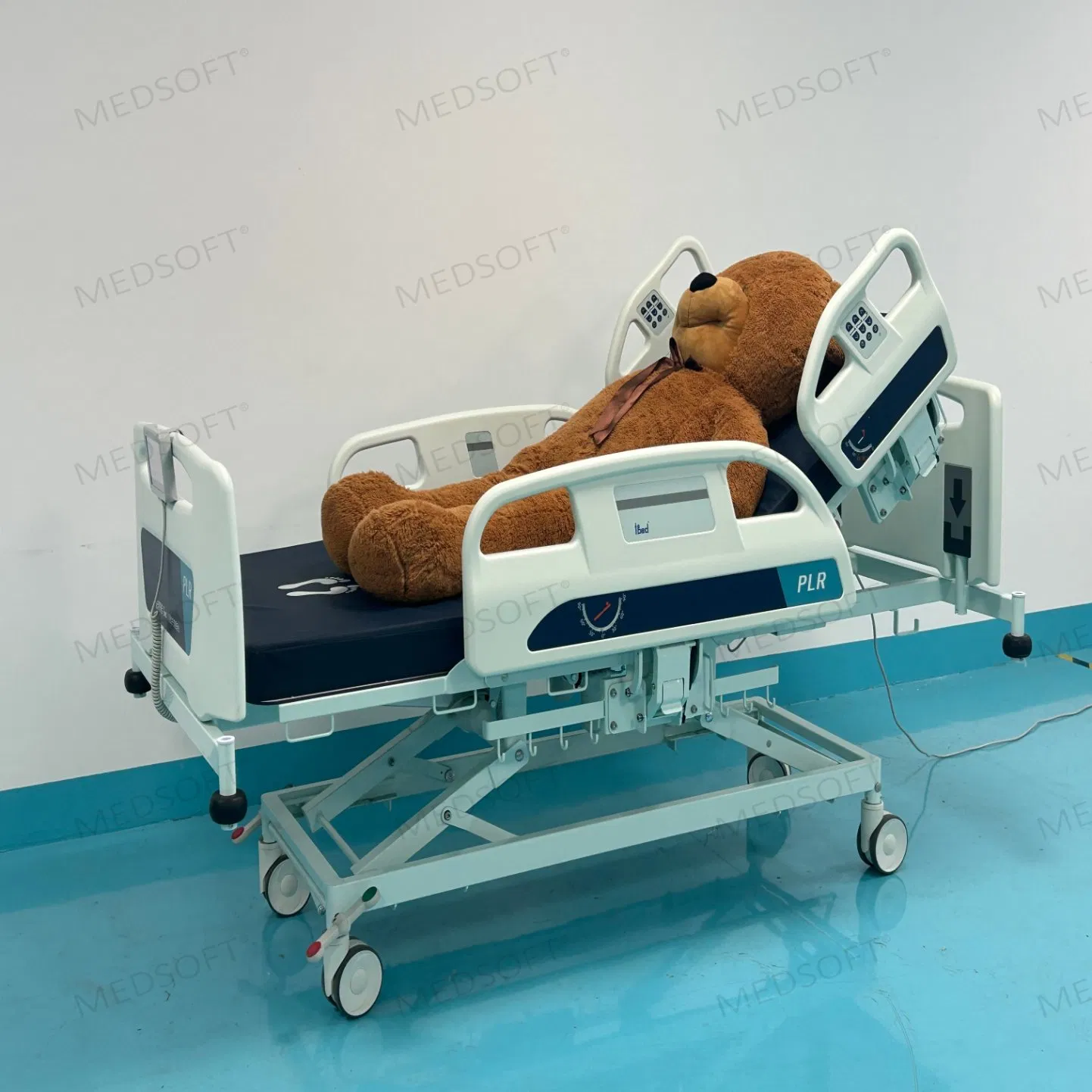

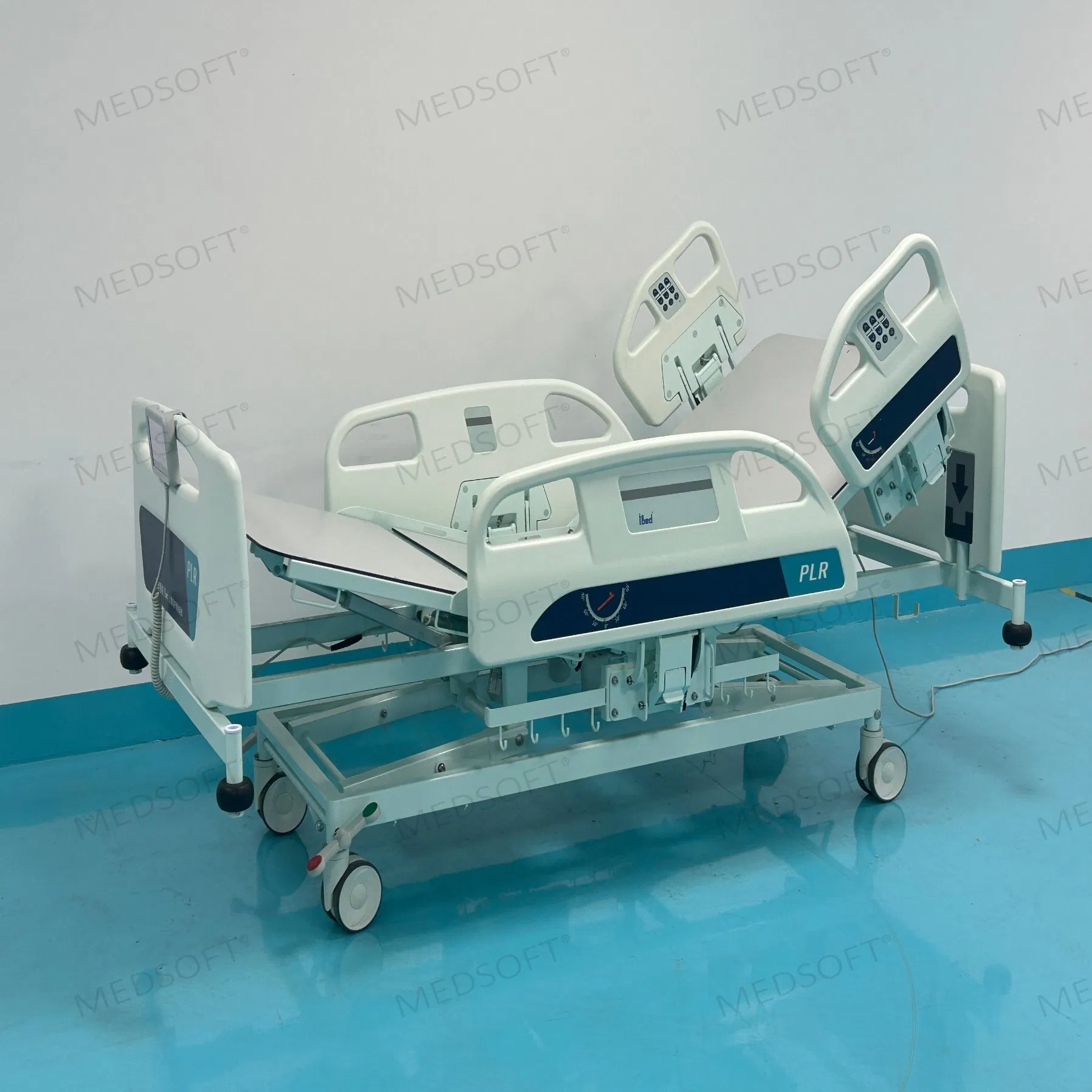

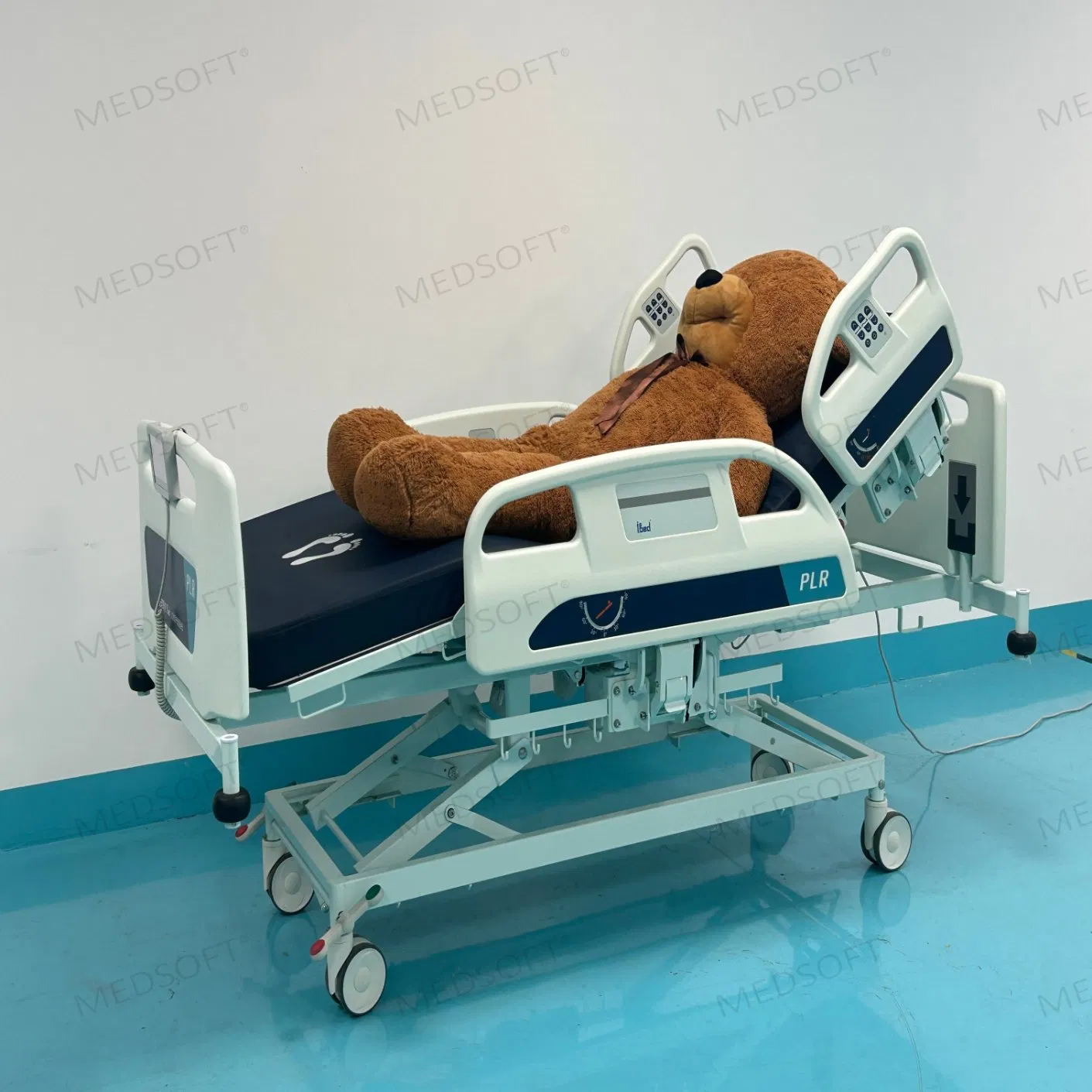

iBed PLR 3 Pro Hospital Medical Bed with Integrated Weighing

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Specifications
Model NO.
iBed PLR 3 Pro
Using Ambient
Hospital
Functions
Five-function
Certification
CE, ISO13485
Condition
New
Dimensions
2.35m * 1.15m * 0.78m

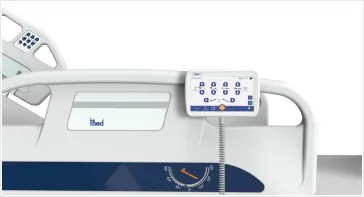

Controller
7-inch LCD Touch Screen

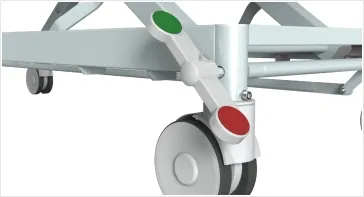

Castors
Silent Central Locking Casters
Capacity
Safe Working Load 230kg
🚀 Key Product Features

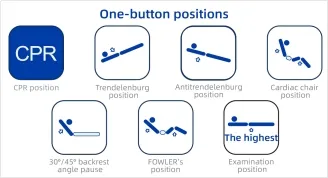

🔹 Integrated Position Control

  • One-Button cardiac chair position
  • One-Button Trendelenburg & Antitrendelenburg
  • One-Button semi-recumbent & Fowler Position
  • One-Button Examination & CPR position
  • Standard PLR position achieved in 22 seconds
One-button control

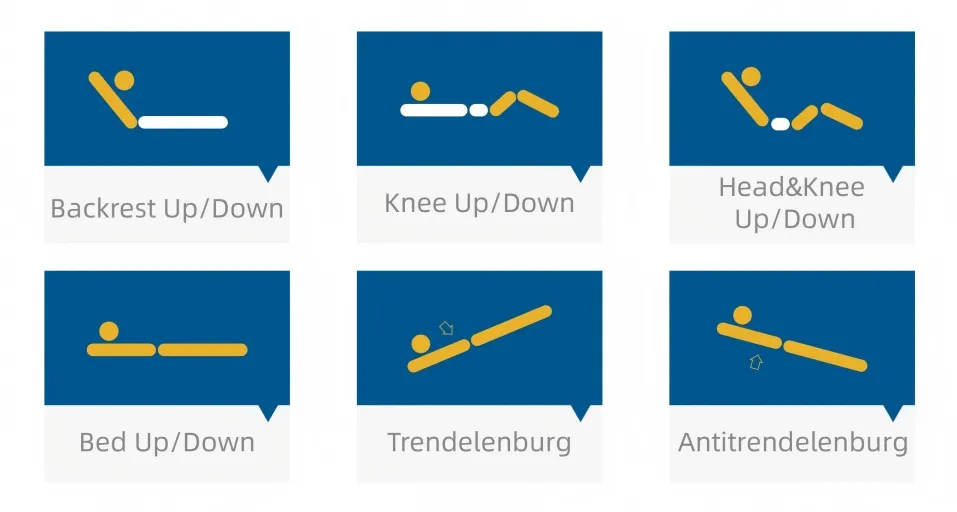

Basic Functions

🔹 Essential Electric Adjustments

  • Electric Backrest Up/Down
  • Electric Knee Up/Down
  • Combined Backrest & Knee Adjustment
  • Full Bed Height Adjustment (Up/Down)

🔹 Intelligent Monitoring

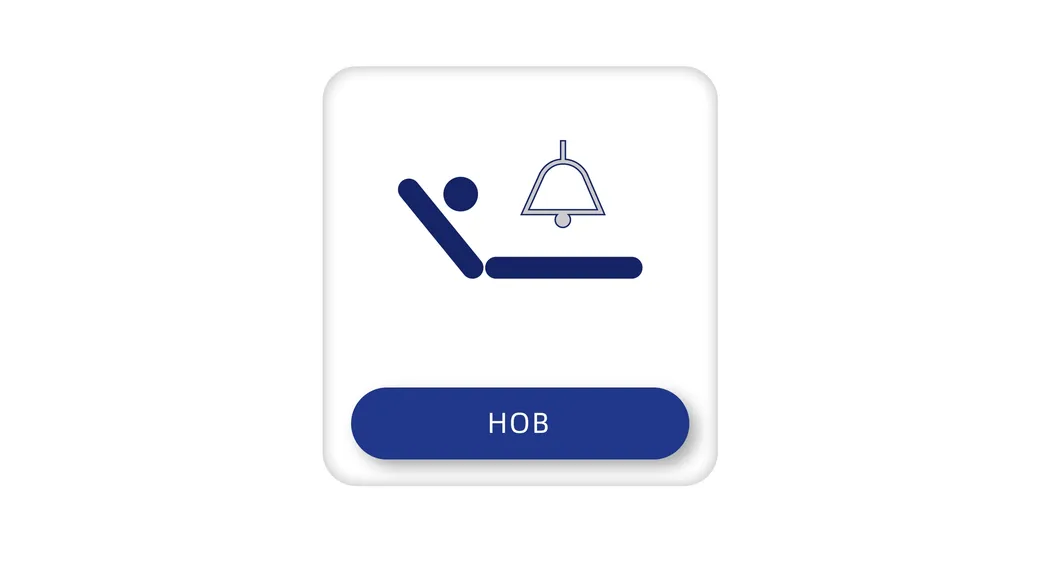

HOB Angle Check: The bed regularly monitors if the back-board angle is between 30-45° and provides voice broadcast reminders to medical staff.

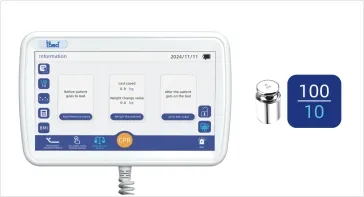

Precision Weighing: System with 0.01Kg accuracy and storage for up to 30 measurements with trend chart display.

HOB Angle Check
🛡️ Safety & Quality Control
  • Fall Prevention: High-strength structure with gravity-locked guardrails.
  • Auto-Rollback: Reduces displacement and shear force during position adjustment.

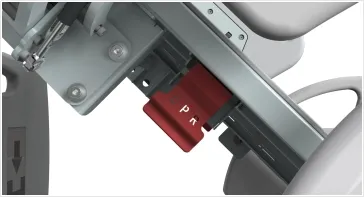

  • Manual CPR: Dual-sided levers with damping for controlled backrest descent.
  • Patient Restraint: 12 fixation sites for chest, wrists, and ankles.
  • Night Light: Under-bed lighting for safe nocturnal movement.

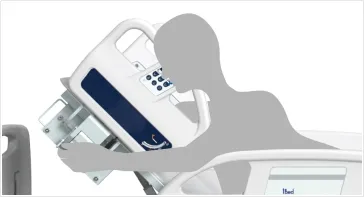

Safety Features
📊 Technical Parameters
Parameter Details
Overall Size (L*W*H)2200*1035*(415-785)mm
Mattress Platform2000 * 811mm
Safe Working Load230kg
Head Up/Down0-70°
Knee Up/Down0-45°
Trendelenburg/Antitrendelenburg0-16°
Motor System5pcs Linear Motors (Linak Denmark)
Casters5" Central Locking System

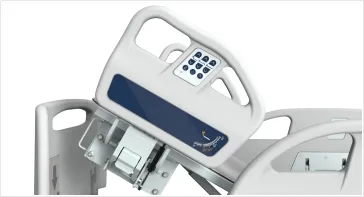

Side RailsHDPE with integrated control panels
🛠️ Standard & Optional Accessories
  • X-Ray Translucent Mattress Platform
  • HDPE One-Step Removable Bed Ends
  • Bed Extension (200mm adjustment)
  • Bumper Wheels (Φ74mm)
  • Battery Backup (up to 130 movements)
  • Full SS IV Pole & Lifting Pole
❓ Frequently Asked Questions
Can I obtain a sample for evaluation?
Yes, samples are available. Please contact our support team for more details on sample procurement.
Are OEM or custom branding options available?
Yes, we support custom logos and designs on our products to meet your specific branding requirements.
What is the production capacity for this model?

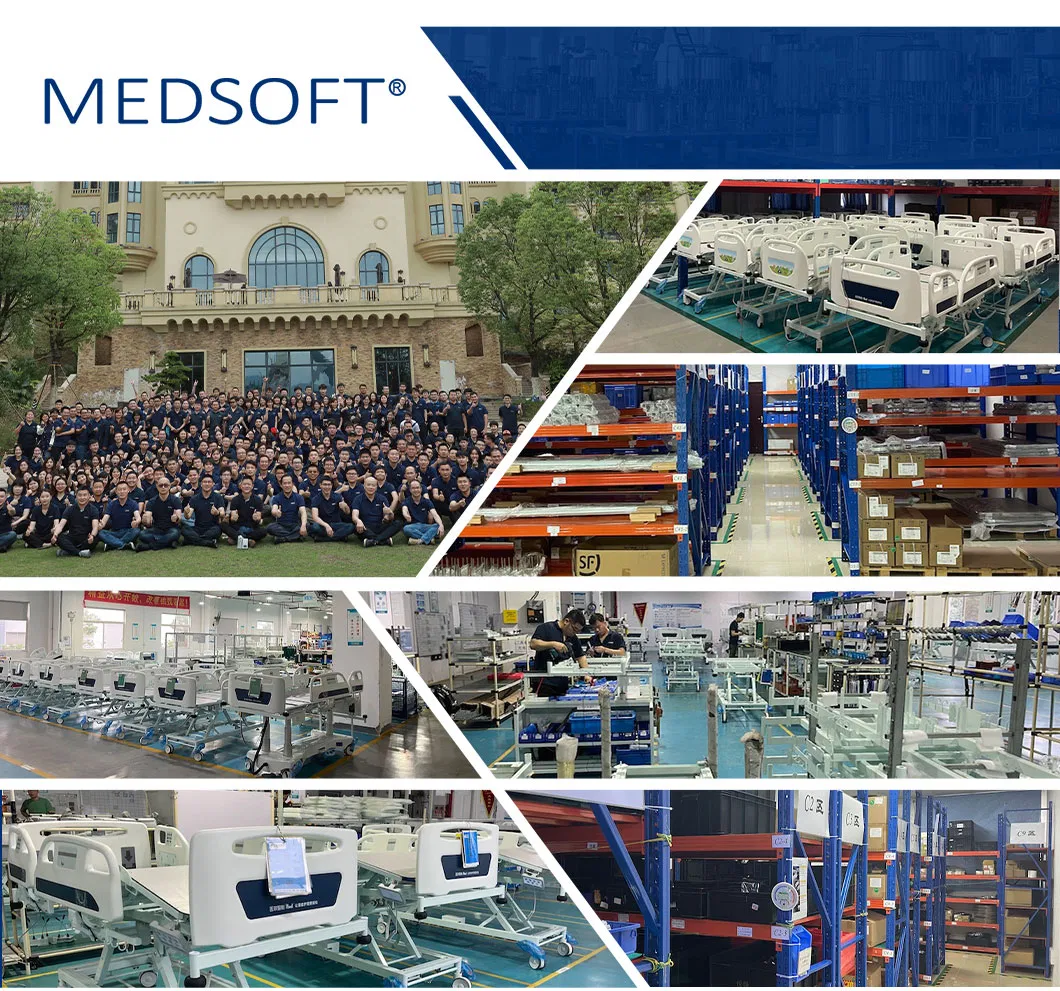

Our facility has a production capacity of approximately 1,000 beds per month.
How long does delivery typically take?
Standard products in stock are generally shipped within 7 days of order confirmation.
What quality standards do these beds meet?
Our medical beds comply with international standards including CE, ISO13485, and IEC60601 safety protocols.
Is there a battery backup system included?
Yes, the bed is equipped with a battery capable of supporting over 100 movements without a direct power source.
