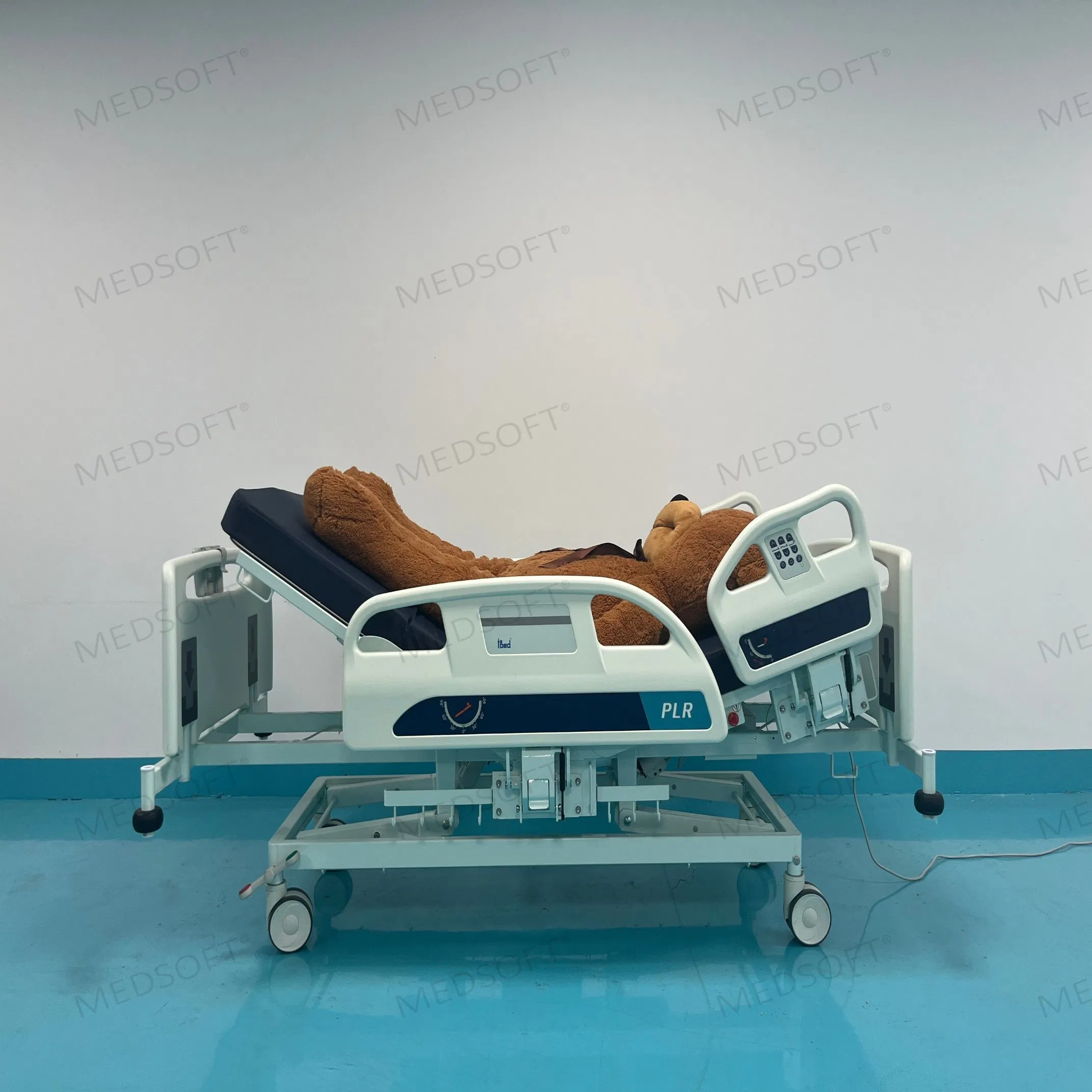

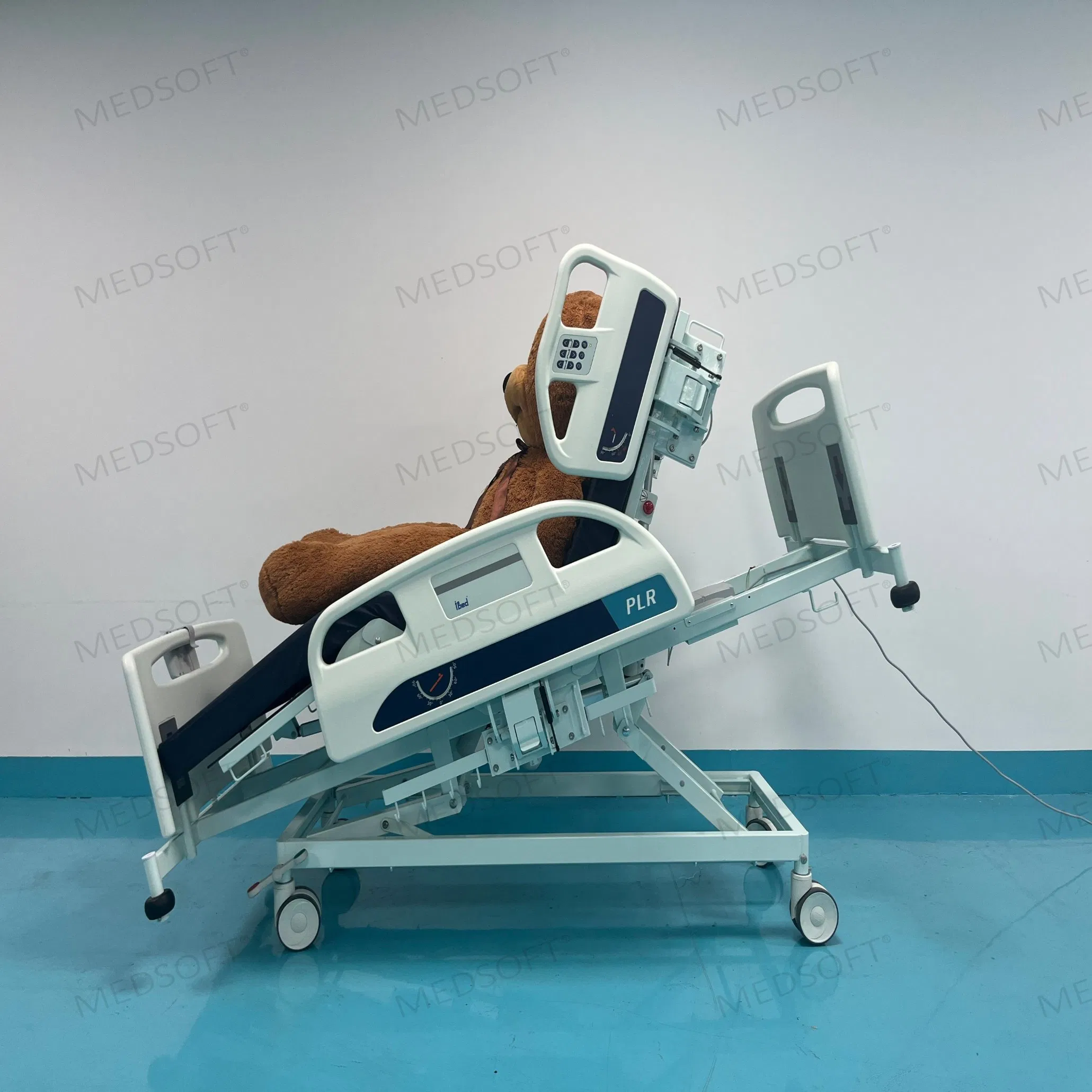

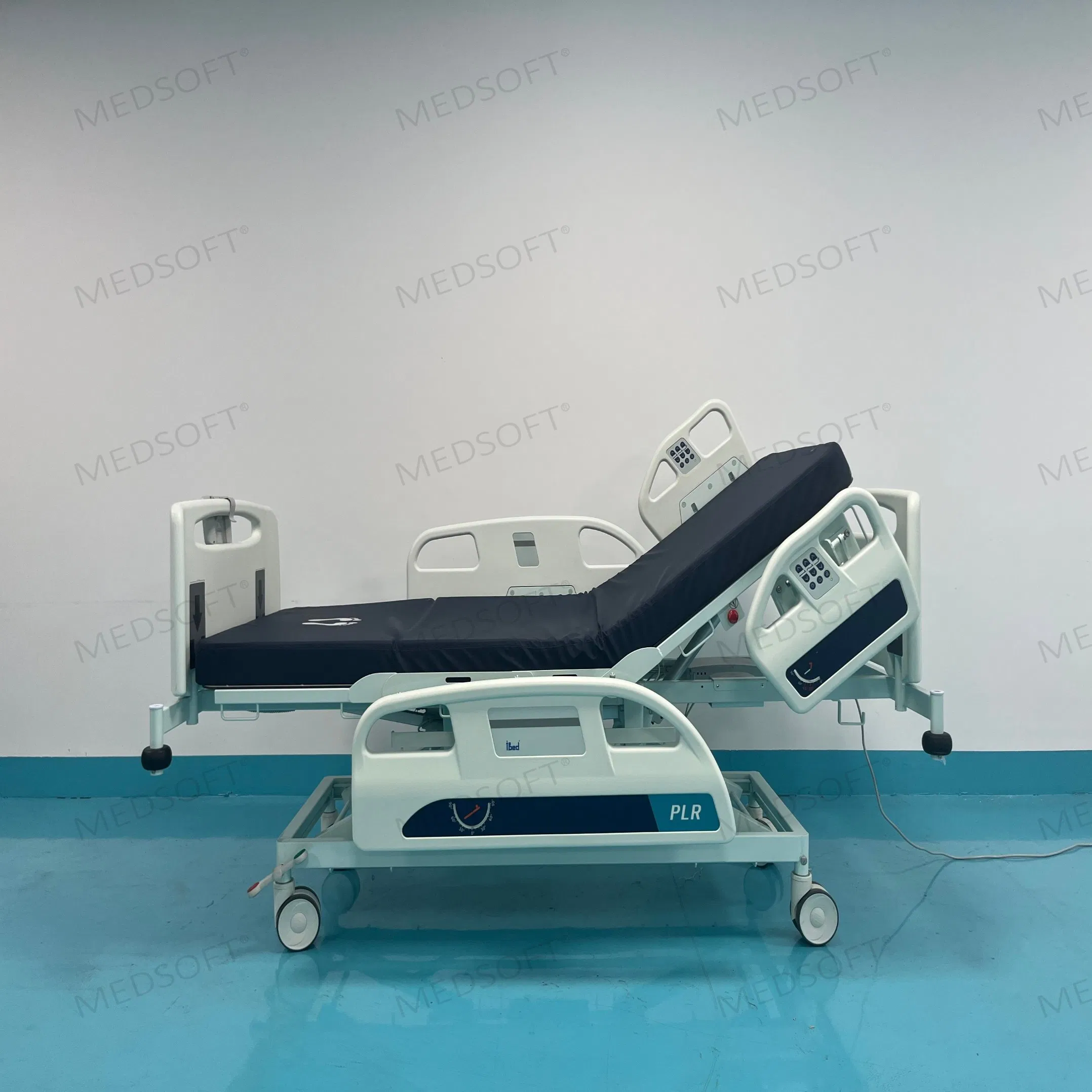

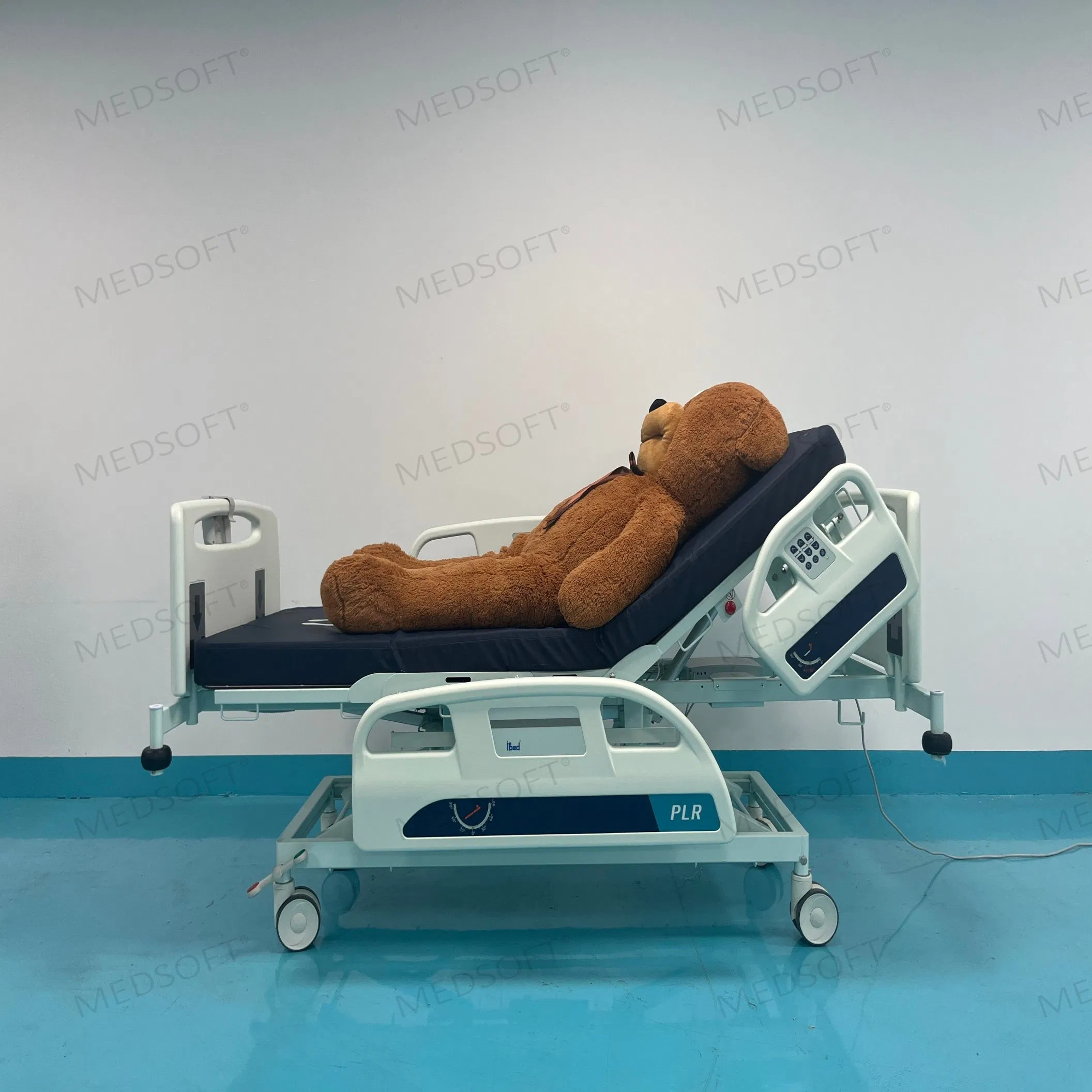

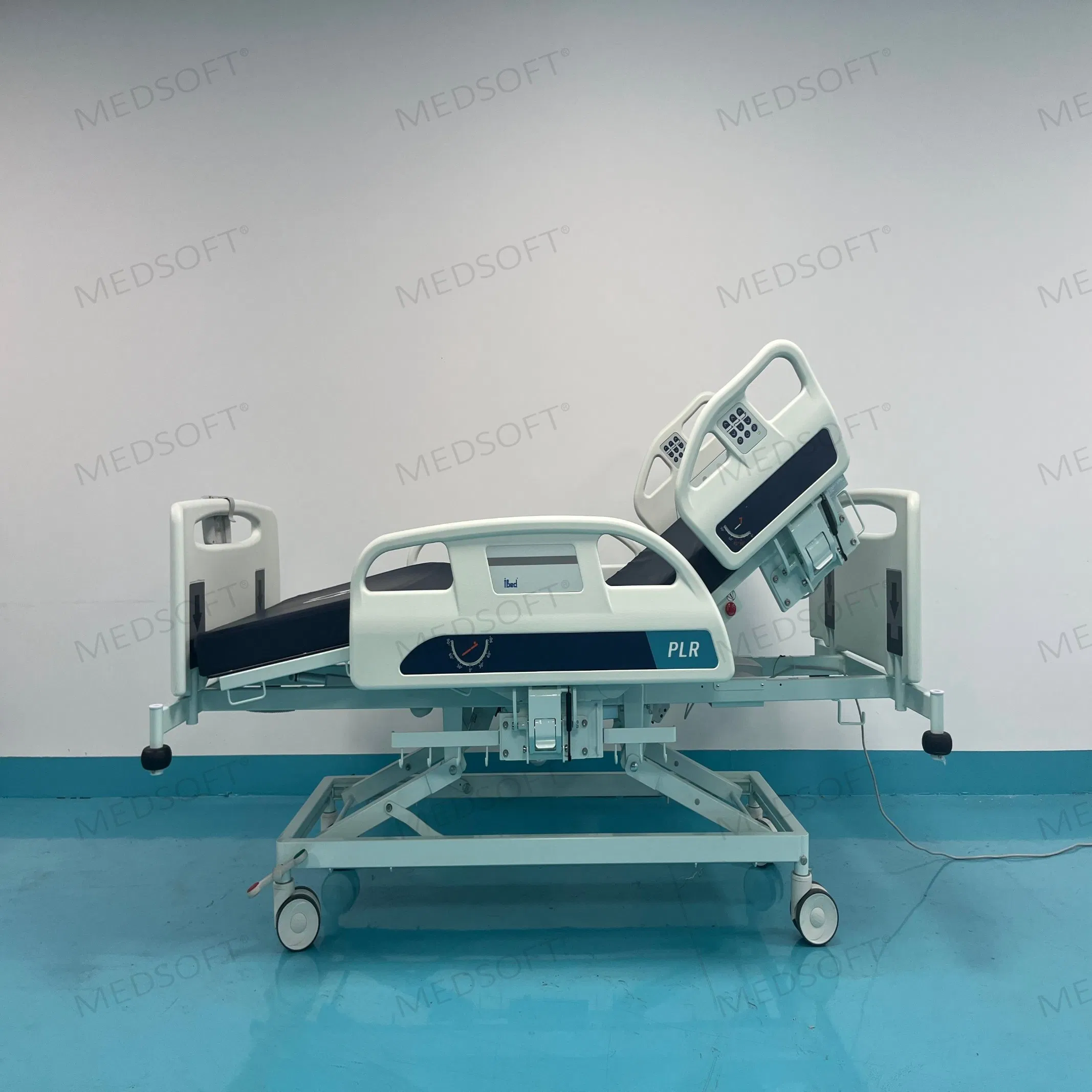

iBed PLR 3 Pro Hospital Medical Bed with Centralized Braking

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Numbers of Function

Five-function

Certification

CE, ISO13485

Condition

New

Dimensions

2.35m * 1.15m * 0.78m

Controller

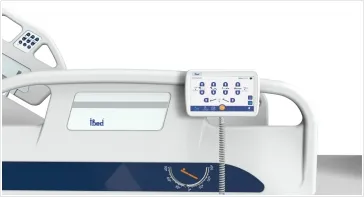

7-inch LCD Touch Screen

Casters

Silent Centralized Braking

HS Code

94029000

Capacity

12,000 PCS/Year

Key Functions & Intelligence

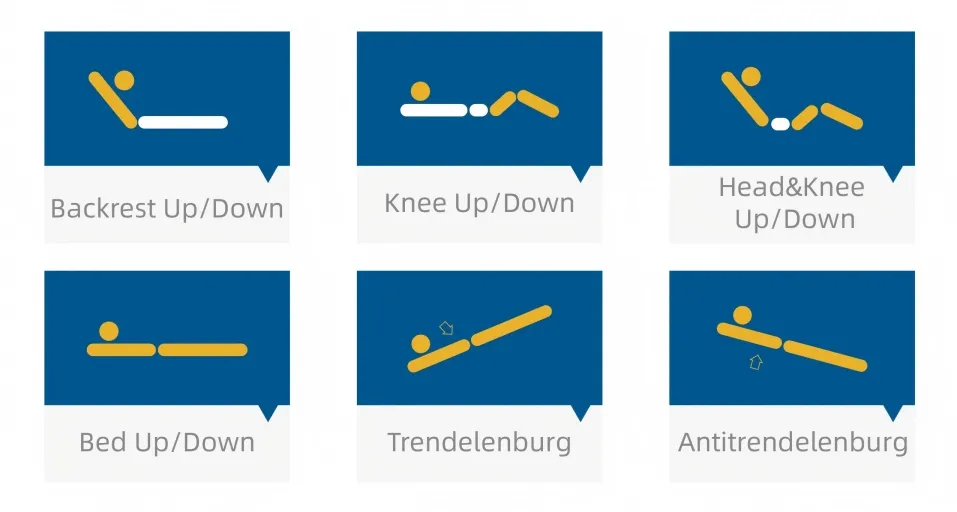

⚡ Basic Electric Functions:

Electric backrest Up/Down
Electric Knee Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Antitrendelenburg

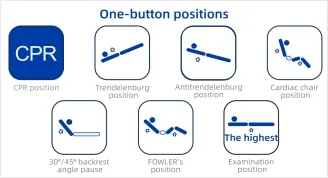

🔘 One-Button Control Positions:

Cardiac chair & Fowler Position
Trendelenburg & Antitrendelenburg
CPR position & Examination position
Standard PLR position (Achieved in 22s)

🛡️ Safety & Monitoring:

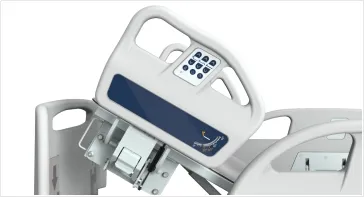

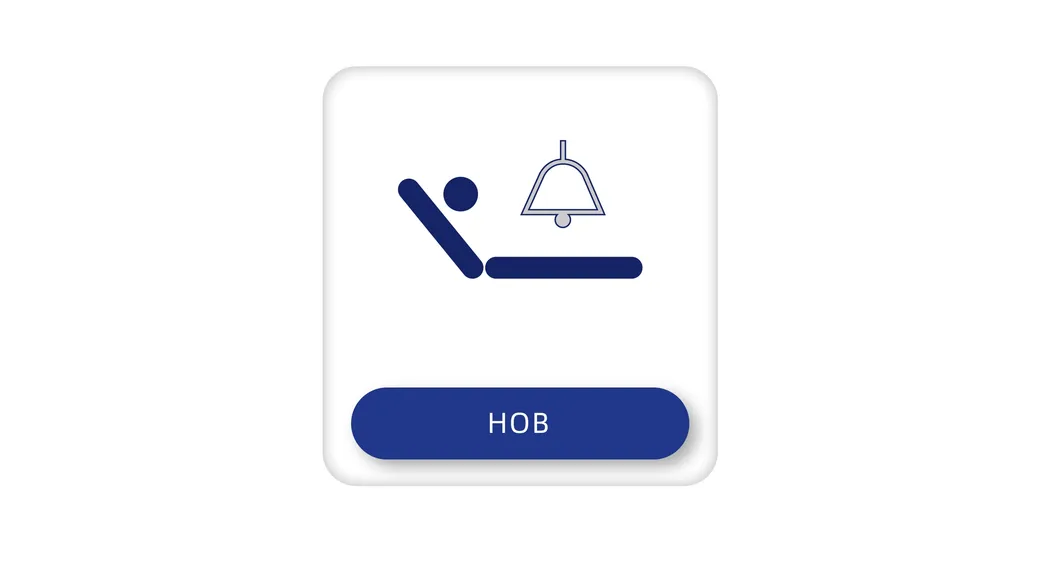

HOB Monitoring: Automatically checks back-board angle (30-45°) and alerts staff via voice broadcast.

Weighing System: 0.01Kg accuracy with storage for 30 measurements and trend charts.

Fall Prevention: High-strength structure with gravity-locked guardrails.

⚙️ Advanced Mechanics:

Auto-Rollback: Reduces displacement and shear force during body adjustments.

Central Braking: Four-wheel linkage system for easy locking and direction control.

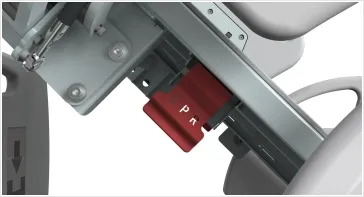

Manual CPR: Dual-sided levers with damping for controlled backrest descent.

Technical Parameters

Parameter	Specification
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Head Up/Down Angle	0 - 70°
Knee Up/Down Angle	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Motor System	Linak (Denmark) 5 pcs

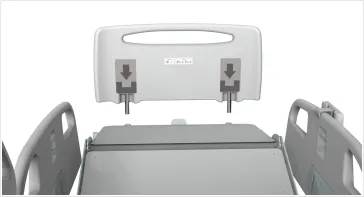

Bed Ends	HDPE, One-step Removable

📋 Quality Standards:

Linak motor (Denmark) for stability
Fortune Global 500 Baosteel material
10,000 times uninterrupted brake test
Anti-bacterial epoxy painting (ASTM tested)
360° full smooth robotic welding

🛠️ Included Accessories:

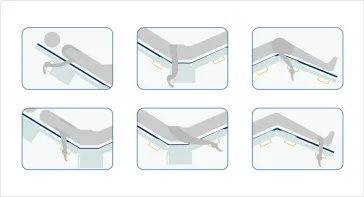

12 Patient Restraint Points
X-Ray Translucent Mattress Platform
Bumper Wheels (φ74mm)
Full SS IV Pole (15kg capacity)
Backup Battery (up to 130 movements)

Frequently Asked Questions

Q1: Can I request a sample of the iBed PLR 3 Pro? Yes, samples are available upon request to evaluate the quality and functionality.

Q2: Does the bed support custom branding or OEM designs? Yes, we support using your own logo or design on the product.

Q3: What is the standard delivery time for orders? Most products are in stock and can be shipped within approximately 7 days.

Q4: What is the monthly production capacity for these medical beds? Our factory has a production capacity equivalent to approximately 1,000 beds per month.

Q5: Which motor brand is used in the electric system? We use high-quality Linak motors from Denmark, ensuring durable stability and compliance with UL/ROHS standards.

Q6: Is the bed suitable for X-ray imaging in ICU settings? Yes, the bed features an X-ray translucent mattress platform specifically designed for ICU and emergency requirements.
