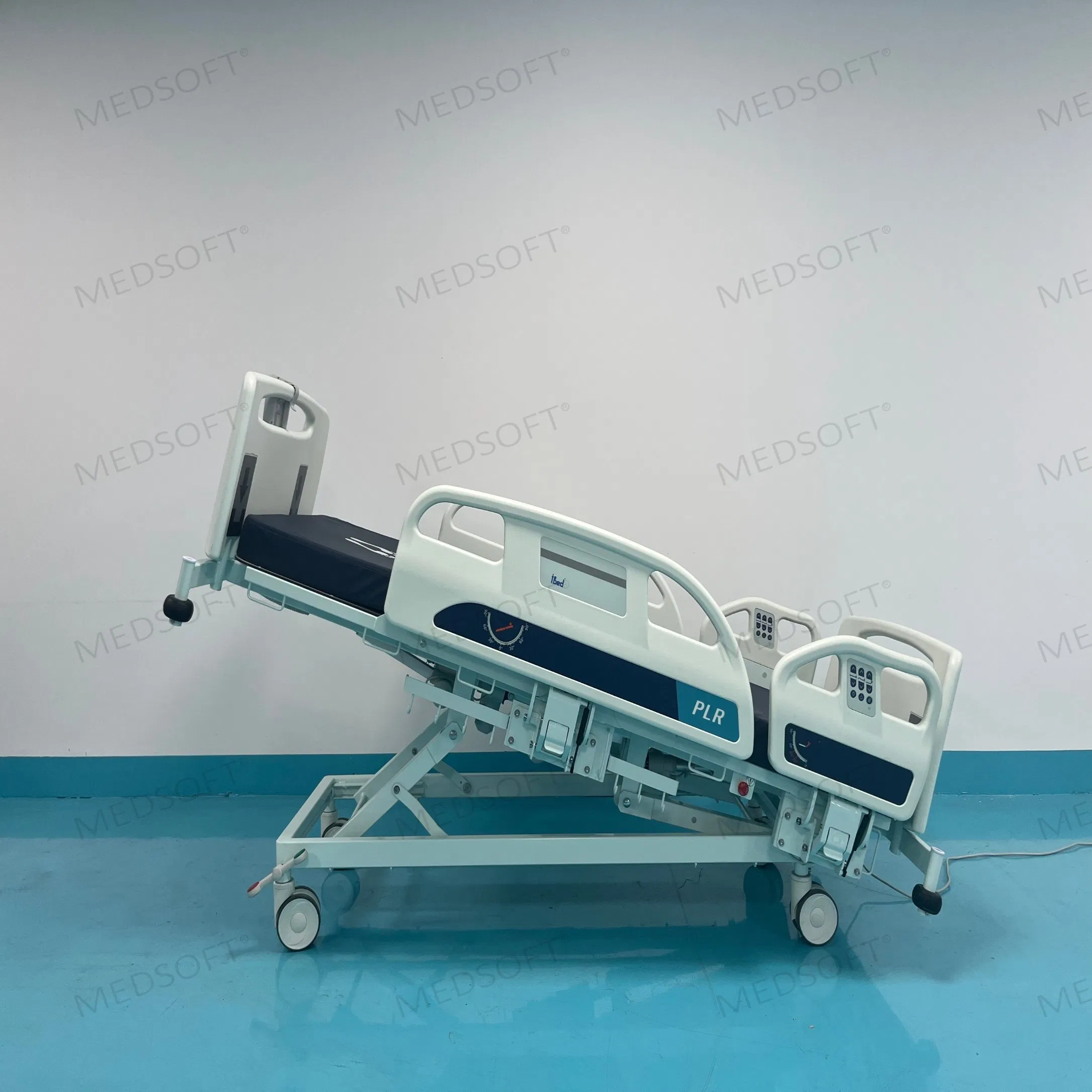

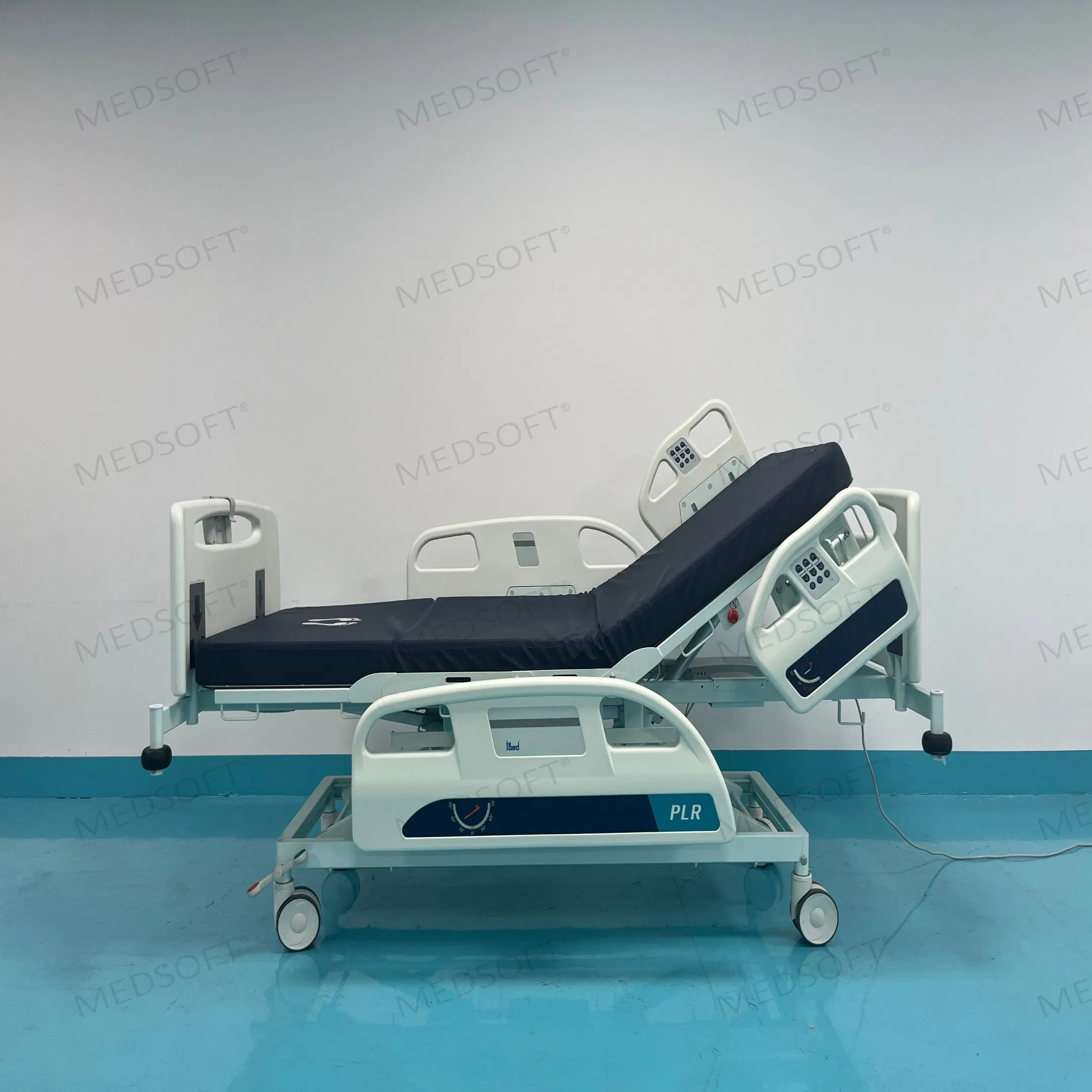

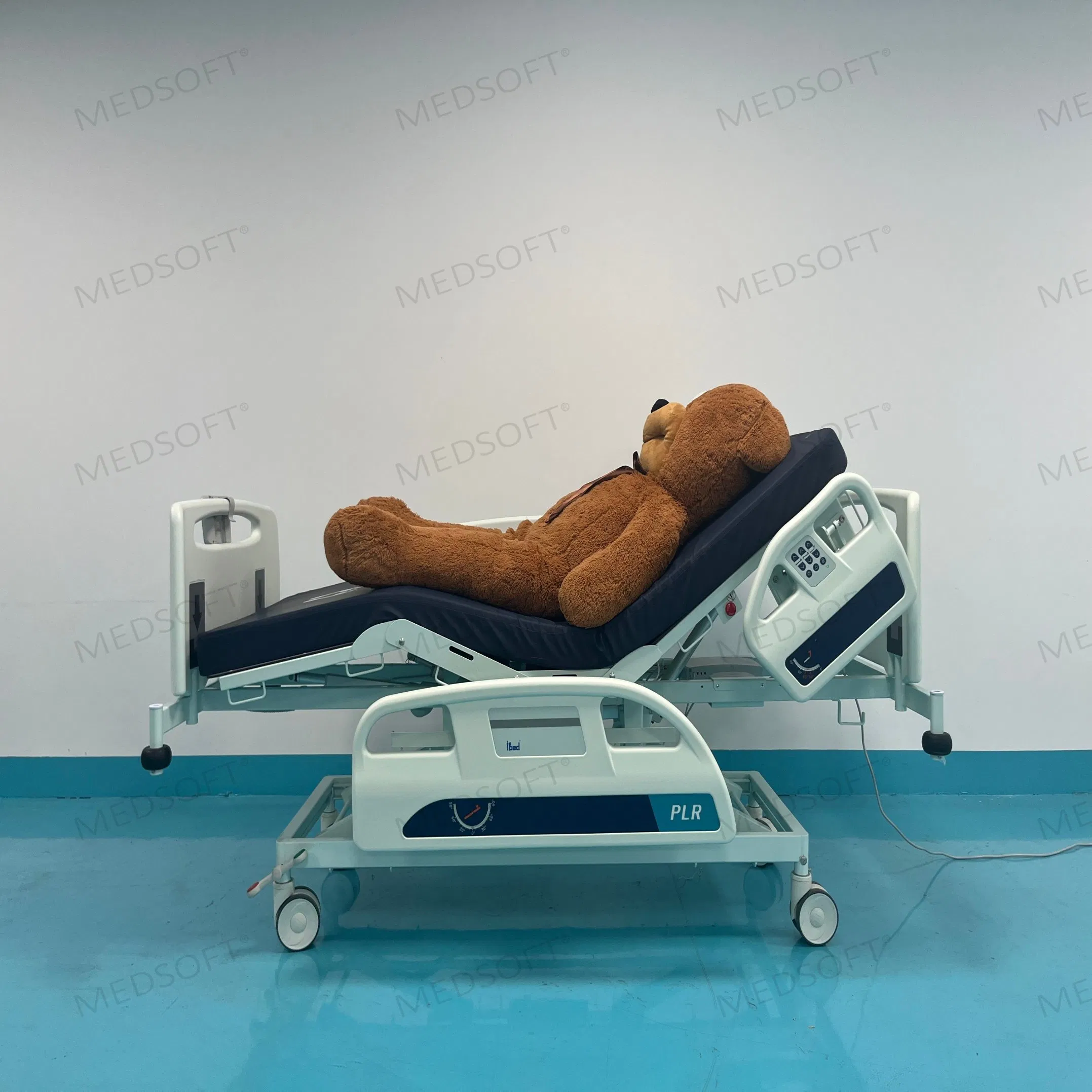

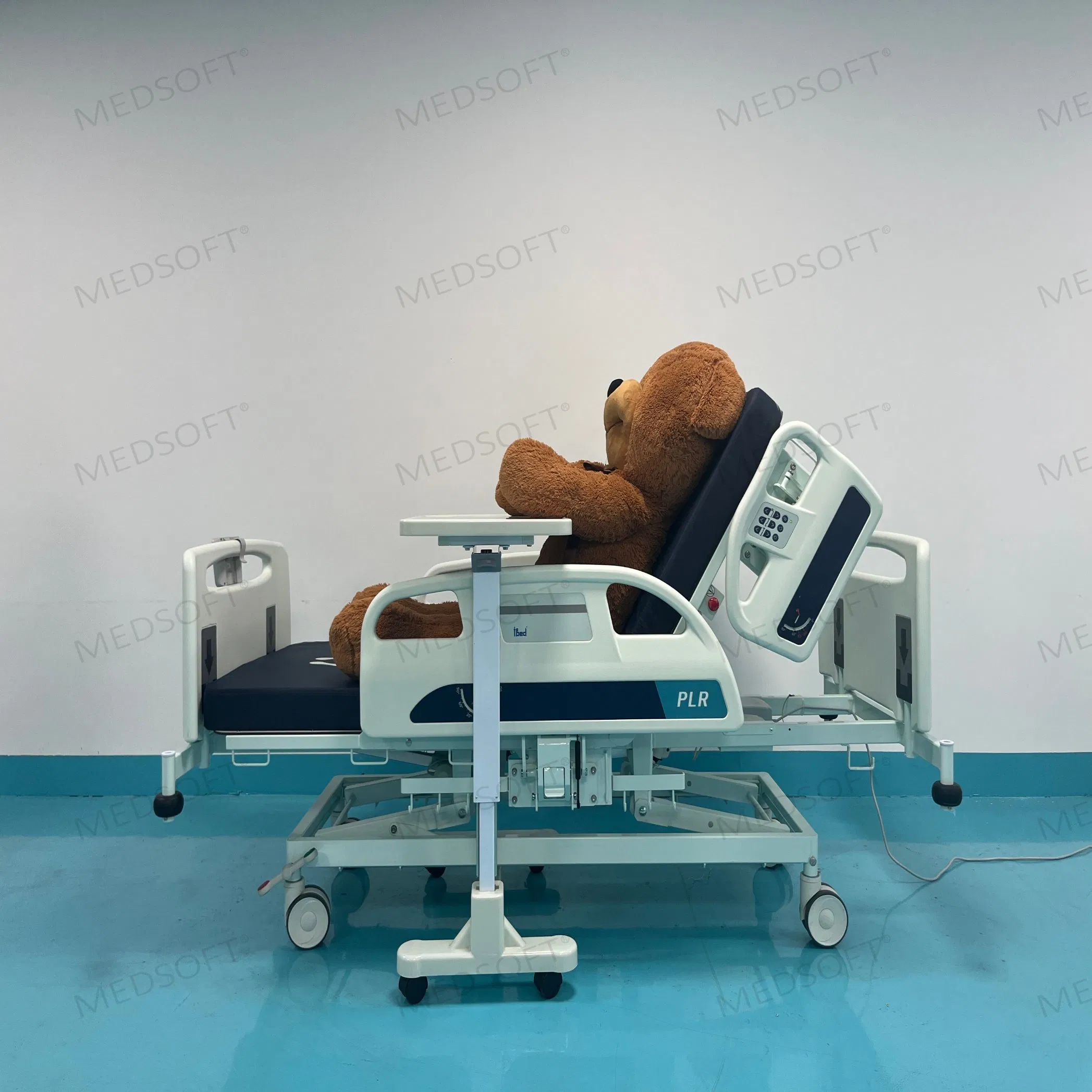

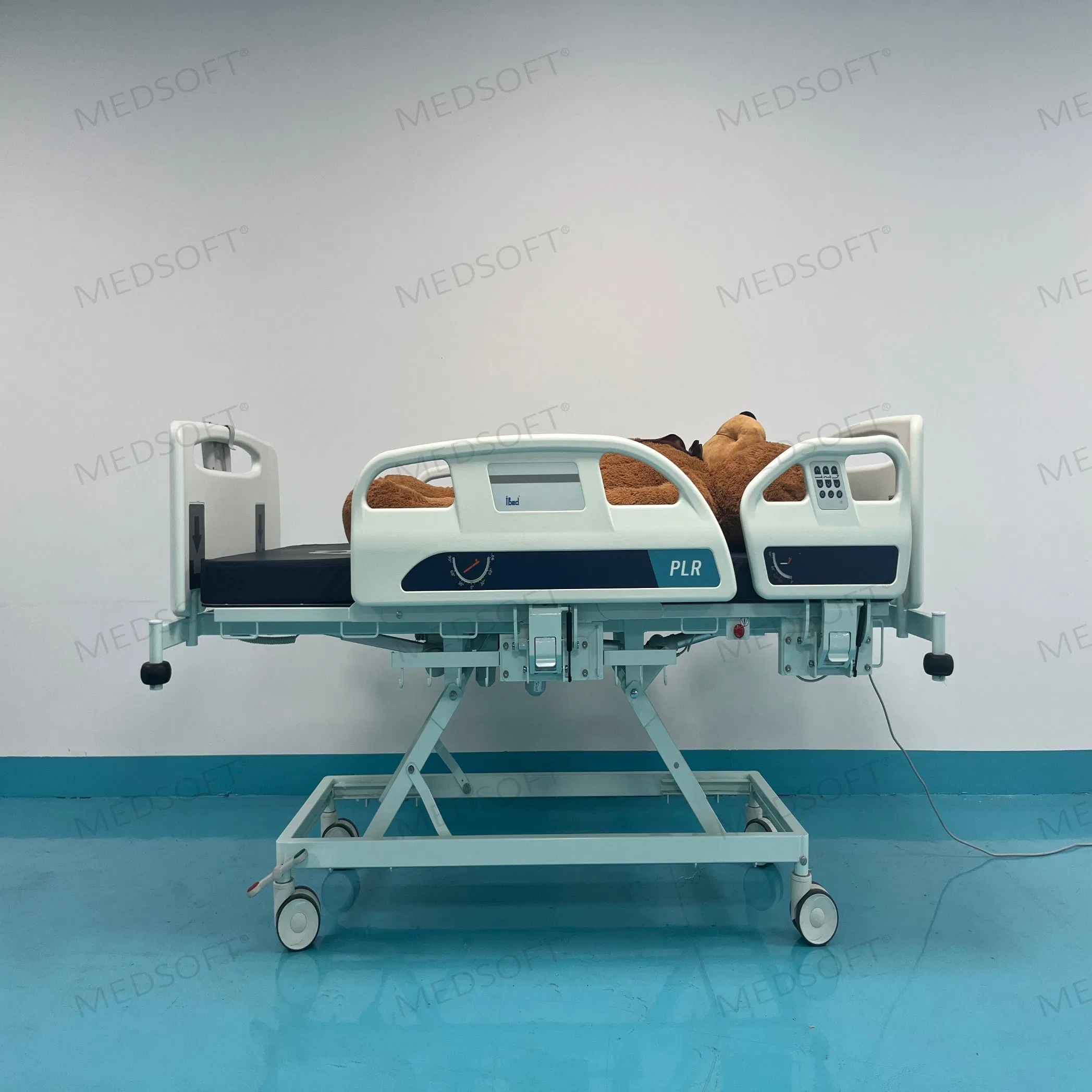

iBed PLR 3 Pro Bed with Weighing and Fluid Management

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Numbers of Function

Five-function

Certification

CE, ISO13485

Condition

New

Controller

7-inch LCD Touch Screen

Castor

Silent Central Locking Casters

Production Capacity

12,000 PCS/Year

Core Functionalities

⚡

Basic Functions:

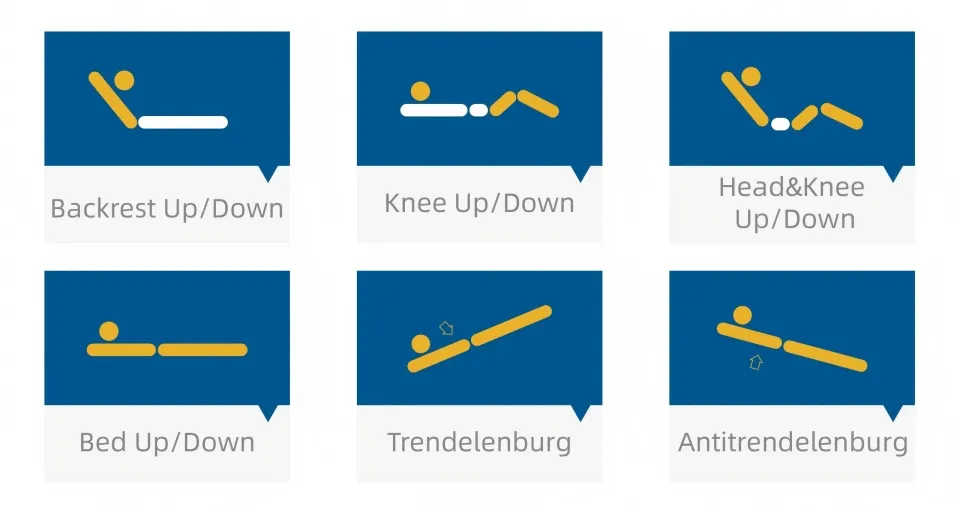

Electric Backrest Up/Down, Knee Up/Down, Bed Up/Down, Trendelenburg, and Antitrendelenburg positions.

🔘

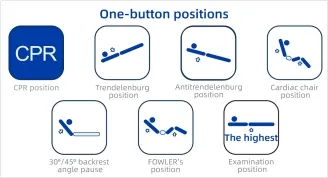

One-Button Control Positions:
Includes Cardiac Chair, Trendelenburg, Antitrendelenburg, Semi-recumbent, Fowler, Examination, and CPR positions.

📏

Weighing & Fluid Management:

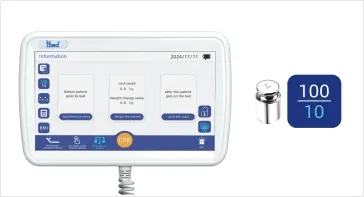

High-accuracy weighing system (0.01Kg) with data storage for up to 30 measurements and trend chart display for weight change monitoring.

Safety and Intelligent Systems

HOB (Head of Bed) Monitoring: Voice broadcast alerts if back-board angle is between 30-45° for optimal patient care.

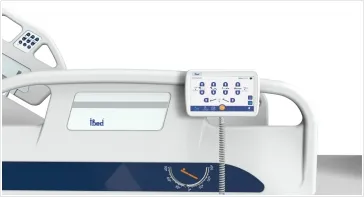

7-Inch Touch Screen: Supports English and Chinese, replaces traditional buttons for intuitive operation.

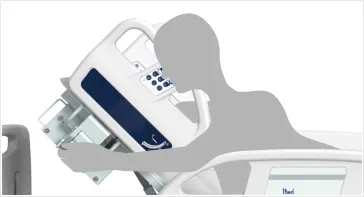

Fall Prevention: High-strength structure with gravity-locked guardrails to ensure patient safety.

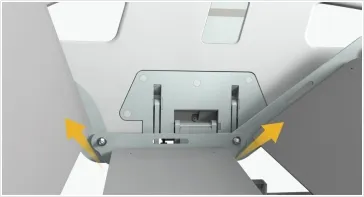

Auto-Rollback: Reduces patient displacement and shear force during body position adjustments.

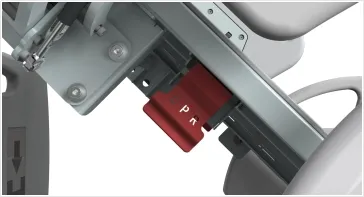

Manual CPR: Dual-sided levers with damping devices for safe, slow backrest descent.

Accessories & Quality Control

Linak Motors: High-stability motors from Denmark (UL/ROHS/EN Standard).
X-Ray Translucent: Mattress platform suitable for lung examinations and C-arm compatibility.

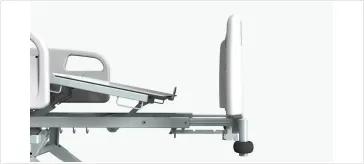

Bed Extension: Adjustable length up to 200mm to accommodate patient height.
Patient Restraint: 12 fixation sites located at chest, wrist, and ankle points.
Night Light: Under-bed illumination to assist patients at night.

Technical Parameters

Parameter	Specification
Overall size (LWH)	22001035(415-785) mm
Mattress Platform	2000*811 mm
Safe Working Load	230 kg
Backrest Adjustment	0-70°
Knee Adjustment	0-45°
Trendelenburg / Antitrendelenburg	0-16°
Casters	5" Central Locking
Bumper Wheel	φ74mm Wall Bumper

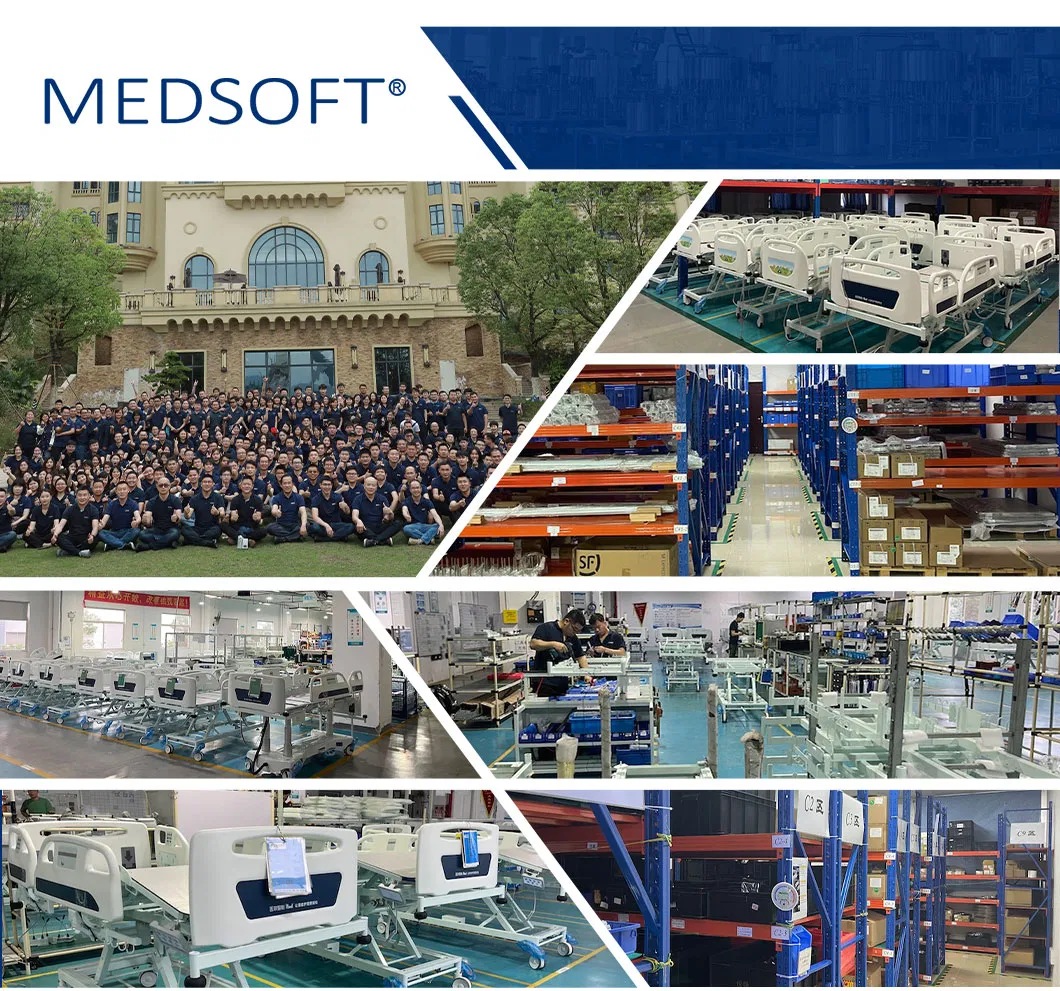

Professional Manufacturing

🏭

Specializing in Critical Care Nursing, Respiratory Support, and Information Systems. Utilizing robotic welding and Baosteel materials to ensure 360° smooth welding and durability. Products meet IEC60601 Safety Standards.
