iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

1 / 5

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

iBed PLR 3 Pro Hospital Bed with Weight Trend Monitoring

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Hospital Bed Intro

Hospital Bed View

i

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Functions

Five-function

Certification

CE, ISO13485

Condition

New

Bed Size

2.35m * 1.15m * 0.78m

Controller

7-inch LCD Touch Screen

Casters

Silent Central Locking

Capacity

12,000 PCS/Year

HS Code

94029000

★

Core Features & Functions

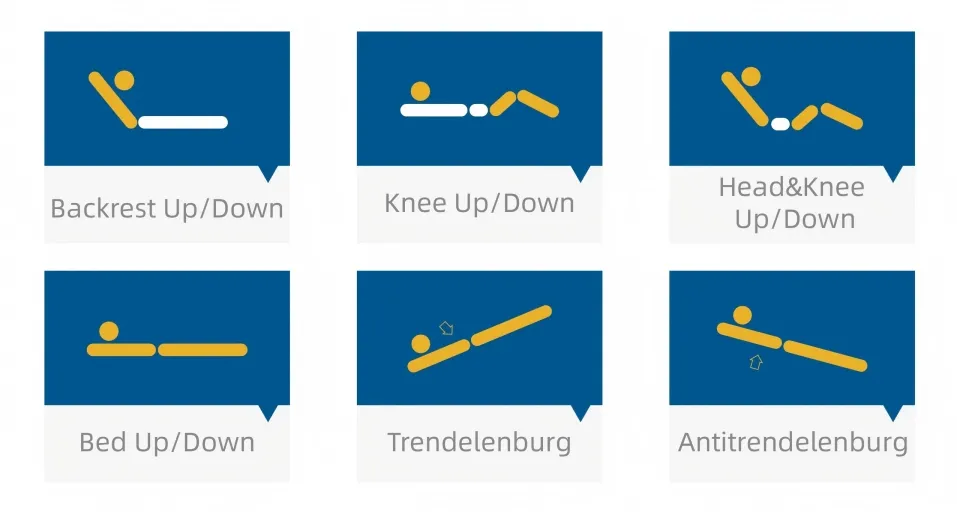

Basic Electric Functions

Electric backrest Up/Down
Electric Knee Up/Down
Electric Backrest & Knee Up/Down
Electric Bed Height Up/Down
Electric Trendelenburg & Anti-trendelenburg

Basic Functions

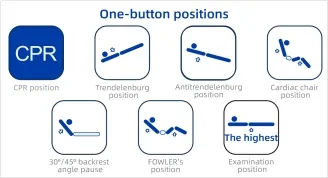

One Button Control

One-Button Control Positions

One-Button Cardiac Chair Position
One-Button Trendelenburg / Anti-trendelenburg
One-Button Semi-recumbent Position
One-Button Fowler Position
One-Button Examination & CPR Position

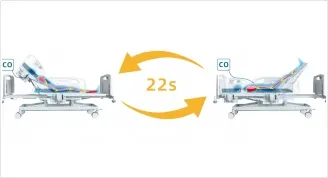

Standard PLR Position

One-button standard PLR position achieved in 22 seconds. Easily complete fluid responsive assessments to optimize patient care efficiency.

PLR Position

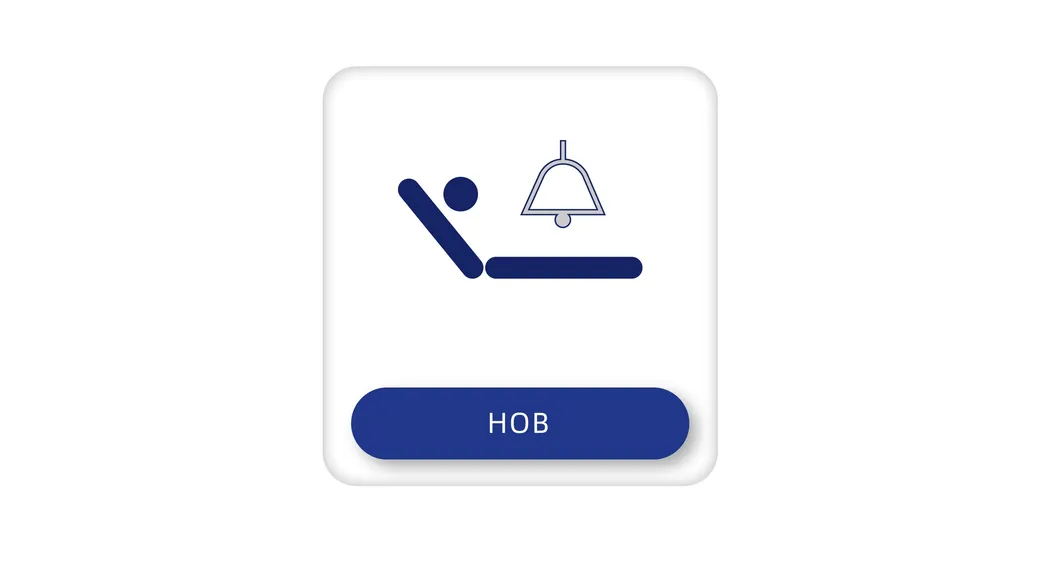

HOB Monitoring

Head of Bed (HOB) Monitoring

The bed regularly checks if the back-board angle is between 30-45°. It alerts medical staff of the status through a voice broadcast system.

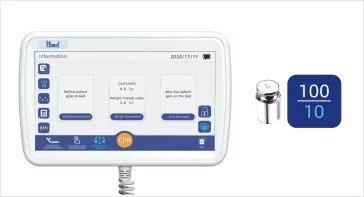

Advanced Weighing System

Integrated weighing system with 0.01Kg accuracy. Stores up to 30 measurements and displays trend charts for direct weight change monitoring.

Weighing System

⚙

Technical Parameters

Parameter	Specification
Overall Size (LWH)	2200 * 1035 * (415-785) mm
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Backrest Adjustment	0 - 70°
Knee Adjustment	0 - 45°
Trendelenburg / Anti-Trend	0 - 16°
Casters	5" Central Locking
Side Rails	HDPE with Built-in Control

✔

Quality Control & Safety

Premium Motors: Utilizes Linak motors from Denmark for durable stability (UL/ROHS/EN Standard).
High-Strength Steel: Constructed with Baosteel for superior structural integrity.
Smart Interface: 7-inch touch screen supporting English and Chinese with user manual storage.
Auto-Rollback: Reduces patient displacement and shear force during positioning.
Safety Standards: Complies with IEC60601 Safety Standard functions.
Durable Coating: Epoxy painting with anti-bacterial testing (ASTM), resistant to 50kg impact.

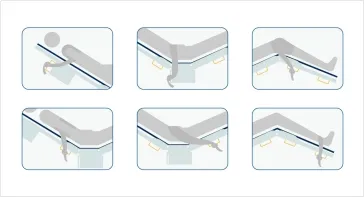

Restraint Points

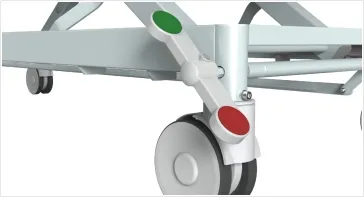

Locking System

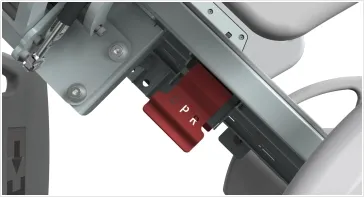

Manual CPR

?

Frequently Asked Questions

Q1. Can I get a sample?

Yes, samples are available for evaluation.

Q2. Can I use my own logo or design on the product?

Yes, OEM and ODM services are available to support your branding needs.

Q3. Do you have a professional manufacturing facility?

Yes, we are a professional manufacturer with over 17 years of experience and dedicated production lines.

Q4. What is the production capacity?

Our facility has a production capacity of approximately 1,000 beds per month (12,000 per year).

Q5. When will the goods be delivered?

Standard products in stock are typically shipped within 7 days.

Q6. What certifications do these beds have?

Our hospital beds are fully certified with CE and ISO13485 standards, meeting international medical safety requirements.
