iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

1 / 5

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

iBed PLR 3 Pro Motorized Weighing Function Hospital Bed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

iBed PLR 3 Pro

Using Ambient

Hospital

Numbers of Function

Five-function

Certification

CE, ISO13485

Condition

New

L* W *H

2.35m*1.15m*0.78m

Controller

LCD

Castor

Silent Casters

HS Code

9402900

Production Capacity

12000 PCS/Year

Hospital Bed Overview

Bed Functions

Product Description & Functions

Basic Motorized Functions

Electric backrest Up/Down
Electric Knee Up/Down
Electric Backrest & Knee Up/Down
Electric Bed Up/Down
Electric Trendelenburg & Anti-trendelenburg

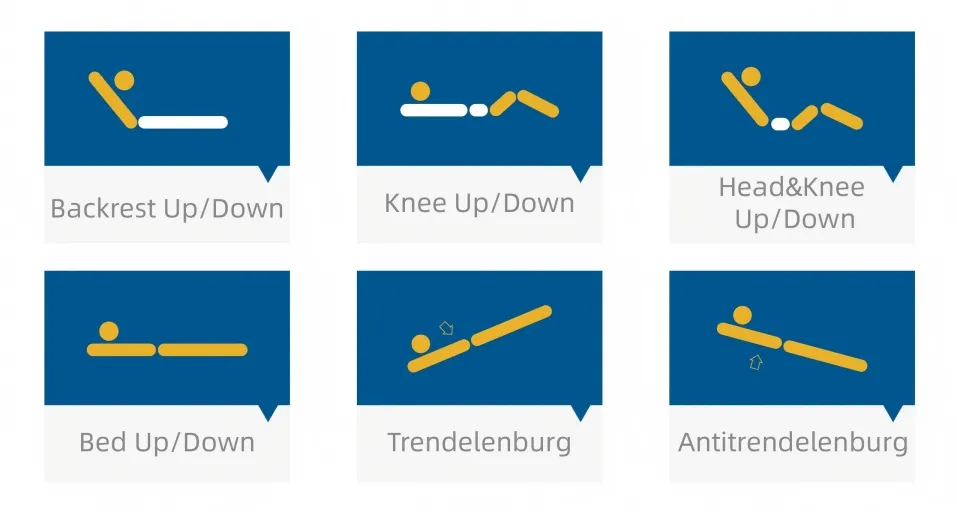

Basic Functions

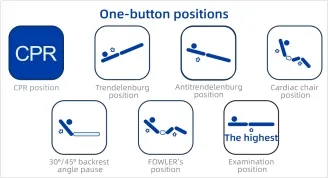

Control Positions

One-button Control Positions

One-Button Cardiac Chair Position
One-Button Trendelenburg / Antitrendelenburg
One-Button Semi-recumbent Position
One-Button Fowler Position
One-Button Examination & CPR Position

Advanced Patient Care

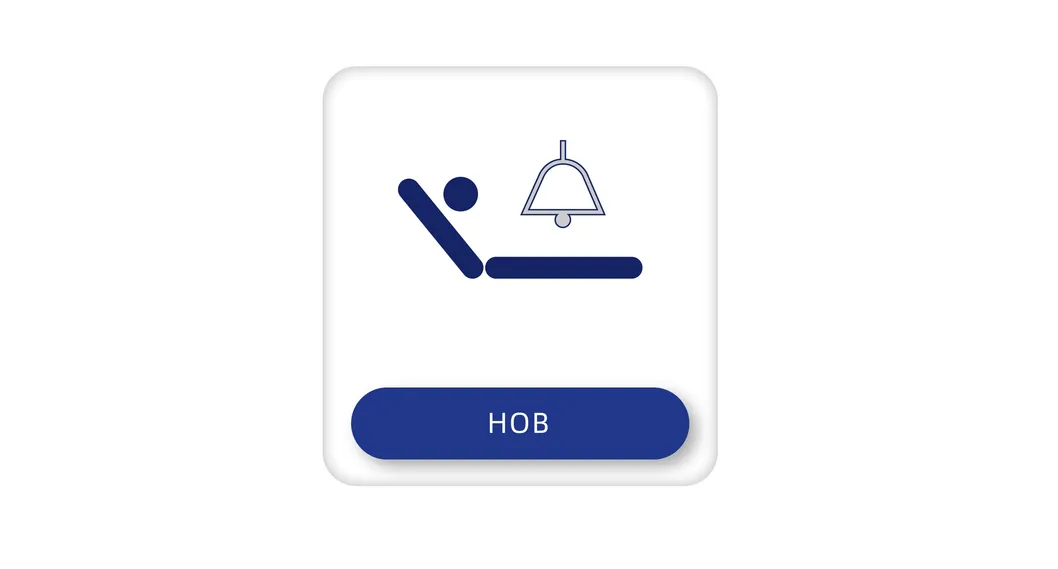

HOB Monitoring: Regularly checks back-board angle (30-45°) and alerts staff via voice broadcast.

Auto-Rollback: Reduces patient displacement and shear force during body position adjustments.

PLR Position: Standard PLR position achieved in 22 seconds for fluid responsive assessments.

Advanced Care

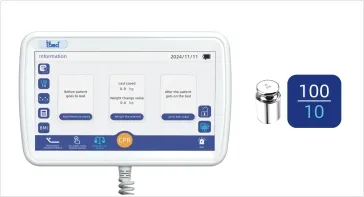

Weighing System

Integrated Weighing System

0.01Kg accuracy
Data storage for up to 30 measurements
Weight trend charts for caregivers to monitor changes directly
Patient movement alert system

Technical Parameters

Parameter	Details
Overall Size (LWH)	22001035(415-785) mm
Mattress Platform	2000 * 811 mm
Safe Working Load	230 kg
Head Up/Down Angle	0 - 70°
Knee Up/Down Angle	0 - 45°
Trendelenburg / Antitrendelenburg	0 - 16°
Linear Motors	5 Pcs (Denmark Linak)
Castors	5" Central Locking (4 Pcs)
Bed Ends	HDPE, One Step Removable
IV Pole	Stainless Steel, 15kg Capacity

Quality Control & Design

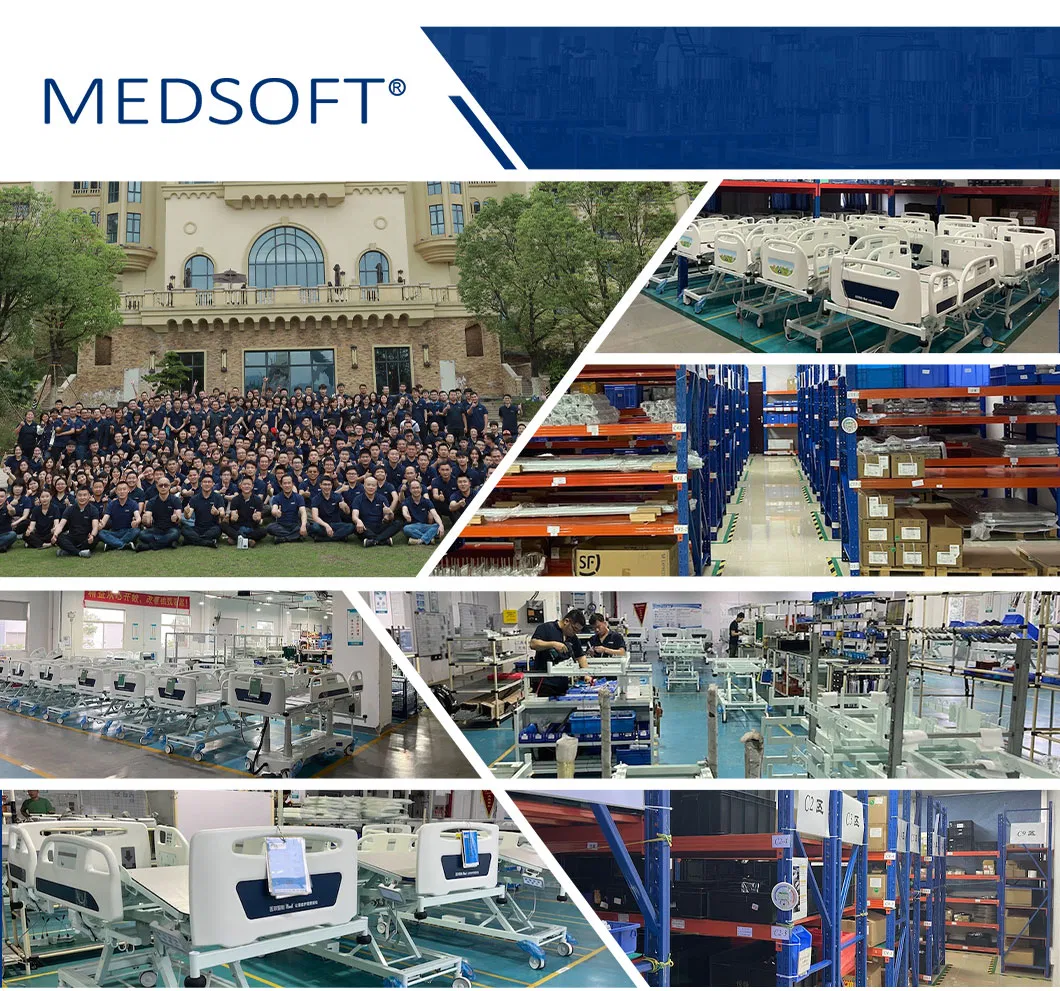

Quality Control

Manufacturing

High-strength HDPE side rails with built-in controllers
X-Ray Translucent Mattress Platform
Dual-sided Manual CPR levers with damping device
360° full smooth robotic welding
Epoxy painting with anti-bacterial ASTM testing
7-inch multilingual touch screen
Night light for patient safety
12 patient restraint points (chest, wrist, ankle)

Frequently Asked Questions

Can I get a sample of the iBed PLR 3 Pro?

Yes, samples are available for quality evaluation.

Do you support OEM/ODM designs or custom logos?

Yes, we support custom logos and designs based on your specific clinical requirements.

Are you a professional manufacturer?

Yes, we are a professional manufacturer with over 17 years of experience in medical devices.

What is the monthly production capacity for these beds?

Our current production capacity is approximately 1,000 hospital beds per month.

What is the typical delivery timeframe?

Standard stock products are typically shipped within 7 days.

Which motors are used in the electric system?

We use high-quality Linak motors from Denmark to ensure durable stability and safety (UL/ROHS/EN standard).
