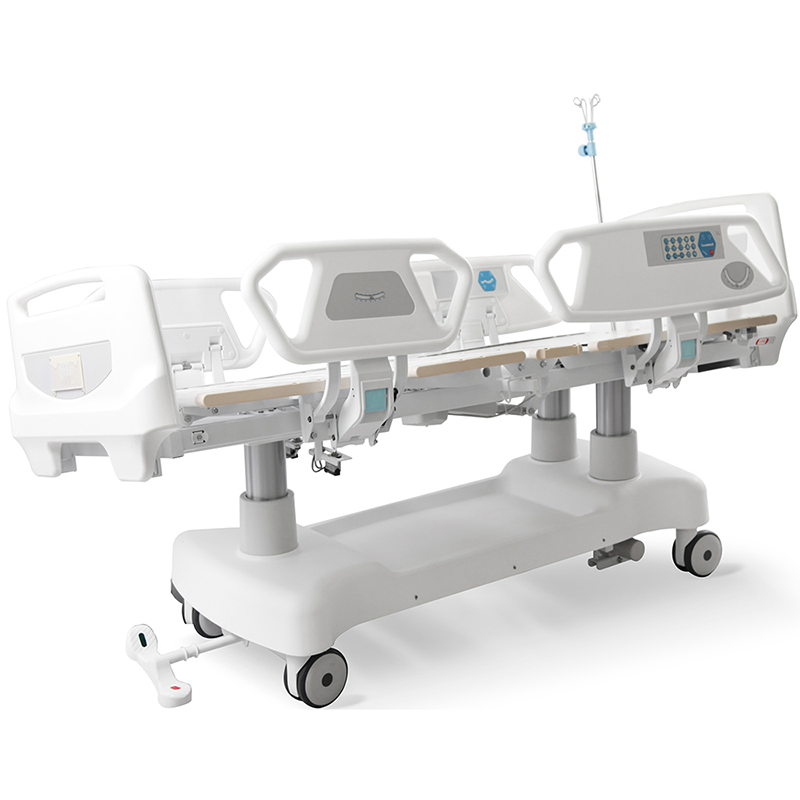

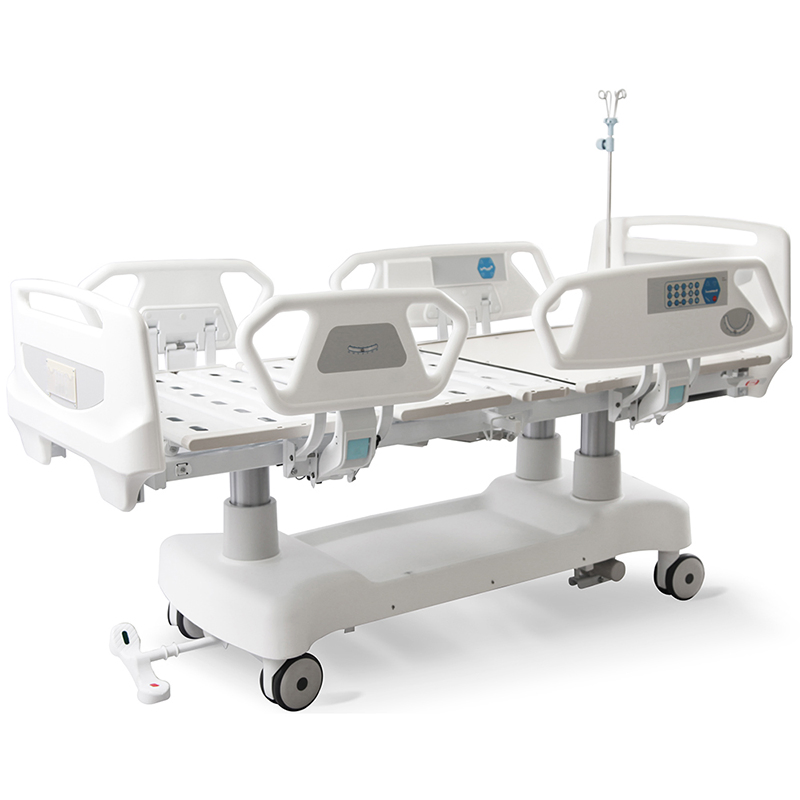

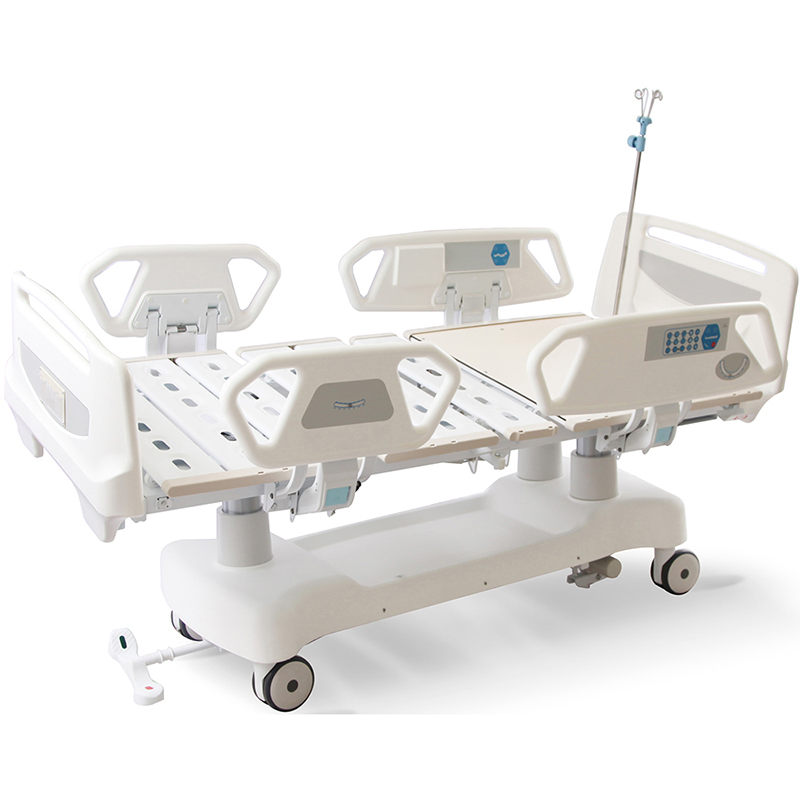

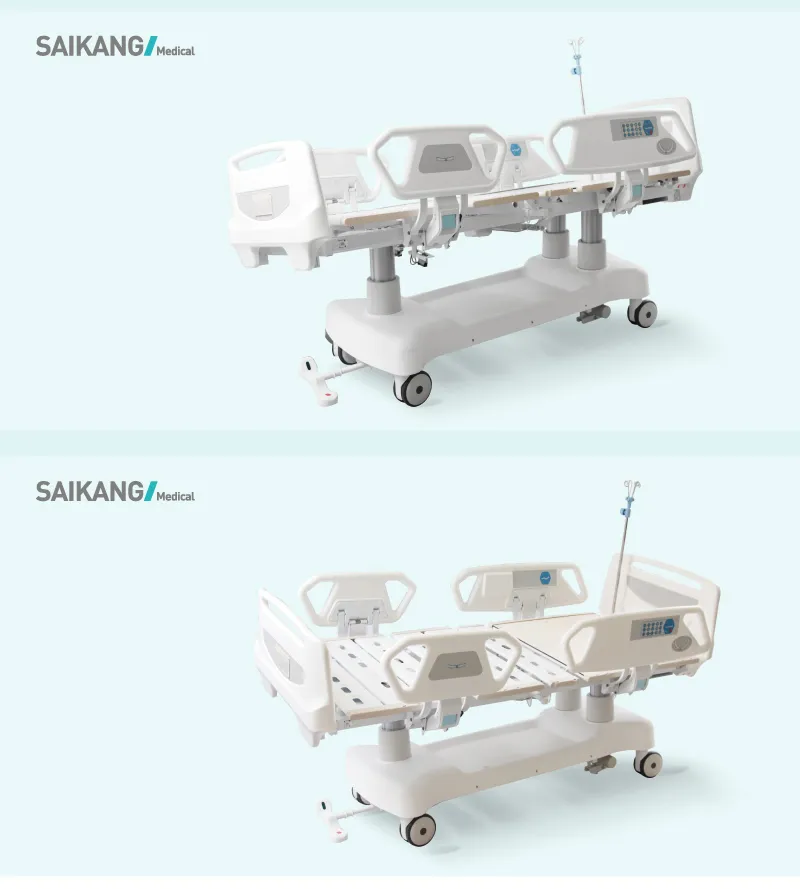

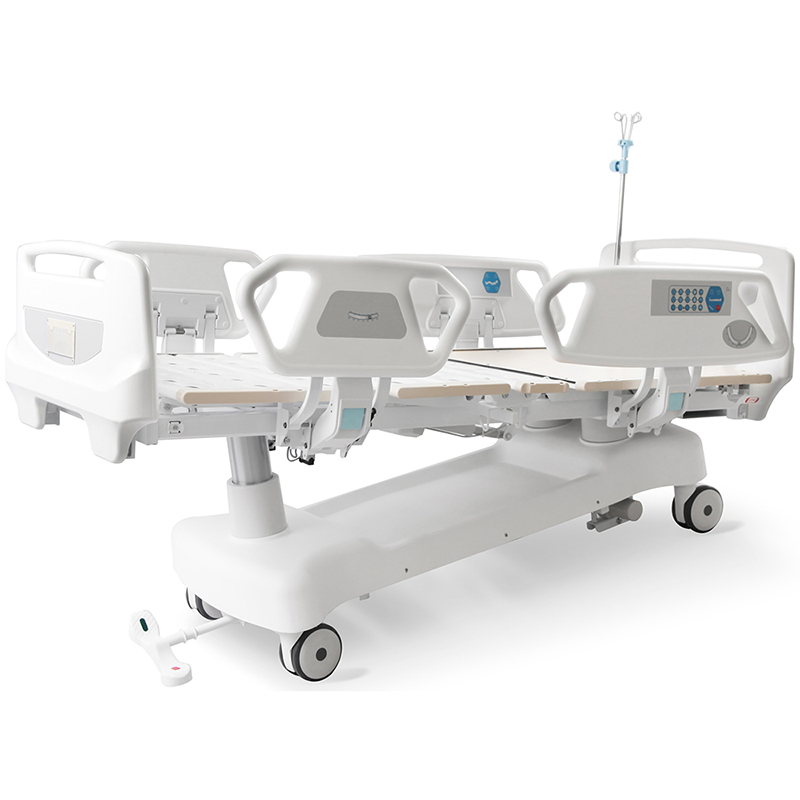

Sk002-9 Metal Multifunctions Folding Bed

1 / 5

Sk002-9 Metal Multifunctions Folding Bed

Customization:	Available
Material:	Metal
Type:	Electric Bed

Send Inquiry

Product Description

Basic Specifications

Model NO.

SK002-9

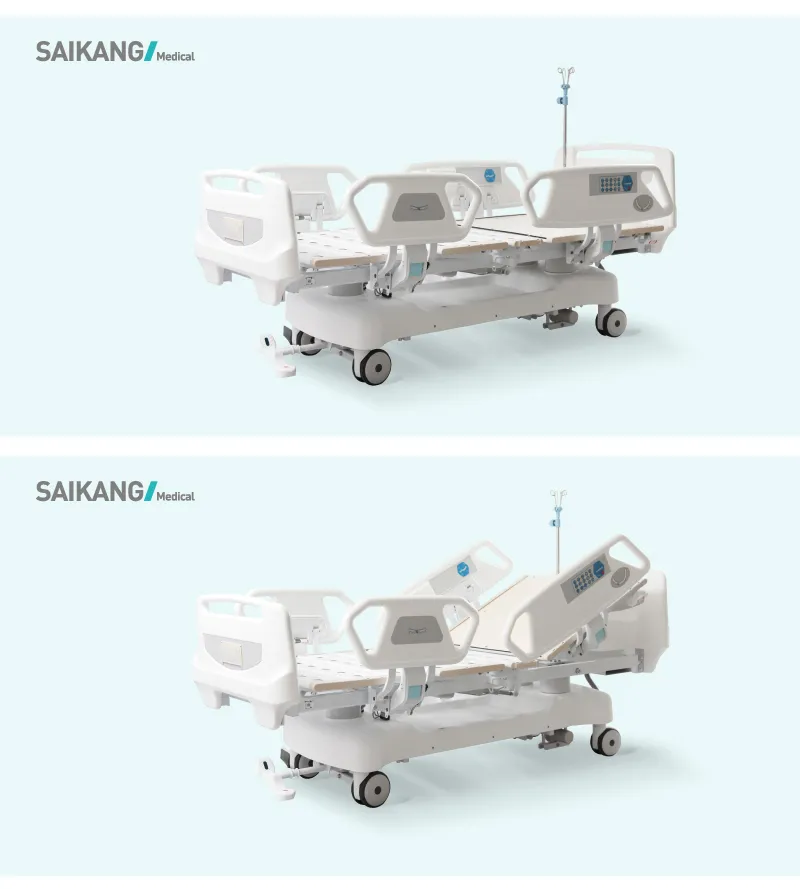

Folded

Unfolded

Using Ambient

Hospital & Home

Functions

Five-function

Certification

CE, FDA, ISO13485

Condition

New

Color

Blue, Green, Wood Color, White

Sample/OEM

Available

Service

Lifetime

Safe Working Load

250kg

MOQ

1PC

Specification

2130*1050*570-750mm

Production Capacity

30000PCS/Year

★

Product Description

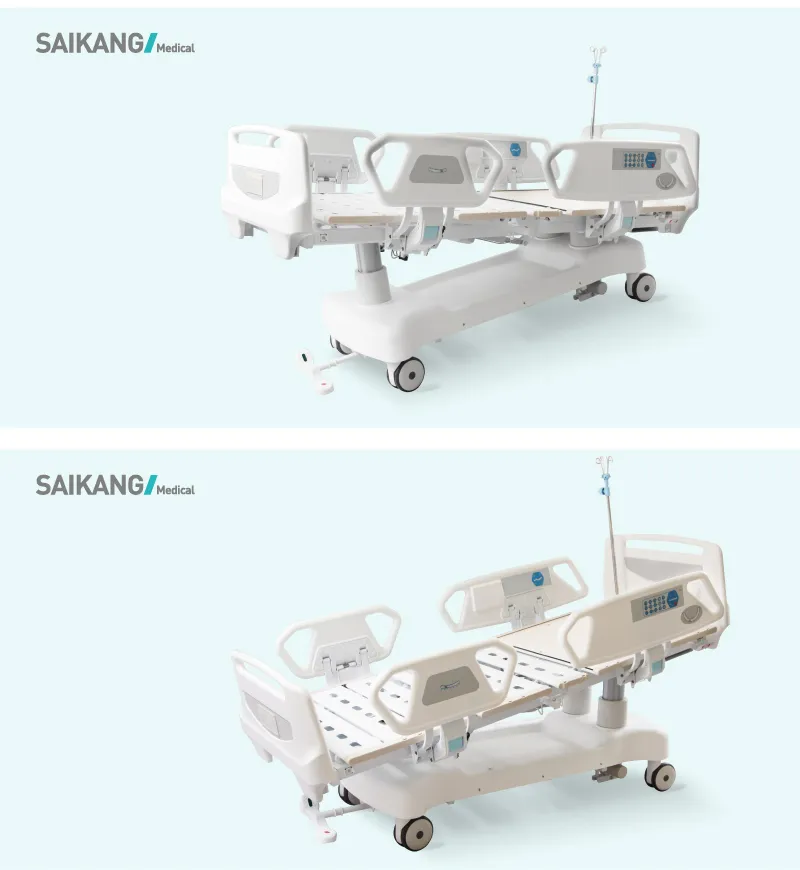

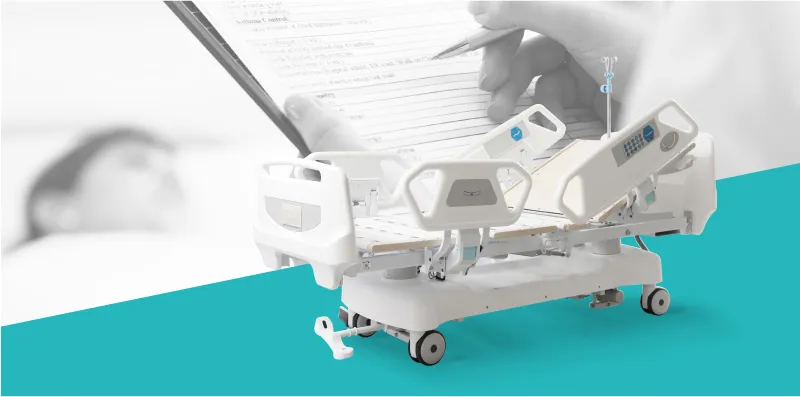

SK002-9 Metal Multifunctions Folding Bed

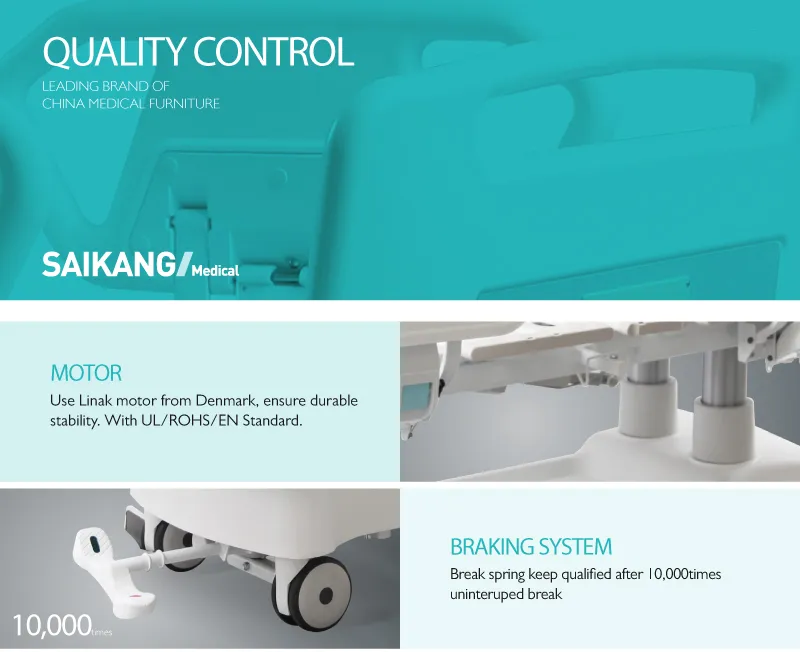

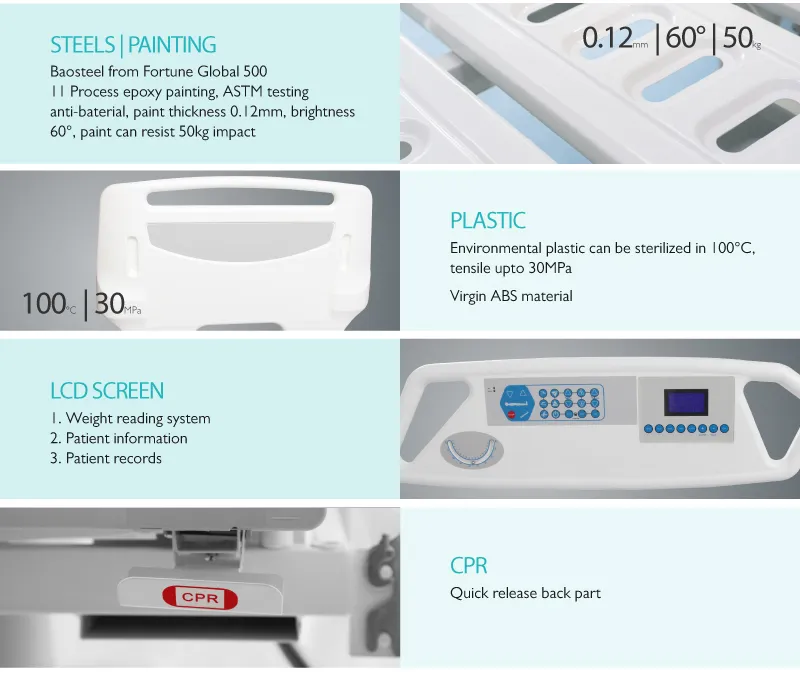

Important Quality Control

Use Linak motor from Denmark, ensure durable stability. With UL/ROHS/EN Standard.
High-quality Baosteel construction from Fortune Global 500 sources.
Environmental plastic components sterilizable at 100°C, tensile up to 30MPa.
Advanced LCD screen for weight reading, patient information, and records.
Durable break spring qualified after 10,000 times uninterrupted use.
11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm.
Panasonic Robotic ensures 360° full smooth welding.
Complies with EN60601 Safety Standard.

Advanced Functions

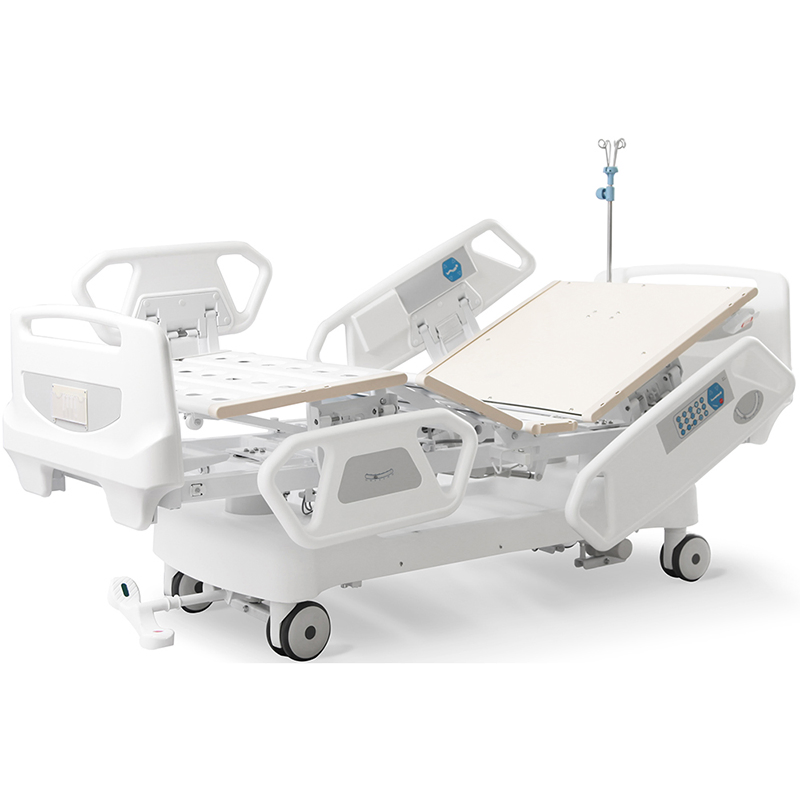

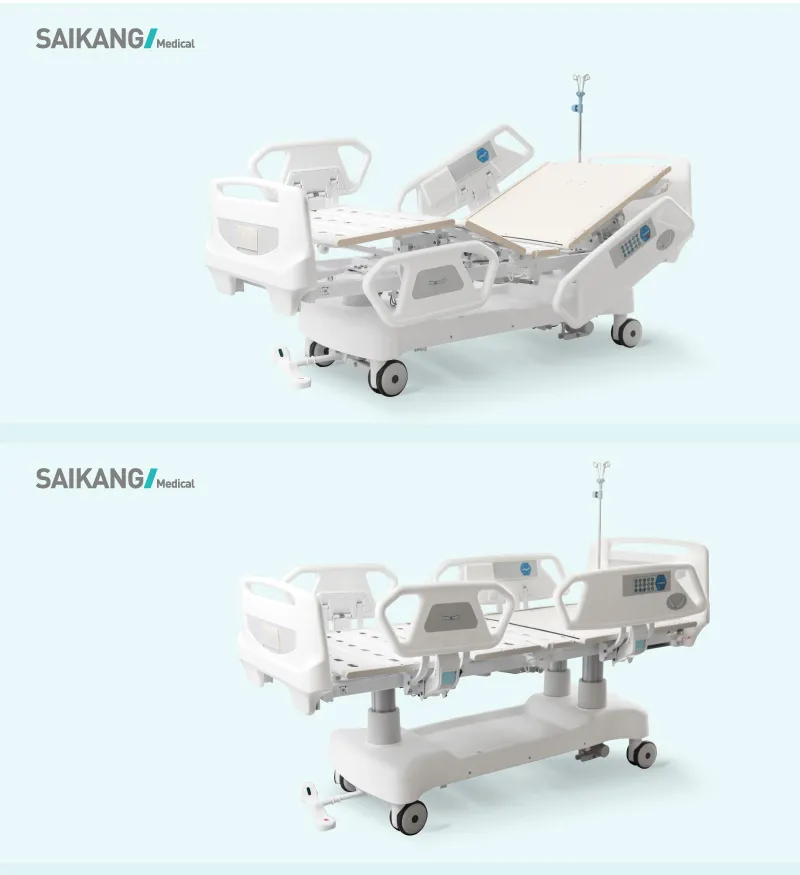

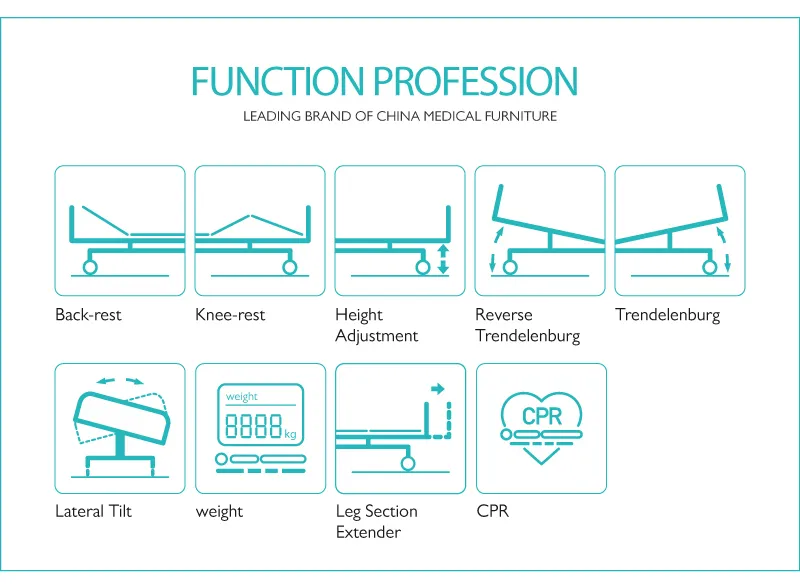

7 Core Functions: Back-rest, Leg-rest, Height adjustment, Trendelenburg, Reversed trendelenburg, Lateral tilt.
Height adjustment range from 570-750mm, compatible with C-arm.
Integrated bed extension to adjust length for individual patient height.
Weighing system accurate to 0.01Kg with 10-time data storage.
Manual and Electric CPR quick release for backpart safety.
Dual side handles with damping device for controlled descent.
Alarm Away System for transitional rehabilitation monitoring.
Night light underneath for patient safety and nurse lock function.

⚙

Technical Parameters

External LWH	21301050570-750mm
Back-rest Adjustment	0-75°(±10°)
Knee-rest Adjustment	0-35°(±10°)
Trendelenburg	0-35°(±10°)
Reversed trendelenburg	0-10°(±5°)
Lateral tilt	0-30°(±5°)

✚

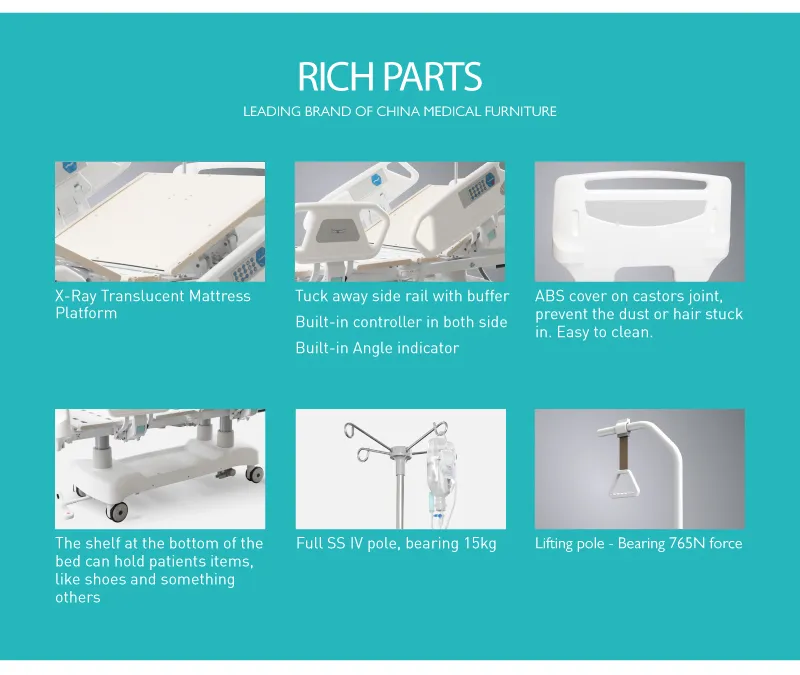

Standard Accessories

6" Double Side Secure Castors, Central Locking	4pcs
ABS Side Rail Extra Height	1set
ABS Bed Ends with Safe Lock	1set
IV Pole & Prevision	1set / 4pcs
Drainage Hook	2pcs
Angle Indicator	4pcs
Central Locking Pedal	2pcs

Frequently Asked Questions

What are the primary functions of the SK002-9 bed?

The bed features 7 main functions including back-rest lifting, leg-rest lifting, height adjustment (570-750mm), Trendelenburg, reversed Trendelenburg, and lateral tilt.

What is the safe working load for this medical bed?

The SK002-9 is designed with a safe working load of 250kg, making it suitable for a wide range of patients.

Does the bed include a weighing system?

Yes, it features an integrated weighing system accurate to 0.01Kg, with a data storage system capable of storing up to 10 records.

Is the mattress platform compatible with X-ray equipment?

Yes, the bed is equipped with an X-Ray Translucent Mattress Platform, allowing for medical imaging without moving the patient.

What safety certifications does this product hold?

The bed meets high international standards and is certified by CE, FDA, and ISO13485, ensuring it complies with EN60601 safety requirements.

How does the CPR release work in emergency situations?

The bed provides both manual quick-release handles with damping devices and an electric one-key CPR function for immediate leveling of the backpart.
